Antlia LRGB V-series PRO Filter 50mm - 50mm Unmounted (glass only)

TheAntlia LRGB V-series PRO Filter 50mm are designed for monochrome cameras that use both CCD and CMOS sensors. Suitable sensors include KAF/KAI, Sony, GSENSE and other sensor manufacturers. This filter set is designed to approximately equalize the RGB response from monochrome sensors . The result is that you achieve 1:1:1 equalized RGB exposures with the benefit of simplified post processing and reduced dark frame library.
The Antlia LRGB V-series PRO Filter 50mm highlight both the spectral gap design between green and red filters to minimize effect of light pollution and high transmittance of useful emission lines which means it remains effective for weaker emission lines from galaxies and nebulae. The V-series filters guarantee the high transmission of the OIII band in both the B and G filters (OIII signal >95% in blue and green).
The bandwidth of the B channel is narrowed for the purpose of effectively improving the blue overflow around the star due to B channel overexposure when RGB is synthesized.
The Antlia LRGB V-series PRO Filter 50mm block the emission line around 589nm, which suppresses much of the light pollution from high pressure sodium and mercury street lamps and results in a more natural colour balance. The uniformity in substrate thickness delivers good parfocal performance across all of its narrowband filters.

Antlia LRGB V-series PRO Filter 50mm Application and Performance:

• Antlia LRGB V-series PRO Filter 50mm Designed for monochrome CCD and CMOS cameras;
• Great imaging colours for celestial objects, galaxies, star clusters and nebulae;
• Transmittance rate＞95%, high optical throughput;
• 2 sides AR coating, significant reflection and star halo reduction;
• RGB colour combine 1:1:1, resulting in well balanced RGB and LRGB images;
• Equal RGB exposures means one master dark frame;
• Parfocal across all filters in this set;
• Improved colour separation with suppression of mercury and sodium lines.

Antlia LRGB V-series PRO Filter 50mm Technical Data:

• Schott optical substrate
• 1.25”, 2” mounted, 31mm,36mm diameter (2mm+/-0.05mm)
• 50mm dia，50*50mm，65*65mm square (3mm+/-0.05mm)
• Surface Quality: 60/40 (Refer to MIL-O-13830)
• Both sides fine-optically polished to ensure accurate 1/4 wave front
• 30 arcsec parallelism
• Tave＞95%
• OD3（0.1%）@ 300-1050nm
• Multi-layer anti-reflection coating
• Single Non-glued substrate

Antlia LRGB V-series PRO Filter 50mm Filter Cell (specifications for cell mounted filters only):

• 1.25” (M28.5*0.6)，2” (M48*0.75)
• Ultra-thin filter cell to minimize vignetting by maximized possible clear aperture
• Black Anodized Finish
• Non-Fading Laser Engraving

Sizes：

• Mounted： 1.25” & 2” (2mm thickness)
• Unmounted: Diameter  31mm，Dia 36mm (2mm thickness)
• Unmounted: Diameter 50mm (3mm thickness)
• Unmounted：50*50*3mm，65*65*3mm square (3mm thickness)

Not recommended:

• Solar Observing and imaging
• Visual observation

IMPORTANT! DO NOT LOOK AT THE SUN WITH ANTLIA FILTERS.
Serious eye damage will result if you fail to observe the warning.

Antlia LRGB V-series PRO Filter 50mm In the box:

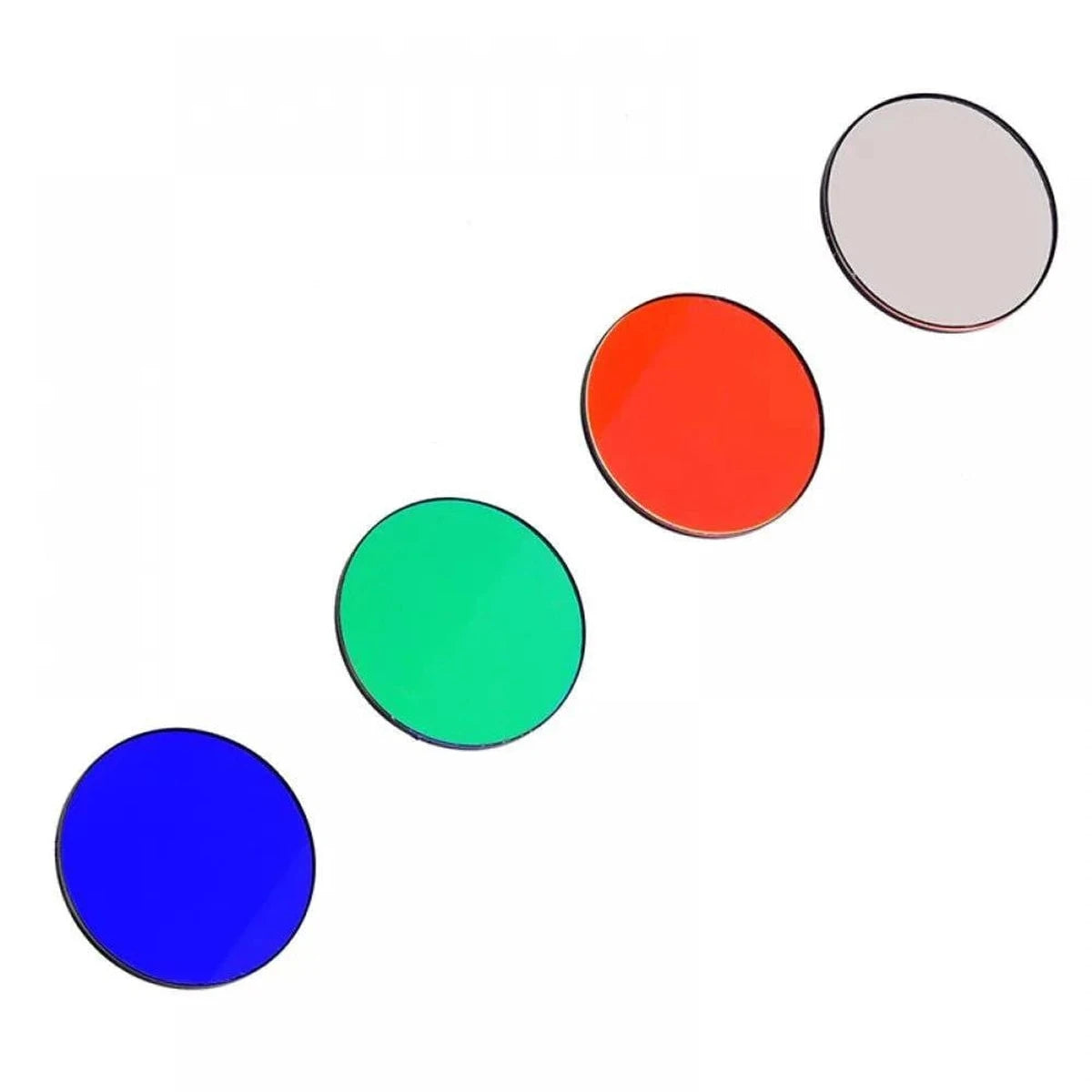

Set includes Luminance ( IR/UV blocked colourless), Red, Green and Blue filters
