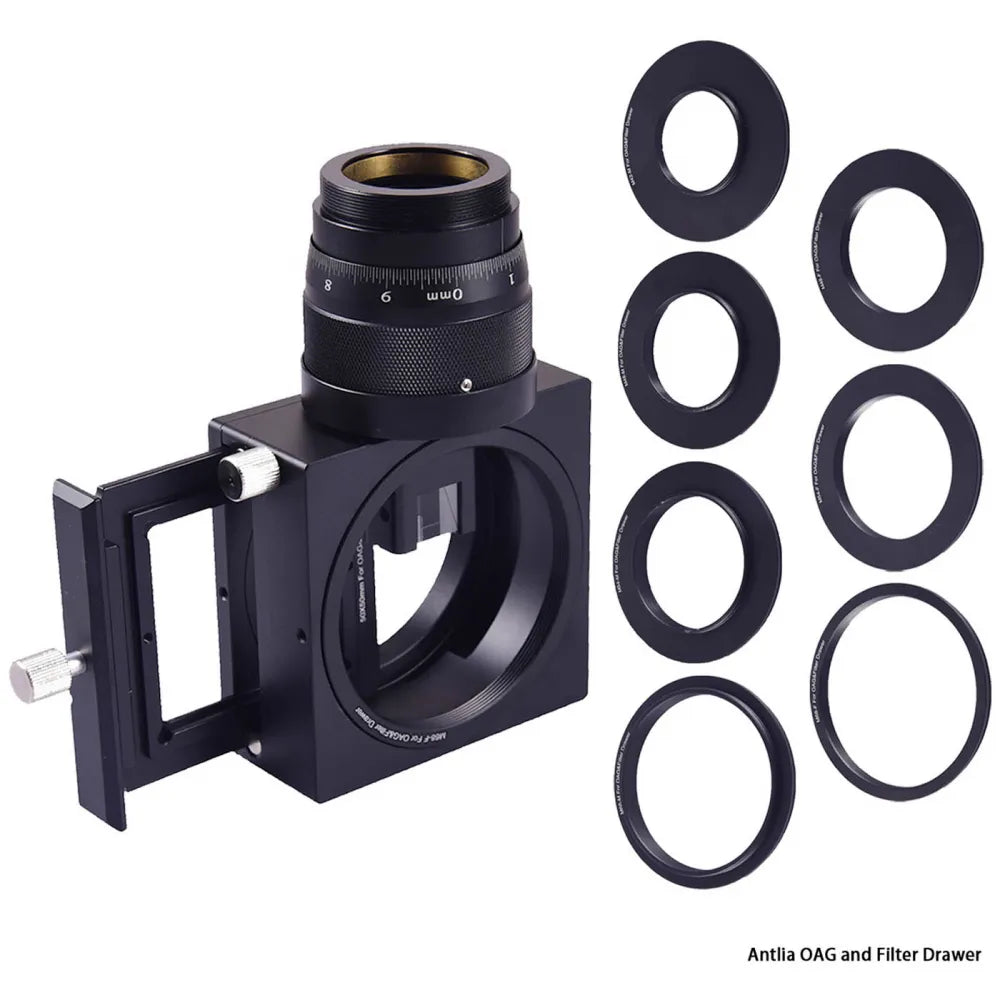

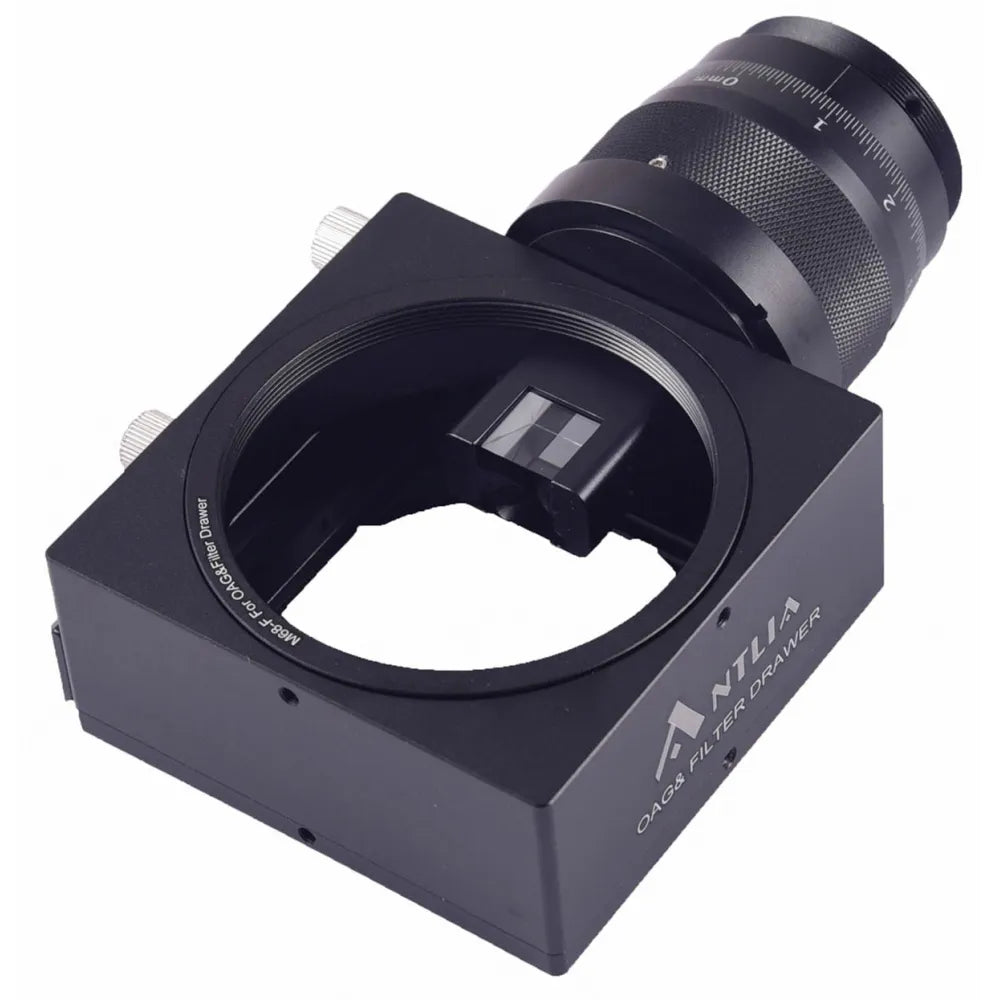

Antlia OAG and Filter Drawer Assembly

The Antlia OAG and Filter Drawer Assembly is an innovative accessory that integrates a filter drawer with an off-axis guider (OAG). It enables you to utilize your primary imaging camera and telescope for auto-guiding without the need for a heavy, additional guide scope. The OAG employs a small internal pick-off prism to reflect part of the incoming light from the telescope to an independent guide camera. Sharing the same optical path as the main imaging camera, the system effectively handles bending and tilting issues in your setup, ensuring superior tracking accuracy compared to a separate guide scope.

Features

  • Large pick-off prism (12x12mm) for compatibility with larger guiding sensors, offering a greater selection of guide stars.
  • Mono-block design with the OAG body directly connected to the filter drawer for added rigidity.
  • Supports APS-C and Full Frame sensors.
  • Total thickness (including both side adapters): 37.5mm.
  • Optimized for cameras with a 17.5mm back focus distance without requiring additional adapters.
  • CNC-machined aluminium body provides a robust guiding platform.
  • High-quality 1.25-inch helical focuser with 10mm travel range for precise guide star focus.
  • Adjustable prism height to optimize field illumination for your auto guider based on sensor size.
  • Dovetail-threaded adapters secured with grub screws for 360° rotation and alignment with telescope and camera.
  • 360° rotatable OAG for locating guide stars with ease.
  • Includes a variety of adapters for versatile configurations: M42, M48, M54, and M68 male and female (no M42 female).

Applications

The Antlia OAG and Filter Drawer Assembly is compatible with multiple instruments and brands. Its application is not limited to any specific setup, making it a versatile choice for astrophotographers.

Optional Accessories

  • Filter sliders: Dia50mm and 50x50mm.
  • Adapter rings: B-48125, B-4836, B-4831, and other configurations available separately.

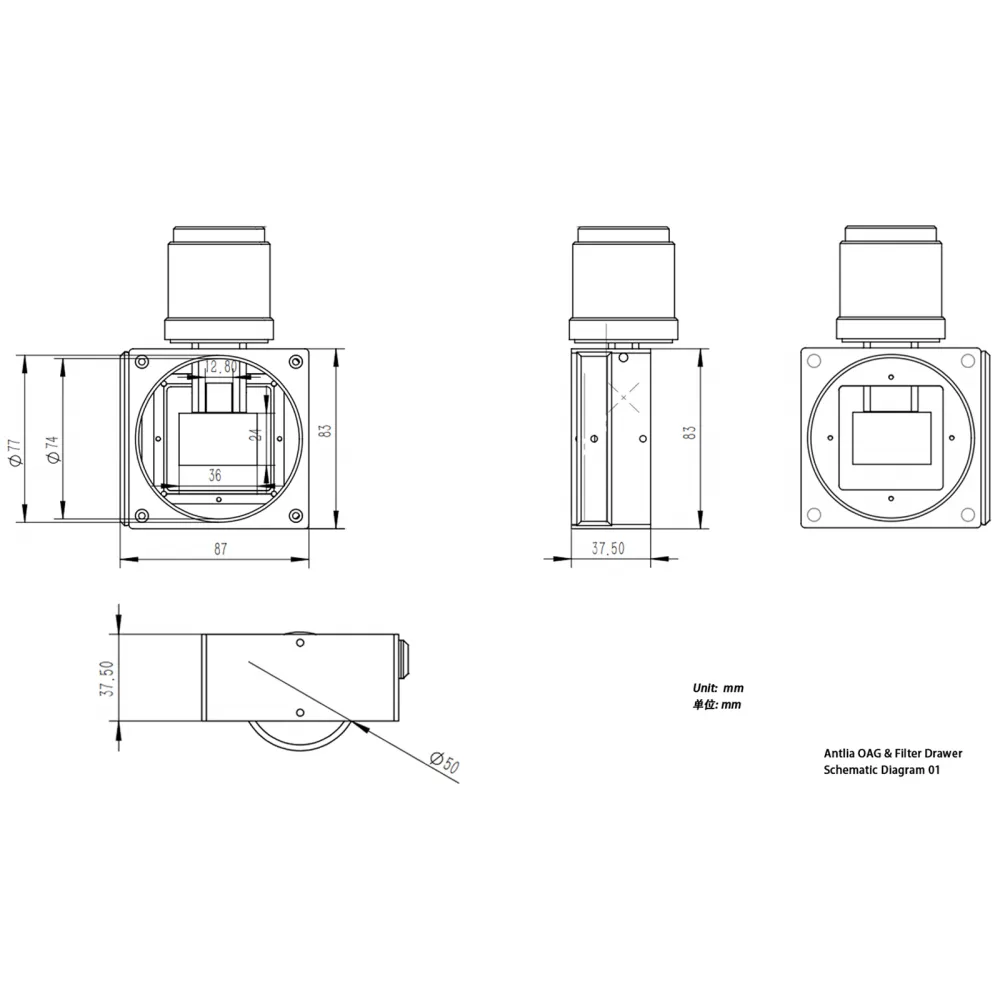

Schematic Diagram 01

Schematic Diagram 02

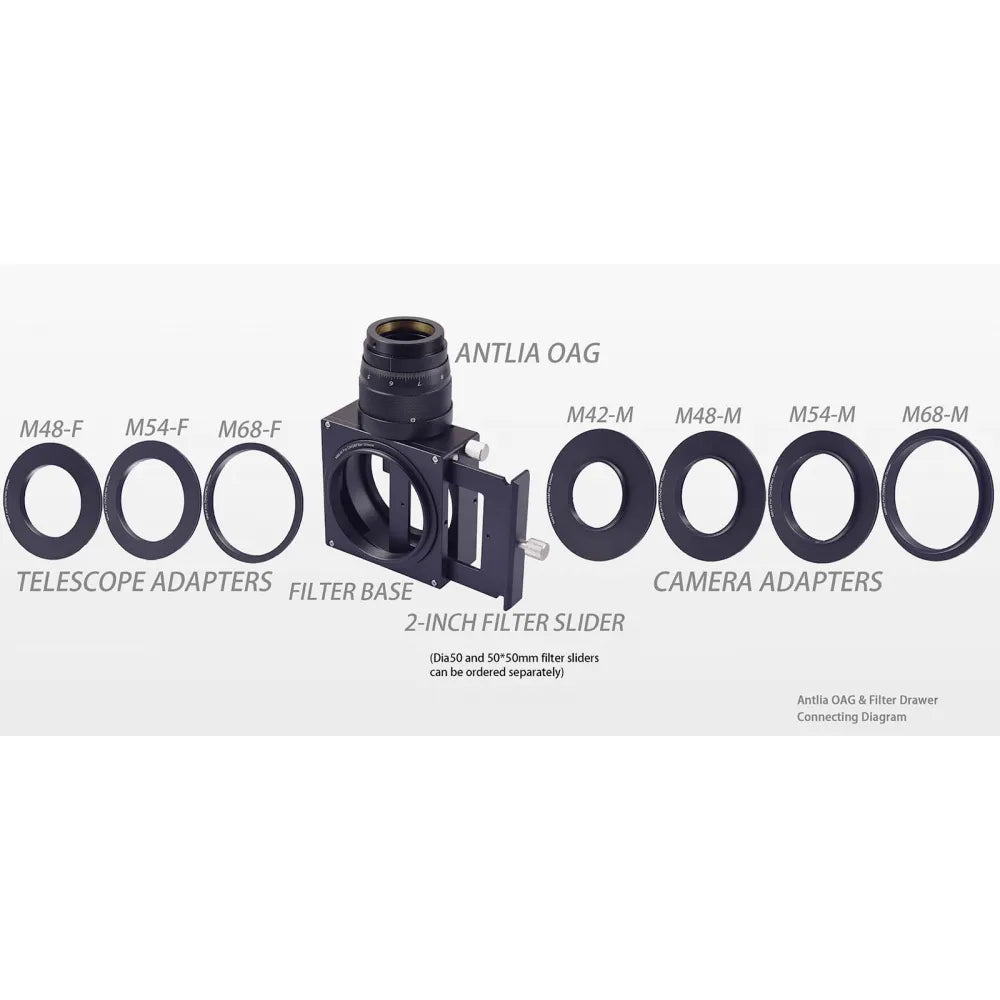

Connecting Diagram

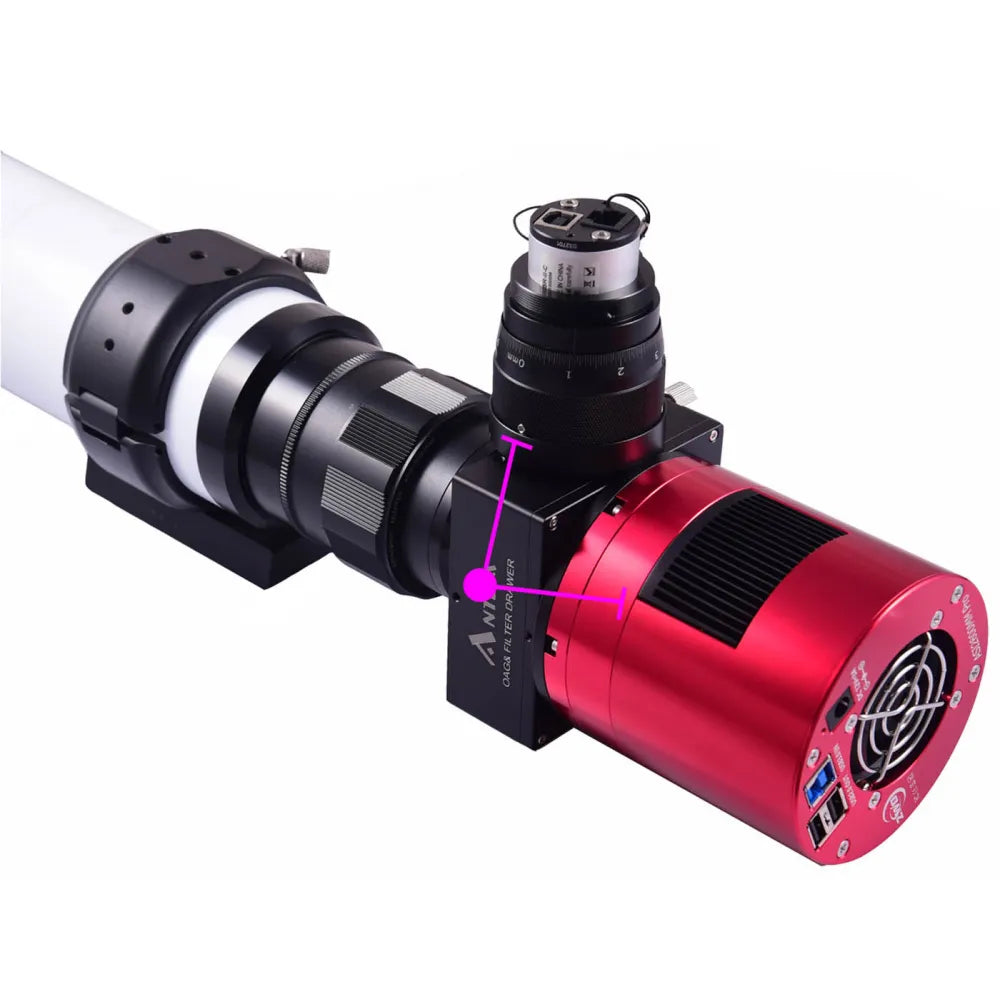

The Standard Antlia OAG and Filter Drawer Attached to Imaging Setup

The OAG requires a telescope, imaging camera, autoguider, and a mount tracking equatorially with autoguiding capability. Please refer to Schematic diagram 02 to familiarize with the Antlia OAG.

You need to ensure that the distance from the prism to the main camera sensor is exactly equal to the distance from the prism to the guider sensor.

List of Parts included in the Antlia OAG& Filter Drawer set:

1 x Off-Axis Guider Body, 1 x Helical Focuser, 1 x 2-inch (M48*0.75) Filter Slider, 1 x M42-Male Adapter, 1 x M48-Male Adapter, 1 x M48-Female Adapter,1 x M54-Female Adapter, 1 x M54-Male Adapter, 1 x M68-Female Adapter, 1 x M68-Male Adapter, 1 x M42-6mm*1 for 12.5mm BFD, 1 x M42-1.25-27mm

If you want to replace the 2-inch (M48*0.75) Filter Slider with a Dia50mm or 50x50mm, please contact us before ordering.
