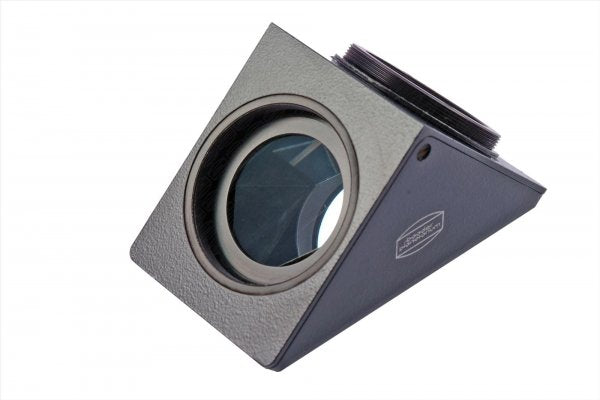

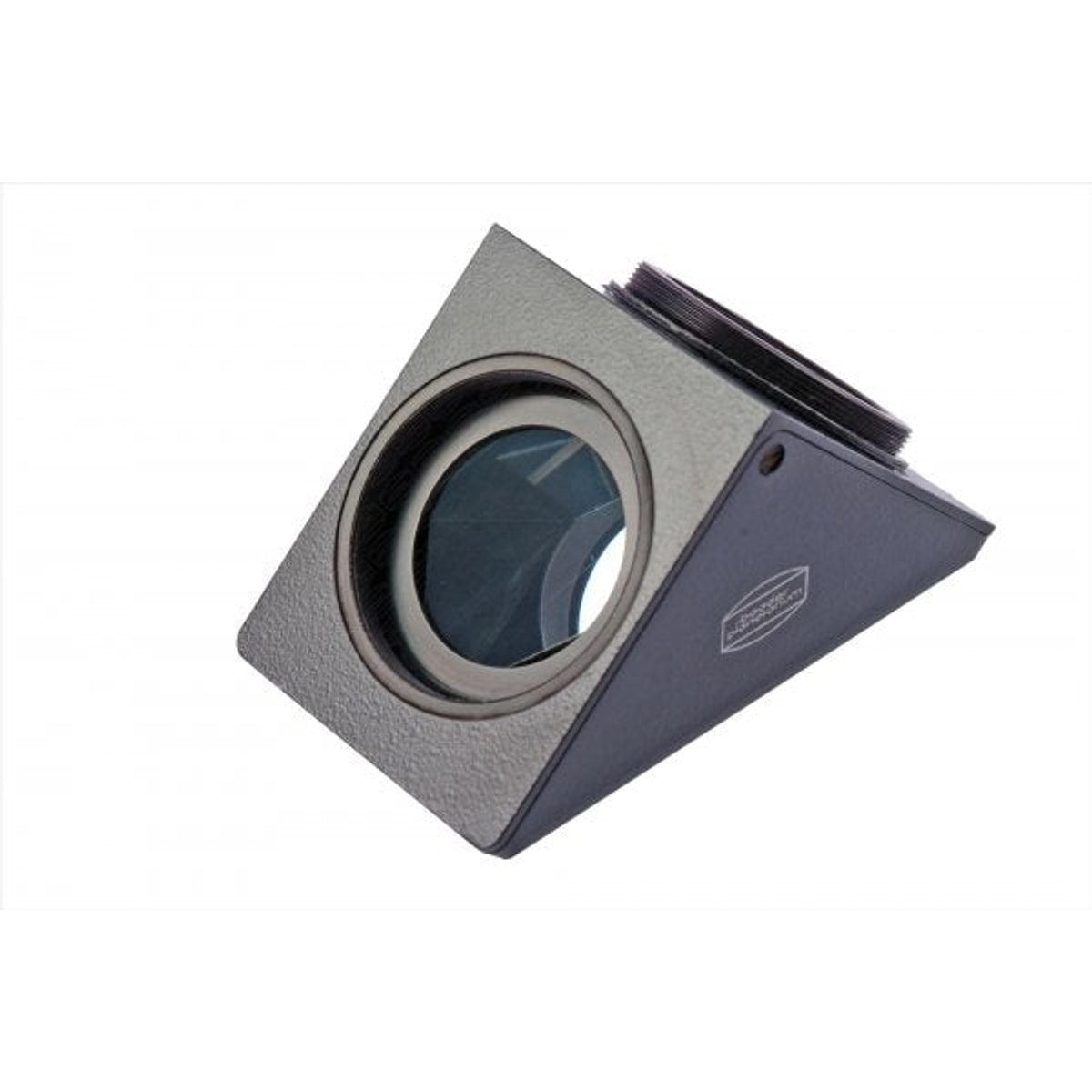

T-2/90° Baader Roof-Prism
This T-2/90° Roof-Prism by Baader is built to Zeiss standards and features T-2 system threads on both sides. Constructed from durable metal and multi-coated for superior light transmission, this compact prism is highly adaptable, making it suitable for a wide range of telescope systems. The prism provides an erect, non-reversed image, ensuring clear, accurate views.
Key Features:
- Manufactured to Zeiss standards for precision and reliability.
- Multi-coated for optimal light transmission and reduced reflection.
- Constructed from durable solid metal for long-lasting performance.
- T-2 threads on both sides, offering versatility and compatibility with a wide variety of telescope systems.
- Provides an erect image with non-reversed orientation for accurate viewing.
- Extremely short design for minimal light loss and maximum portability.
Specifications:
- Manufacturer: Baader Planetarium
- SKU (#): 2456130
- Weight: 0.209 kg
- Optical Design: Erecting Prism
- Inner Connection (Lens Sided): T-2 Thread (M42 x 0.75)
- Inner Connection (Eyepiece/Camera Sided): M34 Thread
- Outer Connection (Eyepiece/Camera Sided): T-2 Thread (M42 x 0.75)
- Reflection Surface: Sealed BBHS Coating
- AR-Coating: Phantom Coating® Group
- Image Orientation: Erect Image, Non-Reversed
- Optical Length: 47.5 mm
- Deflection Angle: 90°
- Clear Aperture (Inner Diameter): 31 mm
