Powerbox Pro v2

Terrans PowerBoxPro V2

£349.00

Free UK Shipping - Estimate US & Europe Shipping at checkout.

Quantity

Terrans PowerBoxPro V2

The Terrans PowerBoxPro V2 is a comprehensive power and USB data management solution, designed to streamline your astronomical setup and enhance remote astrophotography workflows. Tailored for private observatories, it combines advanced power control with state-of-the-art USB connectivity to simplify device management and improve reliability.

Key Features

  • Power Management: Six independent 12V DC outputs, a 3V-12V adjustable port, and a 19V NUC power port ensure robust and flexible power distribution for your devices.
  • USB Connectivity: Four USB 3.1 SuperSpeed ports and two USB 2.0 ports, each with independent switches and plug-drop controls for precise management.
  • Environmental Monitoring: Built-in sensor port enables real-time tracking of environmental factors such as humidity and temperature.
  • Smart Protection: Includes overcurrent, short-circuit, reverse current, and overheating protections to safeguard connected devices.

Streamline Your Observatory Setup

With its intelligent design, the PowerBoxPro V2 eliminates cable clutter by requiring only a single power and USB cable to connect your setup. Manage all devices via user-friendly software for remote and efficient operation.

Detailed Specifications

Power Outputs

  • Six 12V DC outputs with independent switches and a maximum current output of 8A each.
  • One 3V-12V adjustable DC output supporting up to 4A, with 0.2V adjustment increments.
  • 19V NUC power output for low-power-consumption tasks, with a 5A current limit.

USB Ports

  • Four USB 3.1 ports and two USB 2.0 ports with independent controls and physical disconnection features.
  • Each USB port supports up to 2A current with overcurrent and short-circuit protections.

Environmental Features

  • Real-time voltage, current, and power monitoring via software.
  • Environmental sensor port for humidity and temperature tracking.

Important Notes

  • Avoid exposure to excessively humid environments or direct liquid intrusion, as this may damage the device and connected components.
  • Use only high-quality power supplies to prevent device malfunction.

The Terrans PowerBoxPro V2 is the ultimate power and data management device for serious astronomers, ensuring a streamlined, reliable, and safe observatory experience.

1. PowerBoxPro V2 Introduction

Designed for private observatories

Terrans PowerBoxPro V2 is a comprehensive power and USB data management device used for remote astronomical photography. Equipped with：

◾ Four USB3.1 SuperSpeed ports

◾ Two USB 2.0 ports

◾ Six 12V DC power output ports

◾ One 3V-12V DC adjustable port

◾ One 19V NUC power supply port

◾ One environmental sensor port

Supports a maximum power output of 180W, meeting the power supply needs of most users.

Terrans PowerBoxPro V2 will help you clarify device wiring, bid farewell to complex wiring, and simply connect one power cord and one USB from the outside to your entire device. You can easily manage the power supply and USB communication of all devices through software.

NOTE：

⚫ Do not expose this device to excessively humid environments for a long time, as it may cause damage to the device itself and the connected devices. Direct intrusion of any liquid may cause damage to this device and the connected devices.

⚫ Using low-quality power supplies without a brand may cause damage to this device and the connected devices.

2. Product Function

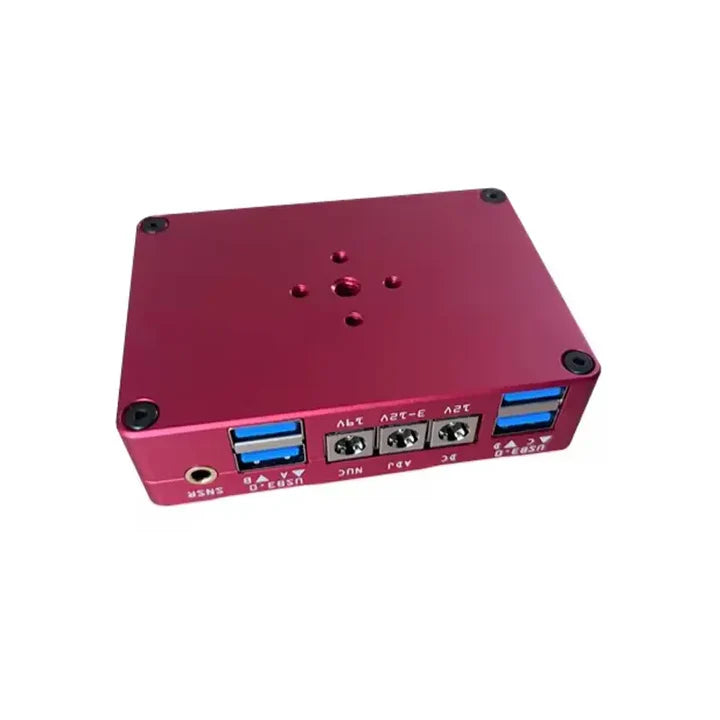

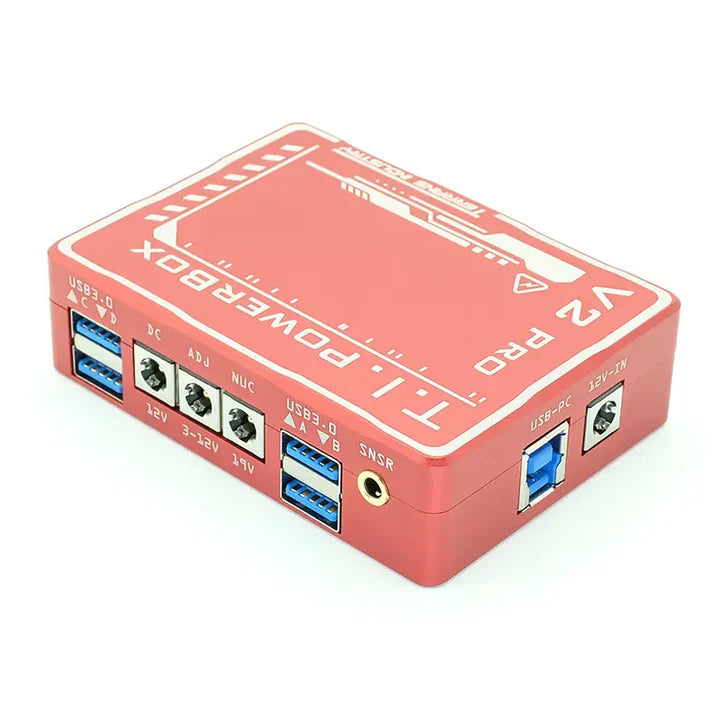

3. Ports Description

 Six 12V DC power output ports with independent switches

One 3V-12V DC adjustable port

DC power port adopts gold plating process

Terrans PowerBoxPro V2 is equipped with:

◾ Six DC 12V power output port with independent switches, each equipped with an independent power management chip to protect the safety of electrical equipment. Each port supports a maximum current output of 8A.

◾ One 3V-12V DC adjustable output port, voltage can be adjusted at 0.2V per step. This port supports a maximum output of 4A current and can provide power for devices with voltage adjustment needs such as heating belts and flat field boards. It can also be used as a 12V power supply port.

◾ One 19V NUC power supply port, which can provide power to NUC that require 19V power supply and can independently control switches. This port only supports computers to run at low power consumption, meeting the requirements of shooting tasks. It does not support running high power tasks such as post-processing on computers.

Four USB3.1 SuperSpeed ports with independent switches and plug-drop controls

Two USB 2.0 ports with independent switches and plug-drop controls

◾ Each USB port of Terrans PowerBoxPro V2 supports independent remote plug-drop controls and power switch, and each USB port can support up to 2A current output. In the remote observatory station, when the connected device shows no response or abnormality, software can be used to quickly reset the faulty device.

◾ We have equipped each USB port with an imported data management chip from Texas Instruments, which enables complete physical disconnection of USB 3.1 and USB 2.0 data lines, enabling the actual insertion and removal of USB devices.





◾ USB3.1 Type B PC port [One]

◾ 12V Power Input port [One]




4. Electrical characteristics

Input voltage

◾ Rated input voltage 12V

◾ When the input voltage is greater than 14V or less than 10V, the device will disable all power outputs and pop up an alarm

Input current

◾ Maximum input current 15A

◾ When the input voltage is 12V, the maximum output power is 180W

12V DC output

◾ Each 12V output port supports independent switches

◾ Single 12V output port can support a maximum output current of 8A,

◾ Power supply output slow start, limiting large currents or voltage surges

◾ Short circuit protection. When a 12V port experiences a short circuit, the power management chip of that port will immediately cut off the power output without affecting the normal power supply of other ports.

USB 2.0 and USB 3.1 SuperSpeed ports

◾ Each USB port supports independent power switch

◾ Each USB port supports independent control and plugging, and USB3.1 can be downgraded to USB2.0

◾ Single USB port supports a maximum output current of 2A, with overcurrent protection and short circuit protection

◾ Power supply output slow start, limiting large currents or voltage surges

◾ Under voltage protection, power supply is prohibited when the voltage is
below 4V

◾ Reverse current blocking, USB management chip supports blocking reverse current from abnormal electrical devices

◾ Overheat protection, cutting off power supply when the temperature of the power supply chip exceeds 135

3V-12V DC adjustable output

◾ Supports adjustable DC voltage output from 3V to 12V, with an adjustable
step size of 0.2V

◾ Supports up to 4A output current and overcurrent protection

◾ Overheat protection, cutting off power supply when the temperature of the
power supply chip exceeds 125 ℃

Voltage/Current/Power detection

◾ USB power/12V power/19V power three channels for real-time monitoring and
display through software

19V NUC power output

◾ Support independent power switch

◾ The output voltage is 19V, the maximum output current is 5A, and it supports
overcurrent protection and short circuit protection

◾ Power supply output slow start, limiting large currents or voltage surges

◾ Overheat protection, cutting off power supply when the temperature of the
power supply chip exceeds 150 ℃
