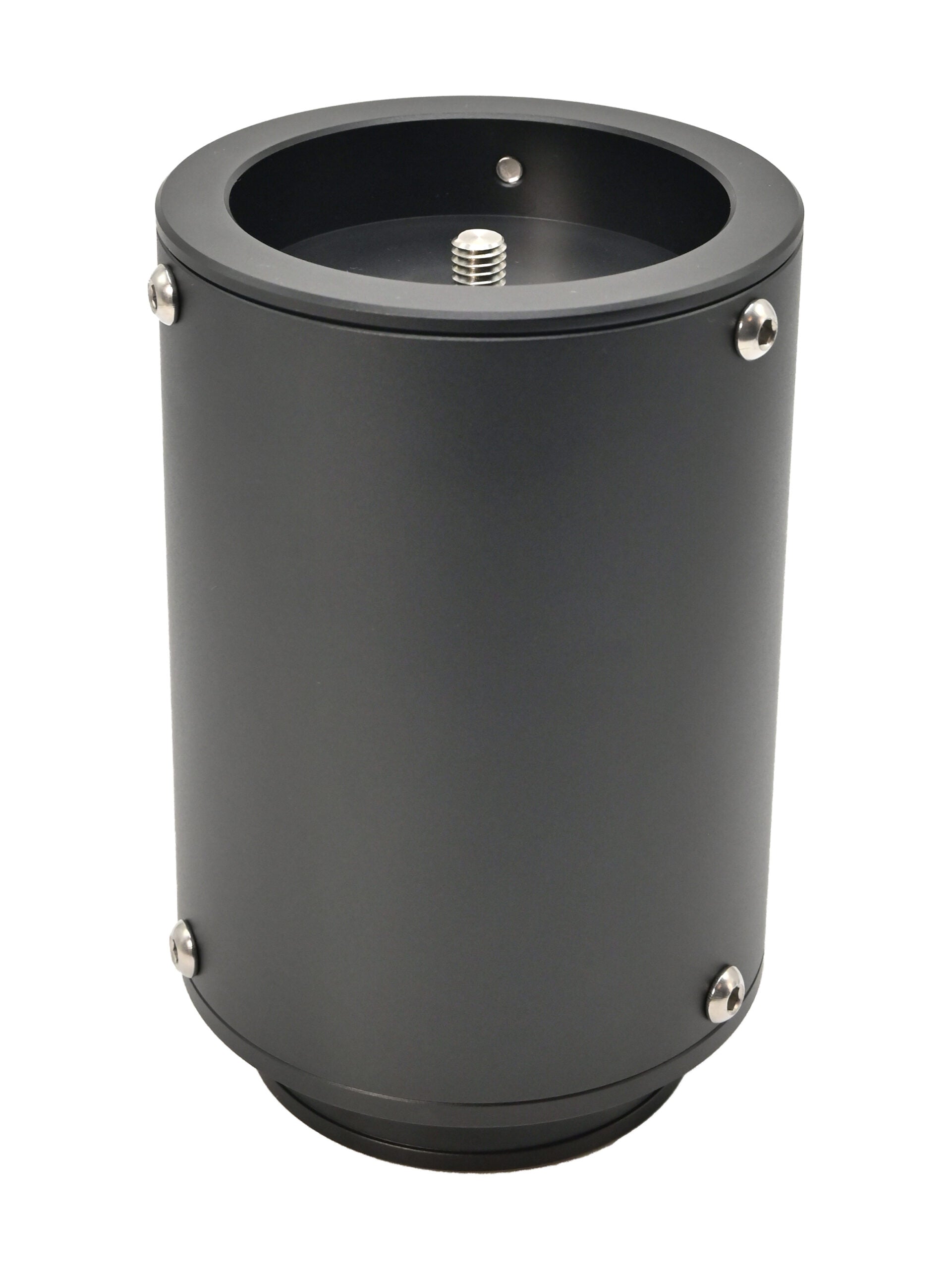

EMH150 & EMH200 Pier Extension – Enhanced Stability & Clearance
The EMH150 and EMH200 Pier Extensions are precision-engineered accessories that improve your telescope mount’s performance and safety. Designed to increase clearance between your telescope and tripod, these extensions help avoid collisions during slewing and improve usability with longer optical tubes.
Key Benefits
- Collision Prevention: Prevents contact between telescope and tripod, especially useful for long refractors or imaging setups.

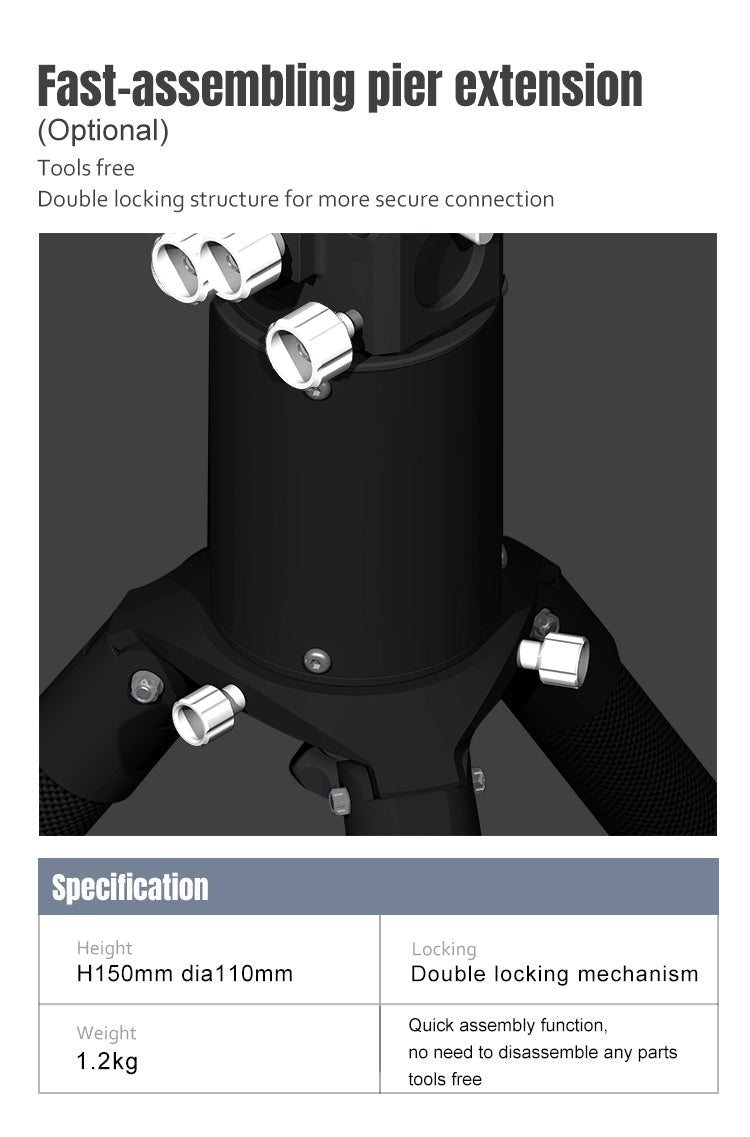

- Quick-Release Mechanism: Connects rapidly between the equatorial mount head and tripod without needing tools or disassembly.
- Patent Anti-Detachment Design: Proprietary locking system ensures your equipment stays secure even during intense movement.
- Double Locking Structure: Adds an extra layer of mechanical security for rigid, vibration-free performance.
- Universal Compatibility: Fits most 85mm bowl-style photographic tripods, expanding its usefulness across various setups.
Materials & Construction
- Material: Aerospace-grade Aluminum (AL6061) and stainless steel for strength, stability, and corrosion resistance.
Model Specifications
EMH150 Pier Extension
- Height: 150mm
- Diameter: 110mm
- Weight: 1.2kg
EMH200 Pier Extension
- Height: 200mm
- Diameter: 110mm
- Weight: ~1.6kg (est.)
Applications
Whether you're conducting astrophotography, deep-sky observations, or terrestrial imaging, the EMH series pier extensions improve operational clearance and reduce the chance of mechanical interference. Compatible with a wide range of harmonic and traditional equatorial mounts.
