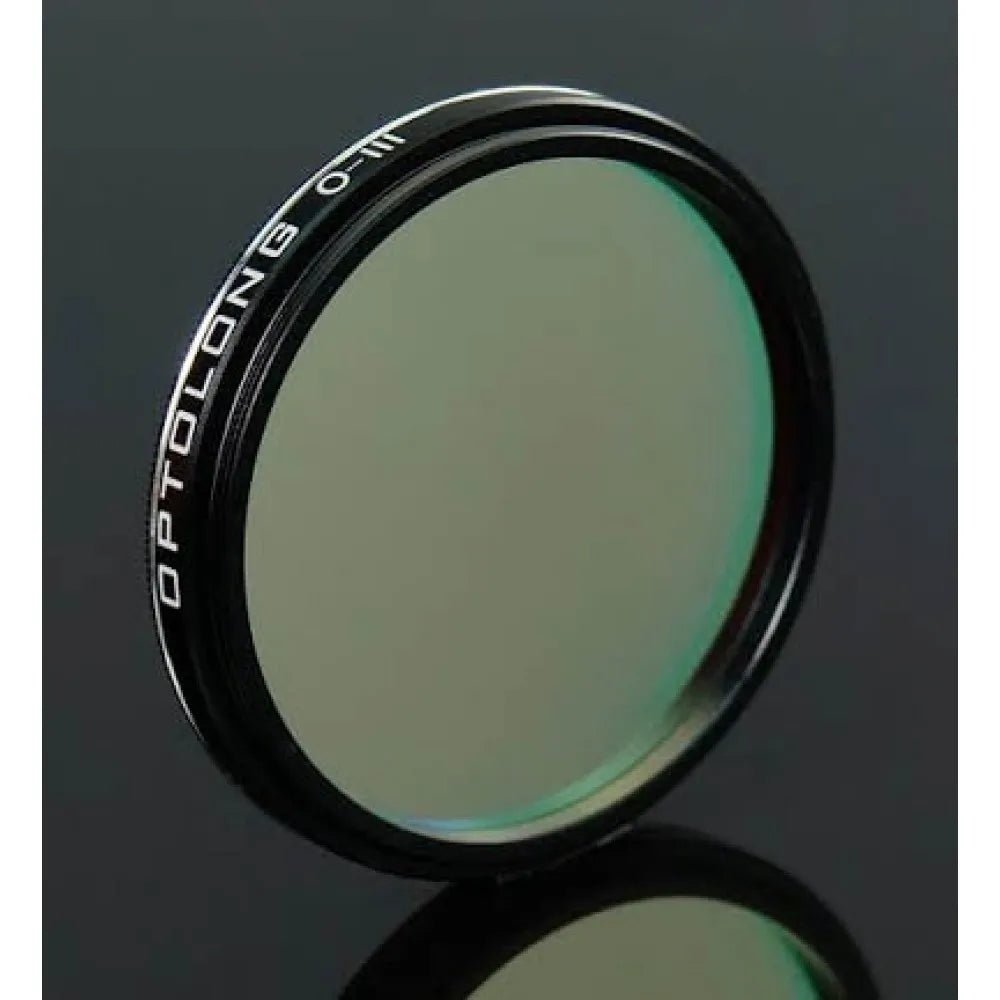

This premium Optolong Narrowband OIII filter is designed for nebula observation allowing 25nm bandwidth of light centred on a wavelength of 500nm through, which corresponds to OIII emission lines, and reducing the transmission of certain wavelengths of light, specifically those produced by artificial light including mercury vapor, and both high and low pressure sodium vapor lights and the unwanted natural light caused by neutral oxygen emission in our atmosphere (i.e. sky glow).
OIII emits 495.9nm and 500.7nm and it is a blue-green coloured filter. Many images of planetary nebulae and supernova remnants are taken only with H-alpha and OIII filters. They show great structural details, but have natural colours, looking like an RGB image.
Main Use and Performance
Suitable for visual observation on most emission nebulae, planetary nebulae and supernova remnants. Suitable for viewing on bright nebulae like M42 Orion Nebula in heavy light pollution. Use with a large aperture telescope under clear and dark viewing conditions with good seeing. Due to the fact that this filter will let through a larger amount of light around the OIII emission line, its main purpose is visual observations, however it can also be used with a small telescope for imaging deep sky objects.
Light pollution filters do not eliminate the effects of light pollution or increase the object’s brightness. In many cases, they increase the contrast between nebula and night sky, not brightening the nebula.
WARNING:
Optolong filters are not designed for solar observation. DO NOT LOOK AT THE SUN WITH ANY OPTOLONG FILTER as permanent eye damage will be the result.
Technical Data
- Schott substrate material
- Glass thickness 2.0 mm (1.25”/2”/36mm)
- Surface Quality: 60/40 (Refer to MIL-O-13830)
- Fine-optically polished to ensure accurate 1/4 wave front and < 30 seconds parallelism over both surfaces
- 90% transmission at major OIII line 495.9nm and 500.7nm
- Precision off-band blocking, specifically the major emission lines of artificial light pollution (i.e. Na 589nm, Hg 435nm and 578nm).
Filter Cell
- Ultra-thin filter cell minimise vignetting by maximising possible clear aperture (clear aperture is 26mm for 1.25” size and 45mm for 2” size)
- Aero metal Material
- Precise CNC Machining
- Sand Blasting Process
- Black Anodized Finish
- Extinction Treatment to Prevent Reflection
- Laser Engraving No Fading
Available Sizes
- Standard 1.25” & 2”
- Round 36mm Unmounted
Packaging
- Plastic PP Case
- Imported High Pressure EVA Case Lining
- Silver Cardboard Box
- High Density Sponge Carton Lining
Optical Coating
- Multi-layer anti-reflection coating
- Non-cementing optical substrate coating
- Electron-beam gun evaporation with Ion-assisted deposition coating technology for durability and resistance to scratching, as well as stability on CWL(central wavelength) no deviation affected by temperature change.
- Planetary rotation system offers precision and homogeneity of coatings ensuring high value on transmission of pass-band and Optical density of off-band. (Please note, "planetary rotation system" is a type of optical coating process and does not refer to the astronomical system describing the motion of the planets in our solar system.)
The Major Emission Lines of Nebulae: H-α 656.3nm, H-β486.1nm, OIII 495.9nm, OIII 500.7nm
The Major Emission Lines of Artificial Light Pollution: Hg 435.8nm, 546.1nm, 577nm, 578.1nm, Na 598nm, 589.6nm, 615.4nm, 616.1nm
