Player One Astronomy Ares-M Cooled Cameras: The Next Generation in Astronomy Imaging
Player One Astronomy's Player One Ares-M Pro cooled cameras are revolutionizing the world of astronomy and astrophotography. Offering exceptional performance and high-quality imagery, these devices truly are the next generation in astronomy imaging.
Ares-M: A Superior Choice for Astrophotography
The Player One Ares-M Pro is redefining what it means to capture the night sky. With advanced cooling technology, these cameras minimize noise and maximize the clarity of your astrophotography images. They provide a level of detail that leaves competing devices far behind, ensuring every snapshot of the cosmos is as awe-inspiring as it deserves to be.
Cutting-edge Cooling Technology
The cooling technology of the Player One Ares-M Pro is one of its standout features. With a cooling difference of up to -45°C, these cameras significantly reduce thermal noise. This allows for long exposure times without the fear of damaging the sensor or degrading the image quality. The camera's active cooling system uses a two-stage TEC cooling design, promising reliable performance during extended use.
Stellar Image Quality
The Player One Ares-M Pro employs a full-frame SONY IMX410 CMOS sensor. This sensor enables them to capture wide-field views of the night sky with remarkable clarity and detail. The sensor's 14-bit ADC provides a high dynamic range, capturing the faintest celestial bodies while maintaining the detail of bright objects.
Robust and User-friendly Design
The Player One Ares-M Pro is not only built to last but designed with the user in mind. The sturdy CNC machined body provides excellent protection against the elements. An integrated USB hub simplifies cable management and ensures a smooth setup process.
Broadening the Horizon of Astronomical Discovery with Ares-M
Whether you're a seasoned astrophotographer or a beginner looking to explore the cosmos, the Ares-M cooled cameras are an excellent choice. They provide unparalleled image quality, easy operability, and a robust design, making them a standout in the field of astronomy imaging.
The Ares-M line of cooled cameras from Player One Astronomy has revolutionized the way we explore and capture the cosmos. Their superior cooling technology, image quality, and user-friendly design have set a new standard in astronomy imaging. With these devices, the universe is not just closer – it's clearer, more vivid, and more awe-inspiring than ever before.
Player One Ares-M Pro Features:
Player One Ares-M Pro DSO cooled camera line is the most advanced product line in Player One history. We start the project from 2021, through a lot of modify and rebuild we made this final version. It brings our newest technology and design to everyone, we are very proud to introduce this camera line.
Player One Ares-M Pro Unboxing video:
Player One Ares-M Pro First light experience and Data:
Player One Ares-M Pro Product Description

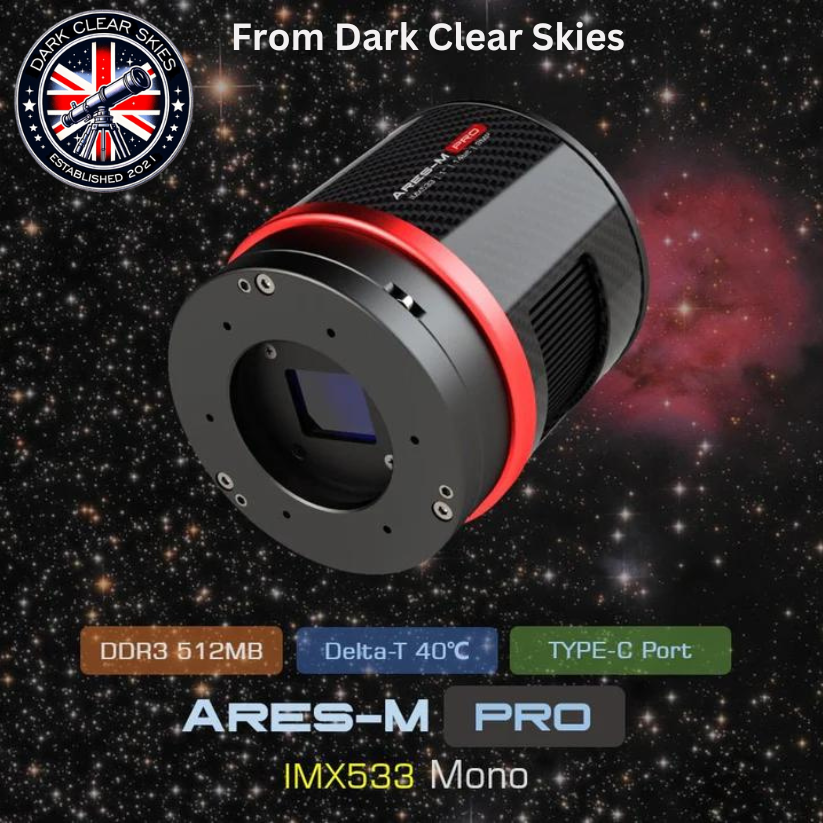

Player One Ares-M Pro is developed by Player One Astronomy, this camera is not only great for DSO imaging, and also can do solar and lunar imaging too. Ares-M Pro camera, which adopts Sony IMX533 1” square format monochrome sensor. The 3.76um pixel size accommodates a well depth of 73Ke with a total of 9MP (the resolution is 3008*3008), and the diagonal is 16mm.
STARVIS Technology
Player One Ares-M Pro (IMX533) camera based on Sony STARVIS technology, it is back-illuminated pixel technology used in CMOS image sensors.
Format
Player One Ares-M Pro camera has 1″ format, this size is quite big for imaging.
Player One Ares-M Pro Highlights
Cutting-edge Design

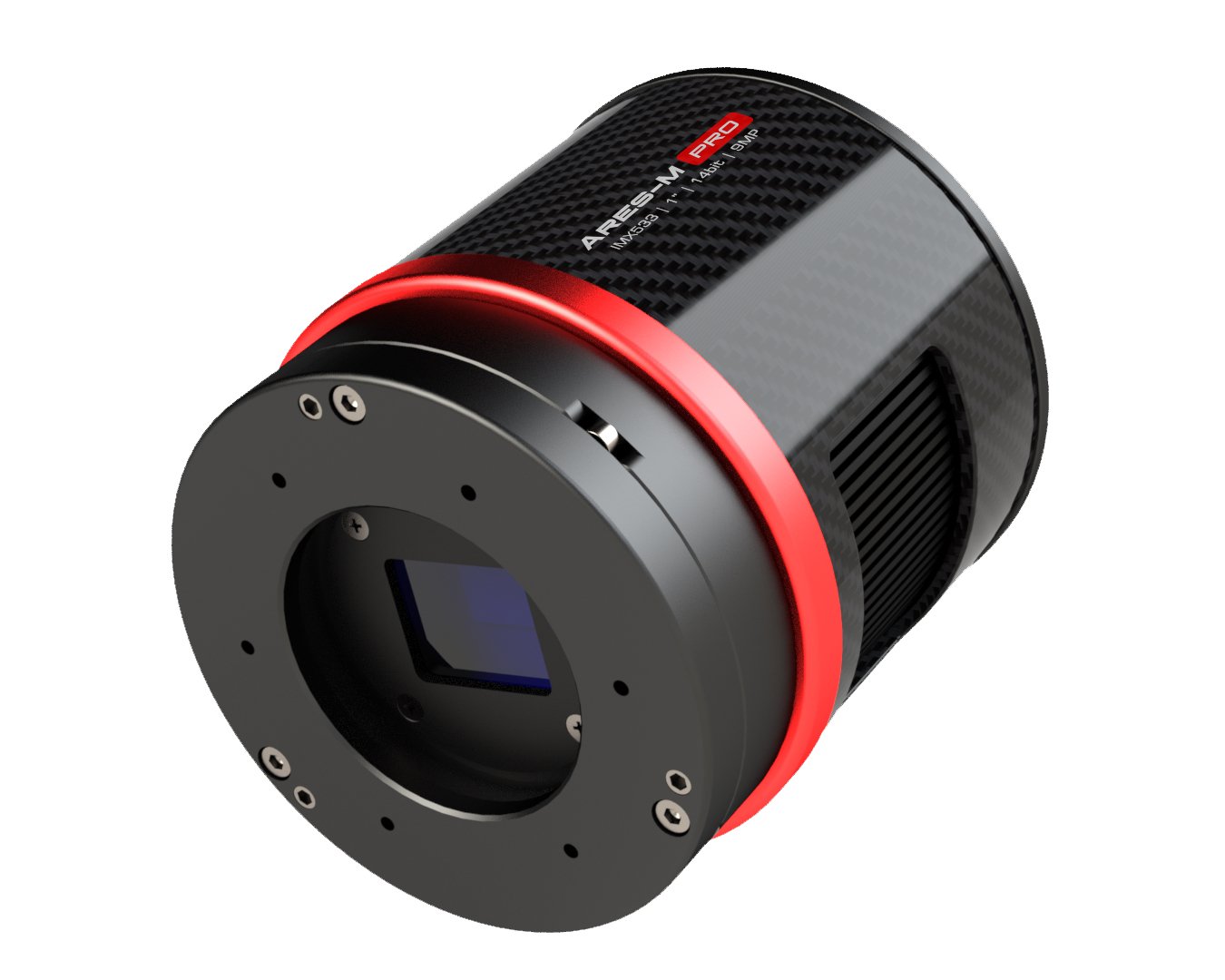

The Ares cooled series is starting with a new design! This time with a round body, a classic red and black color scheme, and using carbon fiber to keep weight down and cutting-edge outlook. We also integrated the sensor tilter plate and anti-dew PCB board. This series of designs makes the camera not only light and cool, but also functional!
Player One Ares-M Pro Front 3P and Rear 4P tilter plate
When shooting deep sky objects, the sensor tilt plate can be used to adjust the sensor tilt angle to make the stars at the corners more rounded. Ares camera provide both front and Rear tilter plate fulfill all usage scenarios.
Player One Ares-M Pro Front 3P tilter plate is the default part on camera, we believe most users has experience with this before. it works well in a lot of basic scenarios.

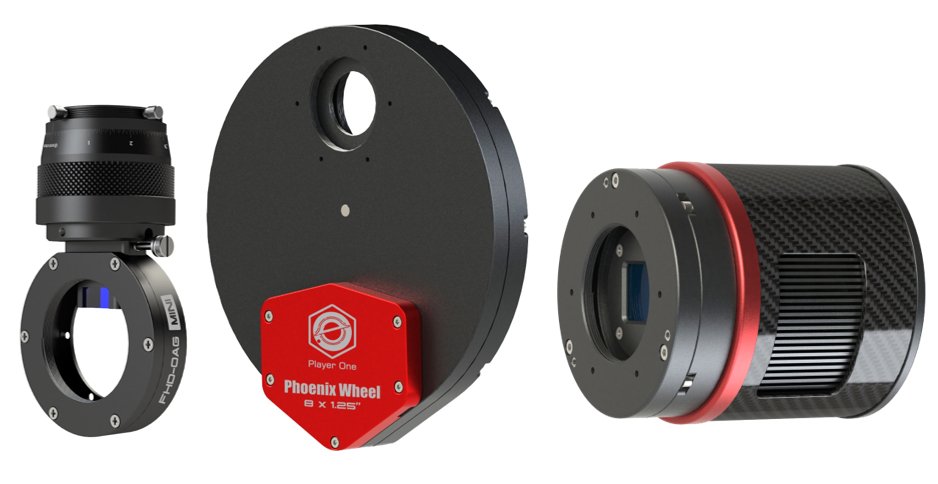

Rear 4P tilter plate is an alternate part for camera, when use filter wheel/filter drawer and OAG with fixed angel, it is necessary. And it is also convenient for RASA users to adjust the sensor tilt angel.
The built-in high-density sponge shading pad can block the light from the side slits without any side leakage.
Player One Ares-M Pro Carbon fibre and light weight
The Ares series uses a carbon fibre in camera housing and has been optimized for weight reduction in its structural design. The camera weighs only 420 grams, making it one of the lightest models on the market.
Player One Ares-M Pro Deep Cooling
Player One cooled camera series use 2 Stage TEC Cooling unit, after improved the structure design to reject the heat back to camera chamber, Camera Delta-T can reach 35-40℃.
Player One Ares-M Pro Anti-Dew heater
In the design of lightweight cooled cameras, Player One still pursuing the perfection, any necessary features must have, especially anti-dew system, is the problem that a lot of small cooled cameras ignored.
Full well
Ares-M Pro camera has 73Ke full well, it’s almost 1.5 times than IMX533 Basic (50ke).
Player One Ares-M Pro Frame rate
Ares-M Pro camera can run 43FPS under RAW8 mode, that’s much faster than existing models on market.
Player One Ares-M Pro Dual Sampling Mode
Ares series has dual sampling mode. Normal mode and LRN mode, they has different advantages in imaging.
1. Normal mode has faster FPS, it is more suitable for planetary imaging.
2. LRN (low readout noise) mode has lower readout noise and higher dynamic range. it is more suitable for DSO imaging.
Player One Ares-M Pro Non-Amp-Glow
Dark frame of Ares-M PRO (IMX533) camera is totally “dark”, it is also “Non-Amp-Glow” camera too!
300s@gain=0, offset=10, -10 degree, Dark frame of Ares-M PRO camera: DOWNLOAD
Preview of Dark frame: Exposure=300s, gain=0, offset=10, temp=-10℃ STF auto-Stretch in Pixinsight 1.86
Non-Amp-Glow can give us very clean background, much easier to get high quaility images.
Ares-M PRO camera also very good for solar, lunar and planetary imaging. Its 1″ square sensor can easily capture full disk of the Sun and Moon with short focal refractors. And it also could make mosaic work more efficient.
Player One Ares-M Pro 512MB DDR3 Cache
As an improvement, DDR3 cache in cooled cameras are increased to 512MB. It helps stabilize and secure data transmission, it effectively avoids frame dropping and greatly reduces readout noise.
With the DDR3 cache, the camera does not have high demands on computing needs any longer, it will still has excellent performance even if it is connected to a USB 2.0 port.
Type-C Data port and Power port
Back piece of cooled camera has 2 Type-C data port and 12V DC 5.5×2.1mm power port.
Main data port support USB3.0 protocol, the camera can run 43fps under RAW8 mode. Type-C port is easier to plug in when assemble the imaging equipment in night.
Player One Ares-M Pro
When recording images, since the actual writing speed will be affected by the writing speed of the hard disk itself, when the hard disk writing speed is slow, the recording may not reach the theoretical speed. It is recommended that you use a high-quality solid state drive to record data to give full play to the performance of the camera.
The camera has 12V DC5.5*2.1mm port to provide enough power to TEC cooling system. If you don’t need to power up cooling, only need to connect the main Type-C port, the camera will works as a uncooled camera.
Player One Ares-M Pro Standard Cable Usage
Player One Ares-M Pro Cooling System and Anti-Dew Heater
In ASCOM window, we provide 3 adjustable parameters: Target temperature, Fan Speed and Anti-Dew power.
Player One Ares-M Pro Standard Delta-T: 35℃-40℃, when ambient temp 30℃, fan speed 100%, dew heater 1%.
Recommend Delta-T settings: 30℃-35℃ below ambient, fan speed 50-70%, dew heater 10%, power consumption 40- 60%.
The rotation speed of cooling fan is also adjustable, the default value is 50% speed.
Player One Ares-M Pro
Dew problem is the biggest enemy in astro imaging, the camera integrated anti-dew heater in front of the camera. The heat power is adjustable.
Overvoltage and overcurrent protection mechanism
Player One cameras produced by the number one player ensures the safety of your camera and other equipment through overvoltage and overcurrent protection mechanisms.
Player One Ares-M Pro Performance
HCG open at gain=125.
Player One Ares-M Pro Readout Noise
Regarding readout noise, we solemnly promise that all values are obtained from actual tests. And for users, you could use Sharpcap 4 for testing. SC4 has a function called Sensor Analysis, provide a very simple way to test readout noise.
We wrote a tutorial on our website: https://player-one-astronomy.com/service/manuals/
If you are interested in readout noise testing, you may try it yourself, which is very simple.
Player One Ares-M Pro Dark current
The dark current is only 0.000044 e/s/pix at -20℃, and 0.000996e/s/pix at 0℃. In entire curve, dark current is almost like a straight a line, which can prove that Ares camera has very good quality and stable performance.
Absolute QE Curve
Player One Ares-M Pro Mechanical Drawing
BFL Solutions
Following is some recommend 55mm BFL solution for this camera. If don’t consider about BFL, the connection way is various.
