Player One Dwarf Planet Series Guiding Cameras
The Player One Astronomy Guiding Camera Series — also known as the Dwarf Planet Series — is designed for both precision guiding and high-quality astrophotography. The series includes three advanced models: Ceres, Sedna, and Xena, each featuring a unique sensor configuration to suit different observing needs.
Highlights
- High-speed USB3.0 Data Port: Achieves up to 500Mb/s — over 10× faster than USB2.0.
- Compact 1.25" Diameter: Fits directly into a 1.25″ adapter, keeping your setup short and stable.
- Multi-Purpose Design: Works perfectly as a guider, finder, or planetary camera using a 5–100mm CS lens.
Features
- Cutting-edge Hexagonal Design: Durable aluminium body with a distinctive hexagonal shape for improved heat dissipation.
- DPS Technology (Dead Pixel Suppression): Automatically maps and corrects defective pixels using advanced dark-frame analysis.
- Built-in Safety Protection: Overvoltage and overcurrent protection for reliable operation.
- ST4 Autoguiding Port: Direct connection to your equatorial mount for precision guiding.
- High Conversion Gain Mode (HCG): Maintains excellent dynamic range while reducing readout noise.
Performance
- Low Readout Noise: Just 1.34e at a gain of 350 for superior signal-to-noise ratio.
- High Dynamic Range: Retains faint and bright details in a single frame.
- Quantum Efficiency: Optimised for visible light with a peak near 550nm.
Mechanical Drawing
Sensor Comparison
Example Setup
Package Contents
Frequently Asked Questions
What is the difference between Ceres, Sedna, and Xena cameras?

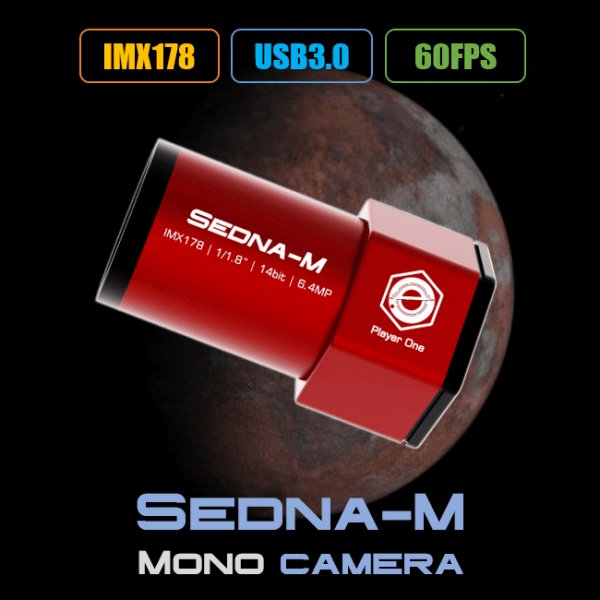

Ceres models use 1/3″ sensors ideal for basic guiding, Sedna features a 1/1.8″ sensor with higher resolution, and Xena offers a 1/1.2″ sensor for improved light sensitivity and field of view.
Can I use these cameras for planetary imaging?
Yes. While designed primarily as guide cameras, the Dwarf Planet Series also delivers excellent planetary imaging performance, especially when paired with high-quality optics.
What software is compatible with Player One guiding cameras?
The cameras work seamlessly with popular astrophotography software such as PHD2 Guiding, SharpCap, and N.I.N.A..
Do I need external power for the camera?
No. The camera is powered directly through the USB3.0 connection and does not require a separate power supply.
What kind of lens or telescope can I use?
You can use a 5–100mm CS lens, or mount the camera on most standard guide scopes with a 1.25″ adapter.
