Product Description

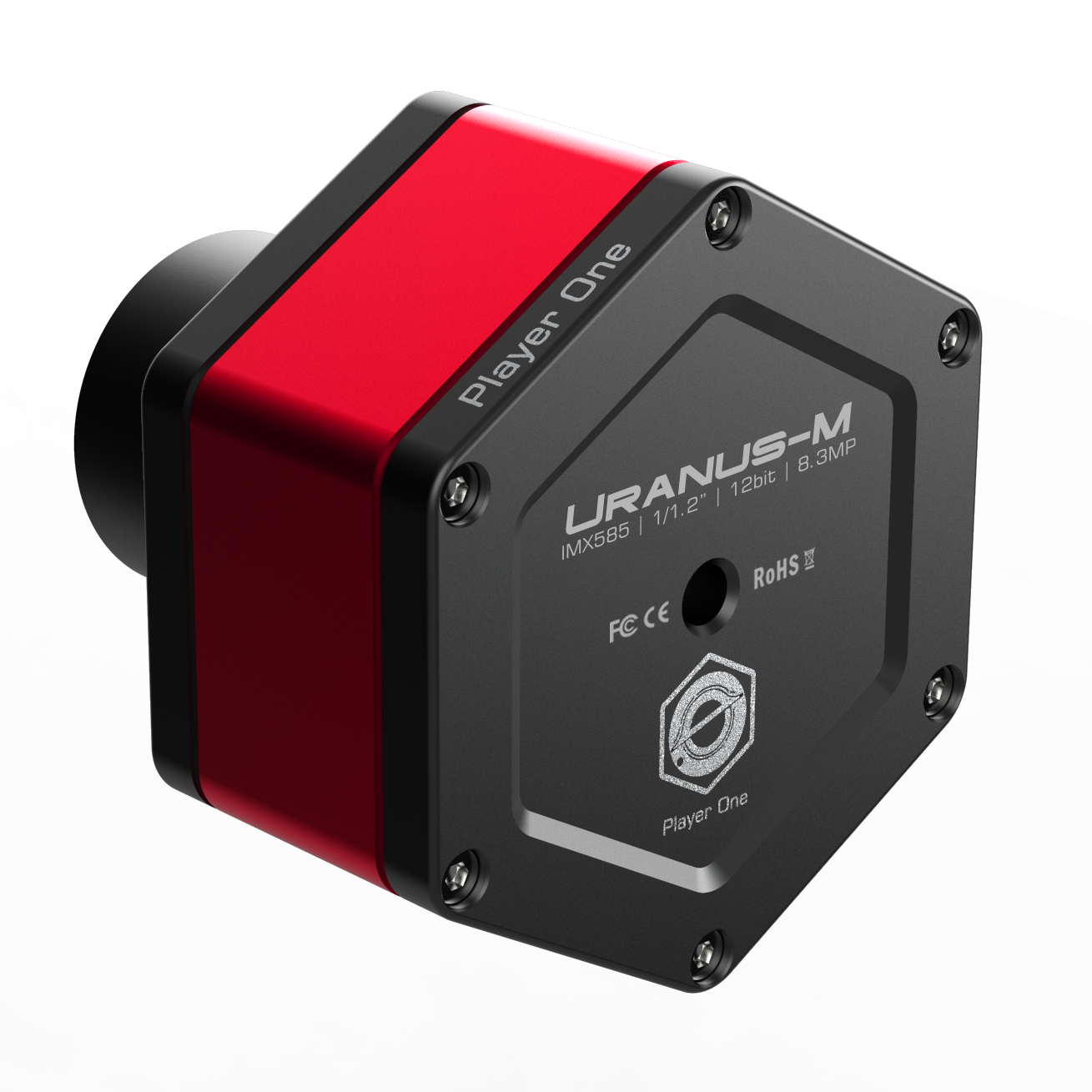

The Uranus-M (IMX585) is a high-performance camera developed by Player One Astronomy, featuring Sony's latest IMX585 1/1.2” format mono sensor. With a 2.9μm pixel size, a well depth of 47Ke, and a resolution of 3856 × 2180 (8.3MP), this camera is ideal for astrophotography, EAA (Electronically Assisted Astronomy), and lucky imaging. Its diagonal measurement of 12.85mm provides a large field of view, enhancing imaging capabilities.

STARVIS 2 Technology

Both the Uranus-M and Uranus-C (colour variant) incorporate Sony’s advanced STARVIS 2 technology, which employs a back-illuminated pixel structure for improved sensitivity and reduced noise. This ensures exceptional performance in low-light conditions, making it perfect for astrophotography applications.

Key Features:

1. Large Sensor Format

• The Uranus-M (IMX585) features a 1/1.2" format, providing a significant field of view for imaging.

2. High Full Well Capacity

• With a 47Ke full well capacity, this camera outperforms the IMX485 (13Ke), offering 3.6 times greater capacity for enhanced dynamic range.

•

3. Non-Amp-Glow Performance

• One of the standout features of the Uranus-M is its ability to produce dark frames that remain completely "dark" even under high-stretch conditions, eliminating amp glow for clean, high-quality images.

•

4. Advanced Cooling Options

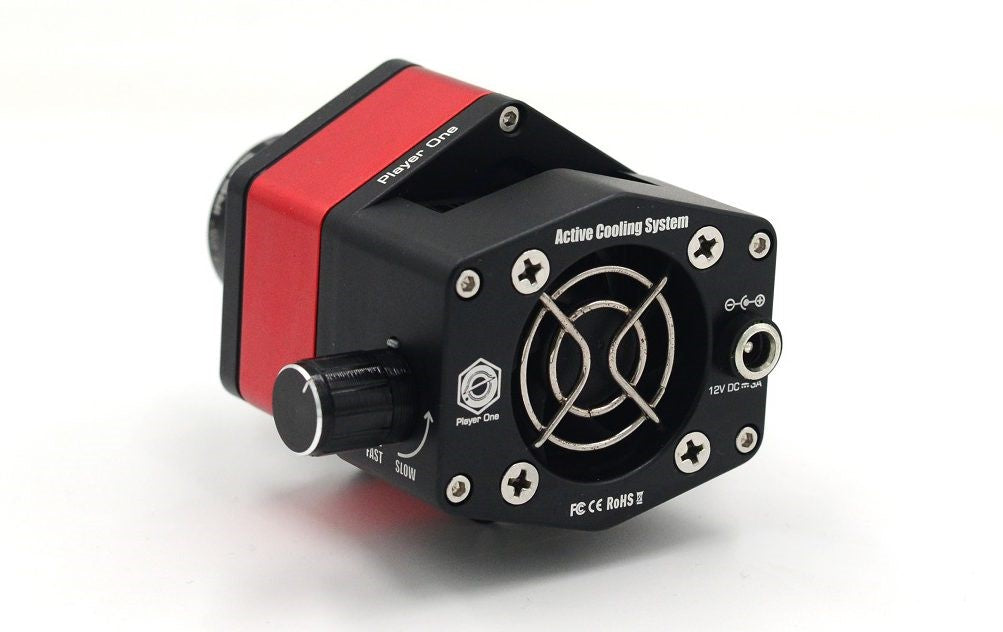

• The Active Cooling System (ACS) is an external air-cooled system designed for solar and large-format planetary cameras with Passive Cooling Systems (PCS). With PCS + ACS, the camera maintains a temperature only 7°C above ambient, reducing noise and improving performance for deep-sky and solar imaging.

•

Innovative Design & Build

Unique Camera Naming System

Player One Astronomy names its planetary camera series based on planetary sizes:

• Mars (1/3")

• Neptune (1/2")

• Uranus (1/1.2")

• Saturn (1")

• Jupiter (4/3")

Cutting-Edge Aesthetics & Structure

• The camera’s body follows a high-tech hexagonal design with round chamfers for durability and elegance. Its striking red finish combined with a matte black surface gives it a premium, high-end appearance.

2nd Generation Sensor Tilt Plate

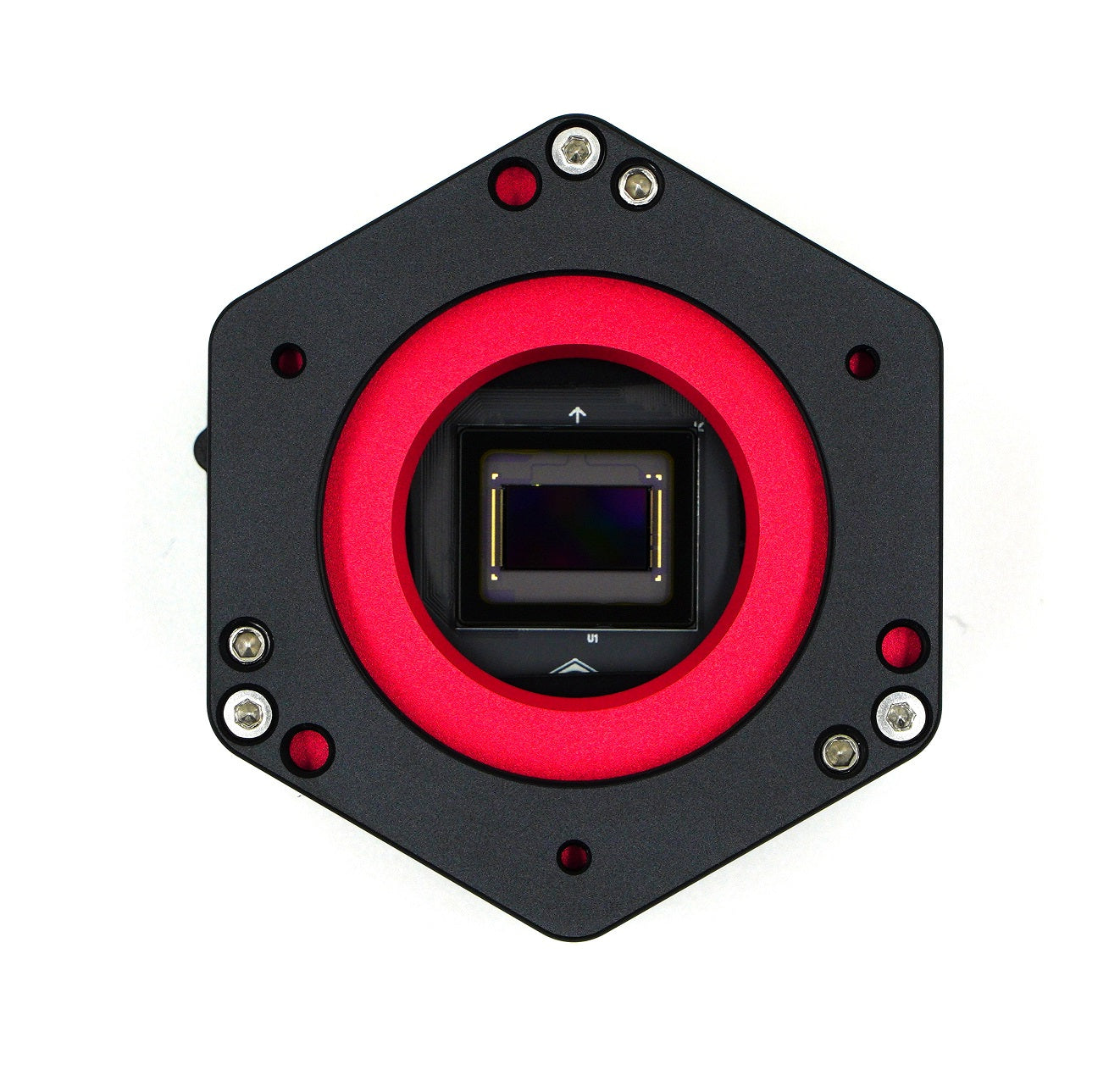

• A built-in sensor tilt plate helps minimize field curvature, enhancing deep-sky imaging performance.

• The integrated high-density sponge shading pad effectively blocks stray light, ensuring clean imaging results.

•

Passive Cooling System

• A newly added Passive Cooling System (PCS) efficiently dissipates sensor heat, reducing noise and improving performance.

256MB DDR3 Cache

• The first planetary cameras to feature DDR3 cache memory, ensuring stable data transmission, preventing frame dropping, and reducing readout noise.

• With DDR3 cache, the camera performs exceptionally even when connected via USB 2.0.

•

DPS (Dead Pixel Suppression) Technology

• Built-in DPS technology analyses dark frames to detect and correct fixed abnormal pixels, enhancing overall image quality.

Advanced Safety & Performance Features

Overvoltage & Overcurrent Protection

• Ensures camera safety with built-in protection mechanisms to prevent damage from power fluctuations.

Data Transfer & Guiding Support

• When connected via USB 3.0, the camera achieves up to 47 FPS in RAW8 mode (10-bit ADC).

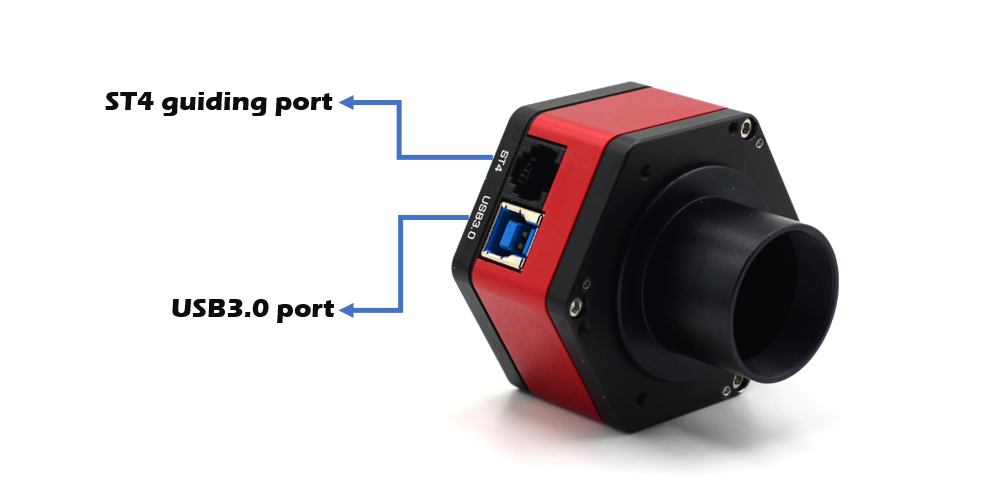

• Supports ST4 guiding, enabling direct connection to an equatorial mount for precise auto-guiding.

Performance & Testing

High Conversion Gain (HCG) Mode

• HCG mode activates at gain = 210, enhancing low-light sensitivity while maintaining low readout noise.

Readout Noise Testing

• All readout noise values are obtained from actual tests. Users can independently verify noise performance using SharpCap 4. A step-by-step guide is available on the Player One Astronomy website.

•

Quantum Efficiency (QE) Curve

• The camera’s relative response curve is officially provided by Sony, ensuring authoritative and reliable sensitivity data.

•

Included in the Package:

• Uranus-M or Uranus-C Camera

• USB 3.0 Data Cable

• ST4 Guide Cable

• Protective Dust Cap

• Quick Start Guide
