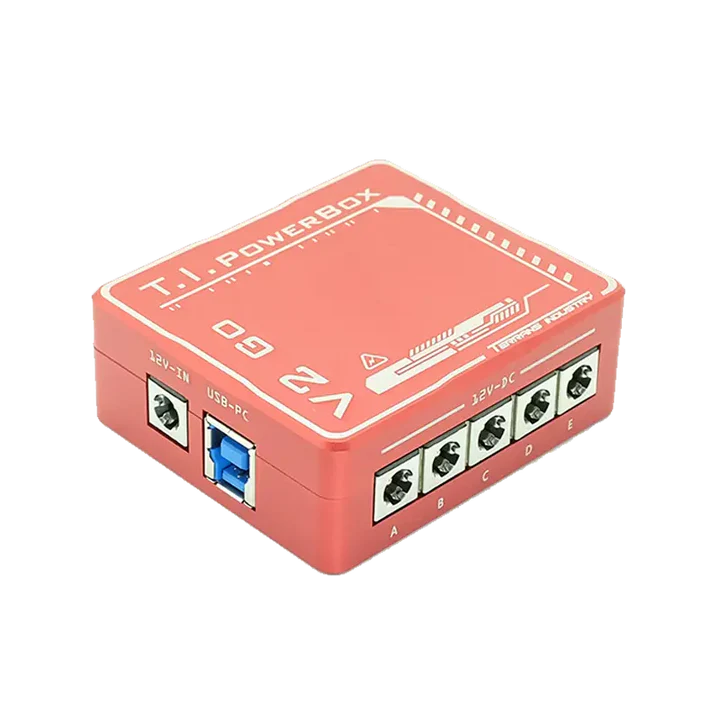

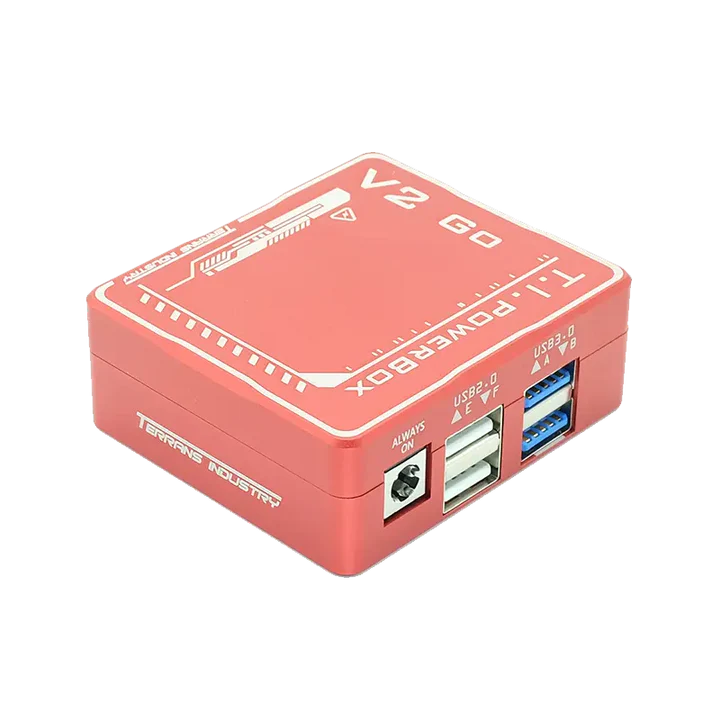

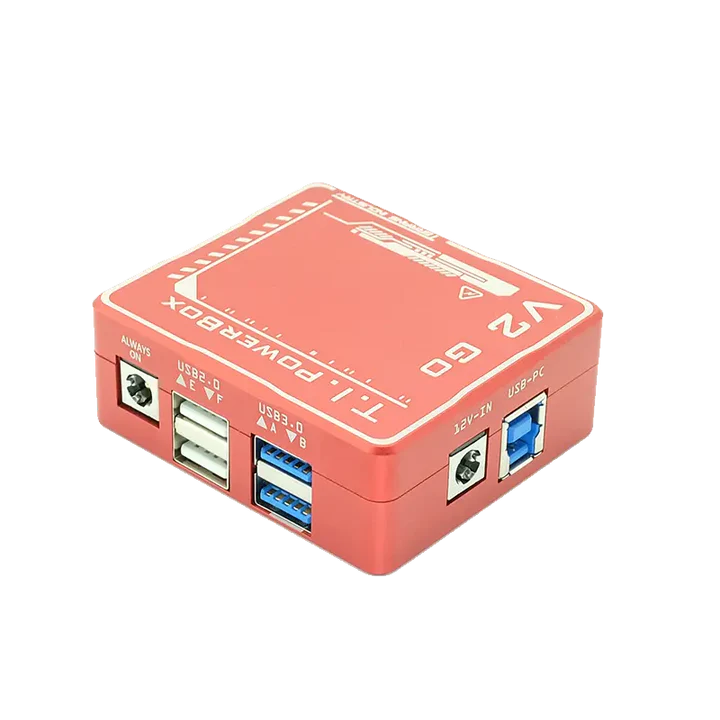

Terrans PowerBox Go
The Terrans PowerBox Go is a compact yet powerful solution for remote astronomy setups, designed for those seeking reliable power and USB management in a simplified format. This device is ideal for astronomers and astrophotographers who need to manage power and data communications without the complexity of larger systems.
Key Features
- USB Ports: Includes two USB 3.1 ports and two USB 2.0 ports, each with independent power management and reset controls.
- Power Output: One "always on" output for devices requiring constant power.
- Protection: Built-in protection mechanisms, including overcurrent, short-circuit, and temperature safeguards to protect both the device and your connected equipment.
- Compact Design: Perfect for users who need power and data management without the extra features of larger models.
Applications
This power box is ideal for remote observatories and astrophotographers who need a reliable, compact, and easy-to-use solution for power management and data connectivity. With Terrans PowerBox Go, managing your telescope, cameras, and other astronomy equipment has never been easier.
1. PowerBoxGo V2 Introduction
Designed for private observatories
Terrans PowerBoxGo V2 is a comprehensive power and USB data management device used for remote astronomical photography. Equipped with：
◾ Two USB3.1 SuperSpeed ports
◾ Two USB 2.0 ports
◾ Five 12V DC power output ports
◾ One 12V Always ON port
Supports a maximum power output of 120W, meeting the power supply needs of most users.
Terrans PowerBoxGo V2 will help you clarify device wiring, bid farewell to complex wiring, and simply connect one power cord and one USB from the outside to your entire device. You can easily manage the power supply and USB communication of all devices through software.
NOTE：
⚫ Do not expose this device to excessively humid environments for a long time, as it may cause damage to the device itself and the connected devices. Direct intrusion of any liquid may cause damage to this device and the connected devices.
⚫ Using low-quality power supplies without a brand may cause damage to this device and the connected devices.
2. Product Function
3. Ports Description
|

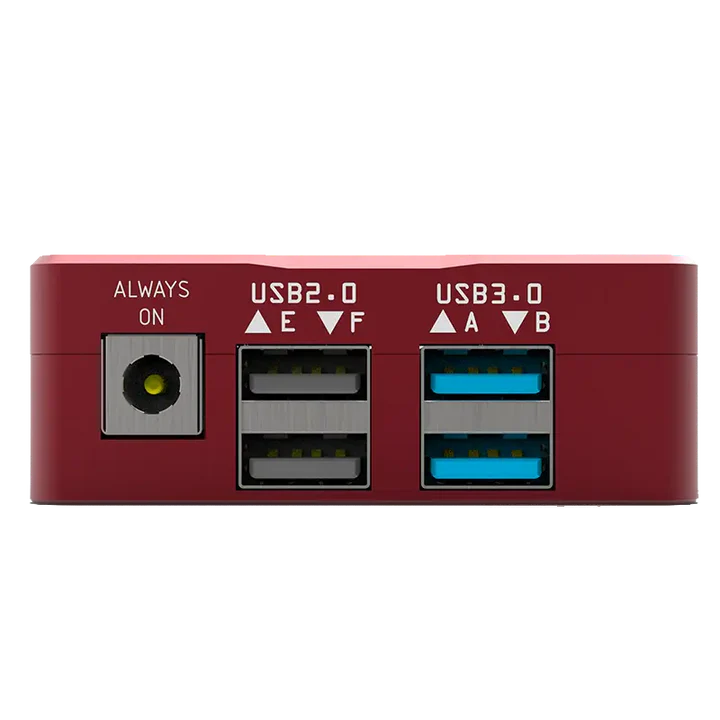

Two USB3.1 SuperSpeed ports with independent switches and plug-drop controls Two USB 2.0 ports with independent switches and plug-drop controls ◾ Each USB port of Terrans PowerBoxGo V2 supports independent remote plug-drop controls and power switch, and each USB port can support up to 2A current output. In the remote observatory station, when the connected device shows no response or abnormality, software can be used to quickly reset the faulty device. ◾ We have equipped each USB port with an imported data management chip from Texas Instruments, which enables complete physical disconnection of USB 3.1 and USB 2.0 data lines, enabling the actual insertion and removal of USB devices. |
|

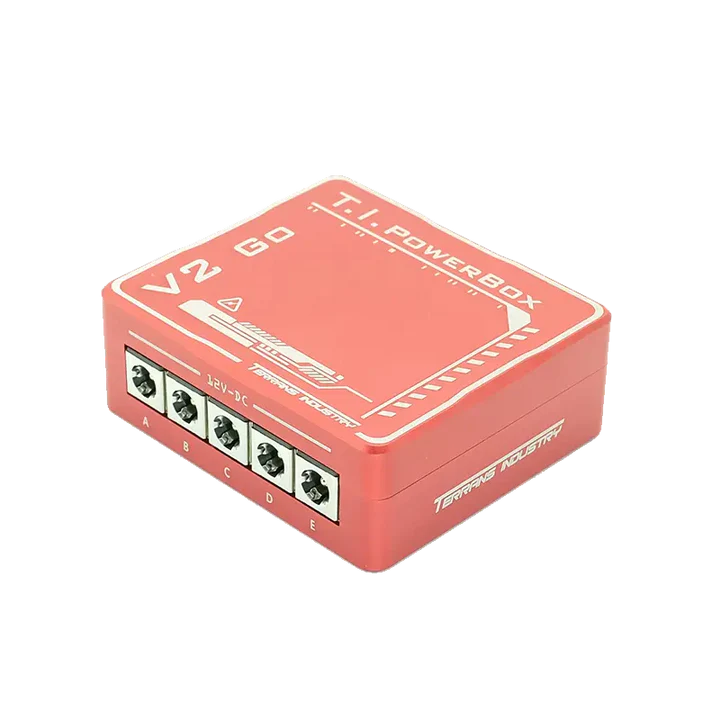

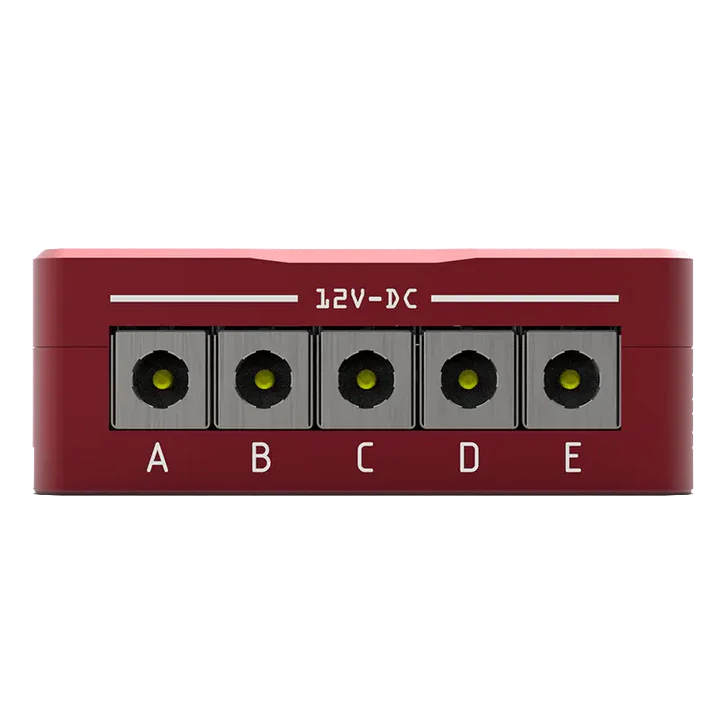

Five12V DC power output ports with independent switches One 12V Always ON port DC power port adopts gold plating process Terrans PowerBoxGo V2 is equipped with ◾ Five DC 12V power output port with independent switches, each equipped with an independent power management chip to protect the safety of electrical equipment. Each port supports a maximum current output of 8A. ◾ One 12V Always ON port, supporting a maximum output of 5A current, with anti reverse connection protection. |
4. Electrical characteristics
|

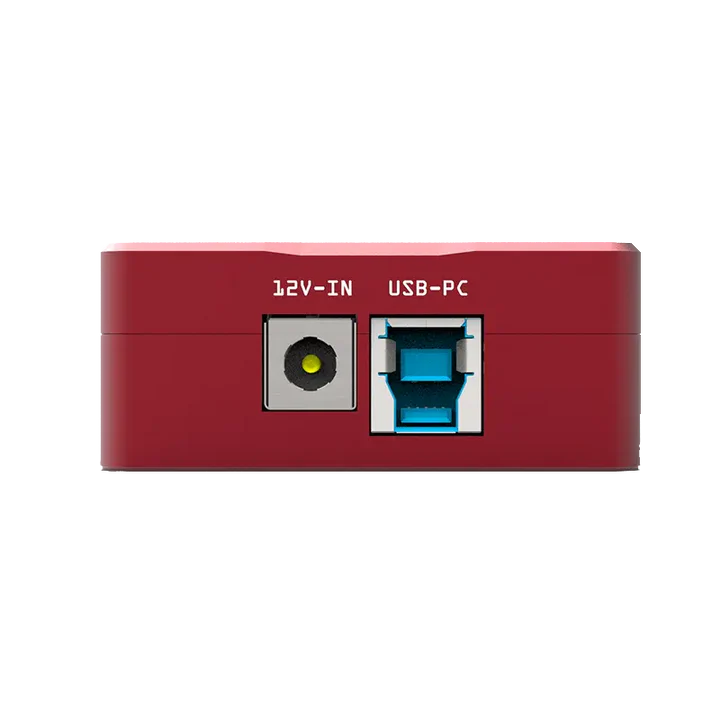

Input voltage |
◾ Rated input voltage 12V ◾ When the input voltage is greater than 14V or less than 10V, the device will disable all power outputs and pop up an alarm |
|
Input current |
◾ Maximum input current 10A ◾ When the input voltage is 12V, the maximum output power is 120W |
|
12V DC output |
◾ Each 12V output port supports independent switches ◾ Single 12V output port can support a maximum output current of 8A, ◾ Power supply output slow start, limiting large currents or voltage surges ◾ Short circuit protection. When a 12V port experiences a short circuit, the power management chip of that port will immediately cut off the power output without affecting the normal power supply of other ports. |
|
USB 2.0 and USB 3.1 SuperSpeed ports |
◾ Each USB port supports independent power switch ◾ Each USB port supports independent control and plugging, and USB3.1 can be downgraded to USB2.0 ◾ Single USB port supports a maximum output current of 2A, with overcurrent protection and short circuit protection ◾ Power supply output slow start, limiting large currents or voltage surges ◾ Under voltage protection, power supply is prohibited when the voltage is ◾ Reverse current blocking, USB management chip supports blocking reverse current from abnormal electrical devices ◾ Overheat protection, cutting off power supply when the temperature of the power supply chip exceeds 135 |
|
12V DC adjustable output |
◾ Non switchable Always ON 12V output, can be used for PC power supply ◾ Support reverse connection protection |
|
Voltage/Current/Power detection |
◾ Real time monitoring of input voltage/input current/input power and display through software |
