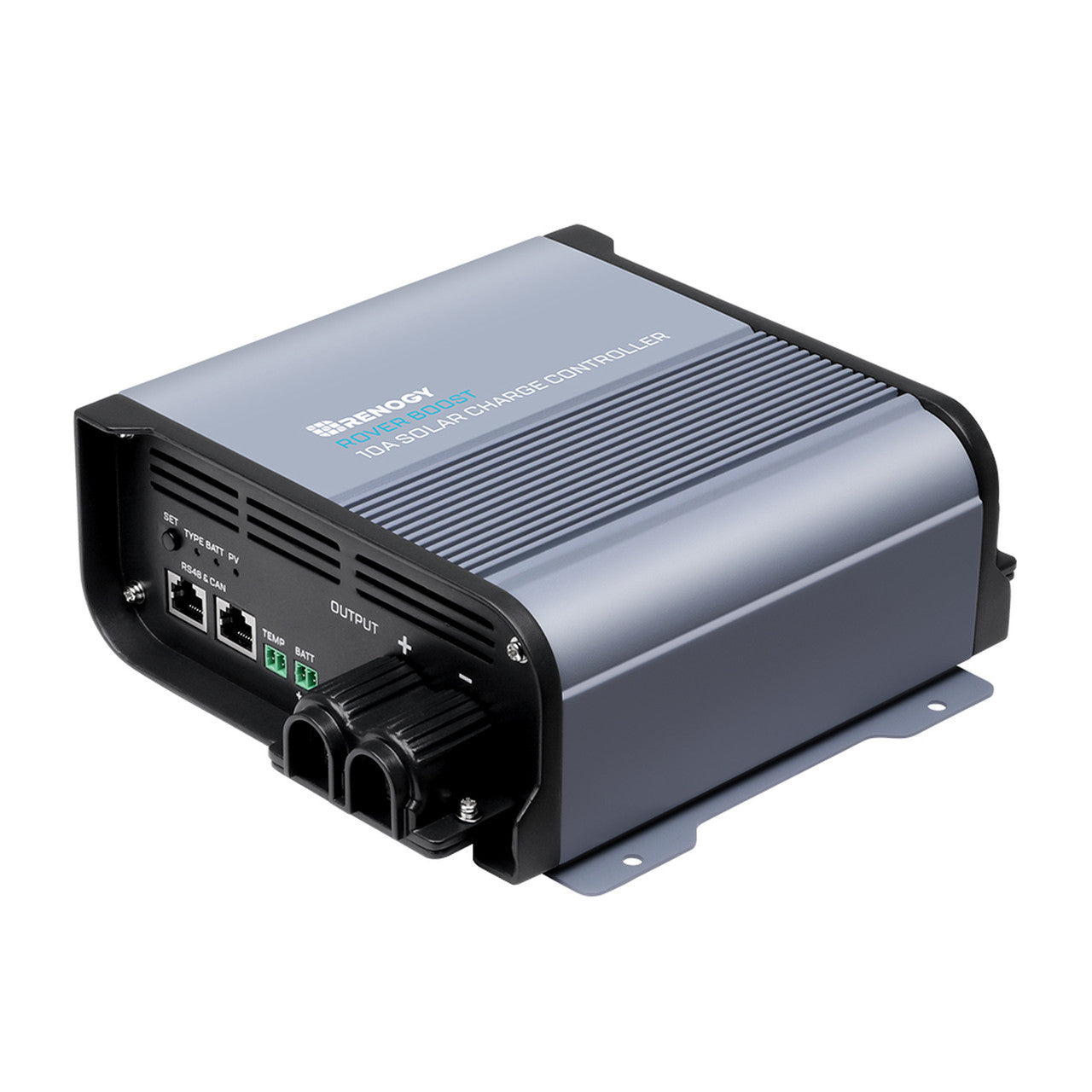

Rover Boost 10A MPPT Charge Controller

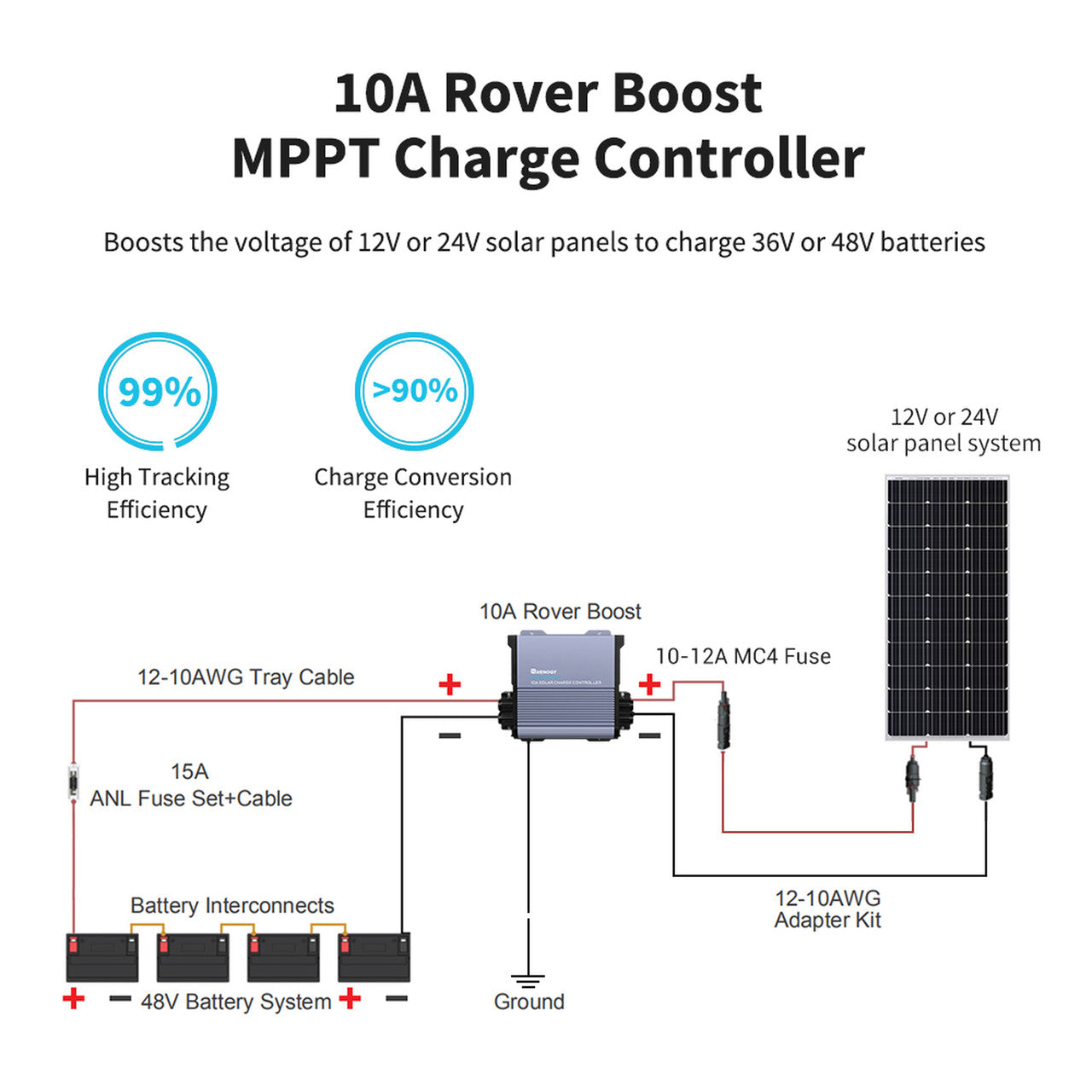

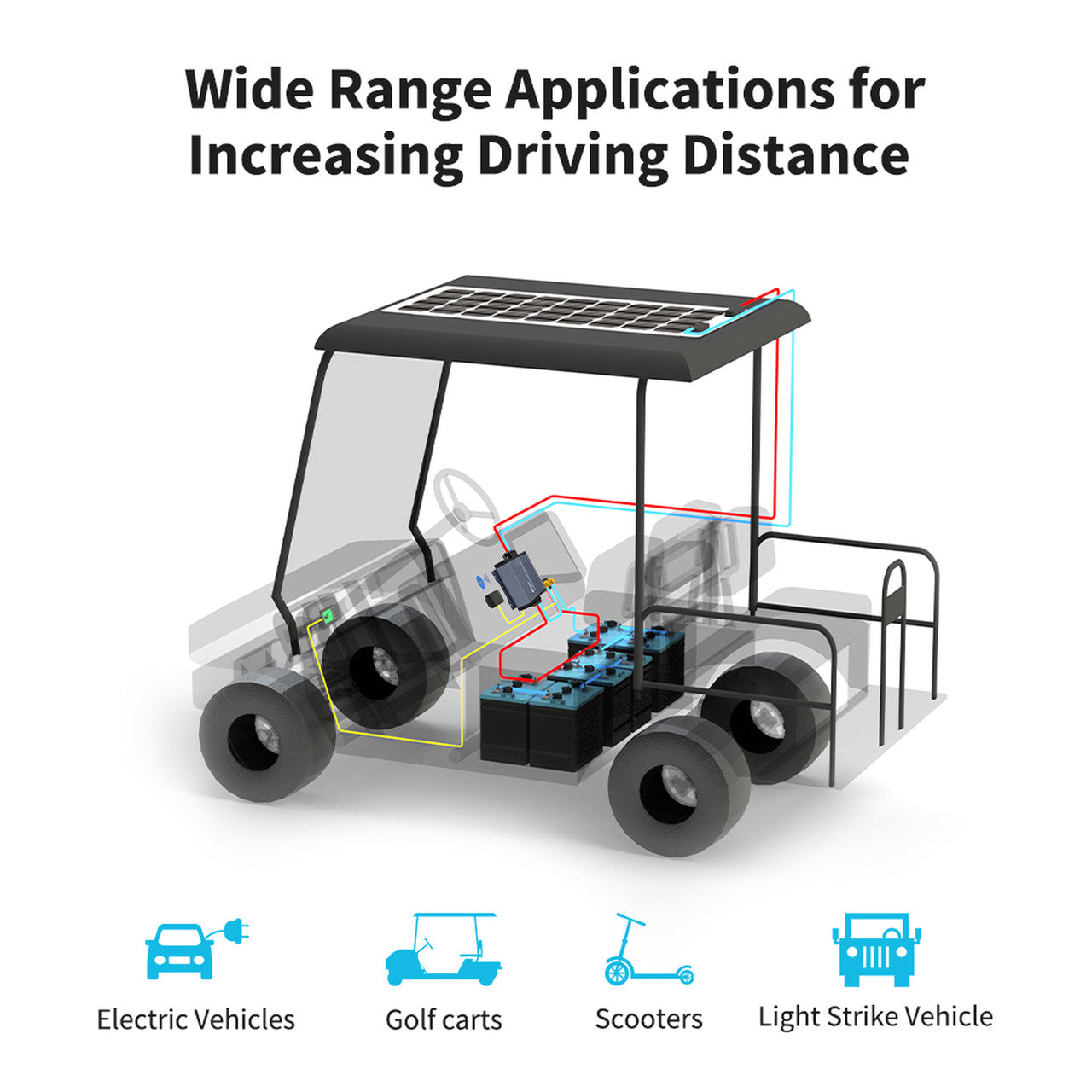

The Rover Boost Controller is a 10 Amp Maximum Power Point Tracking (MPPT) charge controller designed to efficiently charge a 36V or 48V battery bank using just one to two 36-cell solar panels. Ideal for compact spaces like golf carts, it delivers powerful performance where space is limited.

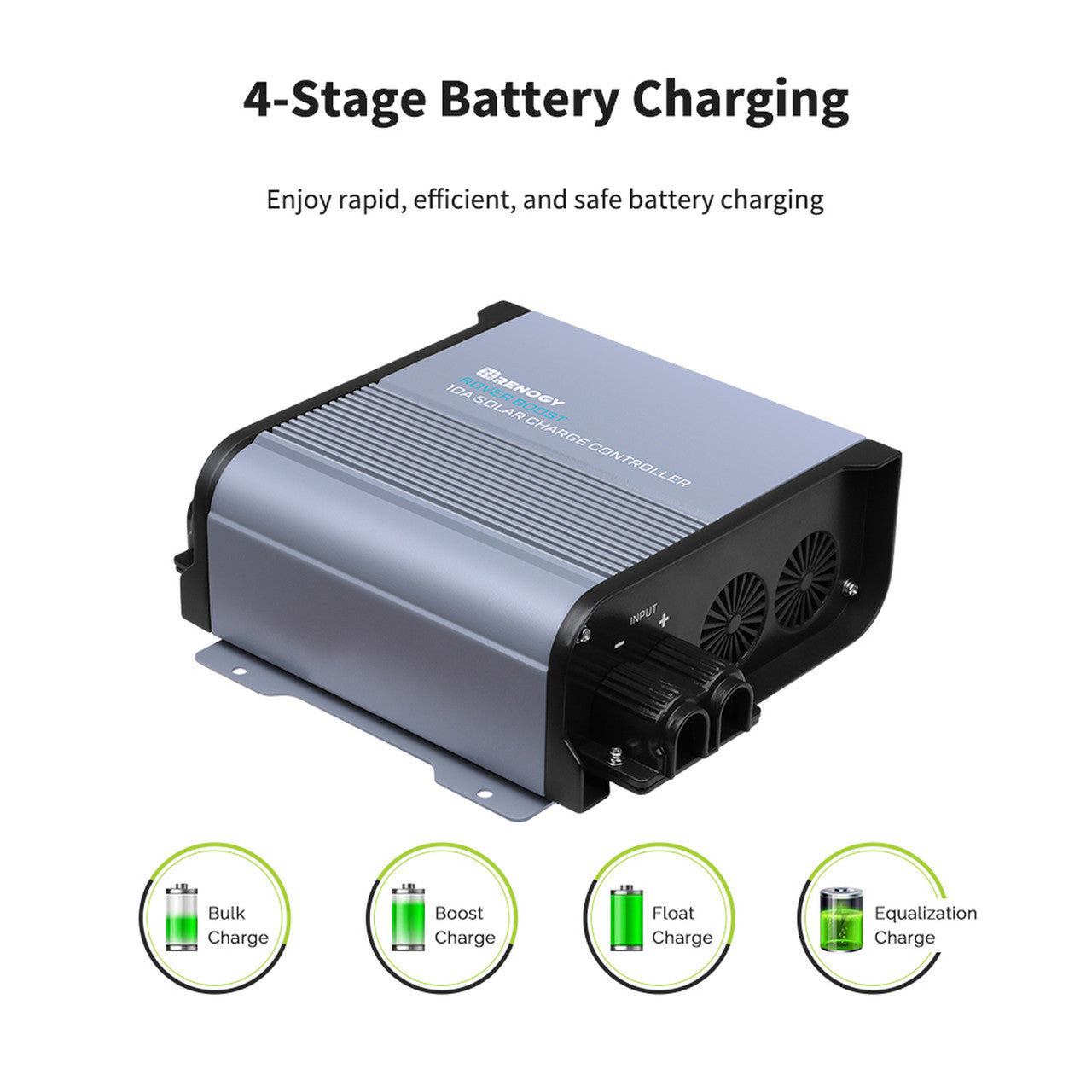

4-Stage Battery Charging
This controller offers 4-stage battery charging, including Bulk, Boost, Float, and Equalization stages, ensuring your batteries are charged safely and efficiently. It comes with charging presets for various battery types, including AGM/Sealed, Gel, Flooded, and Lithium batteries.

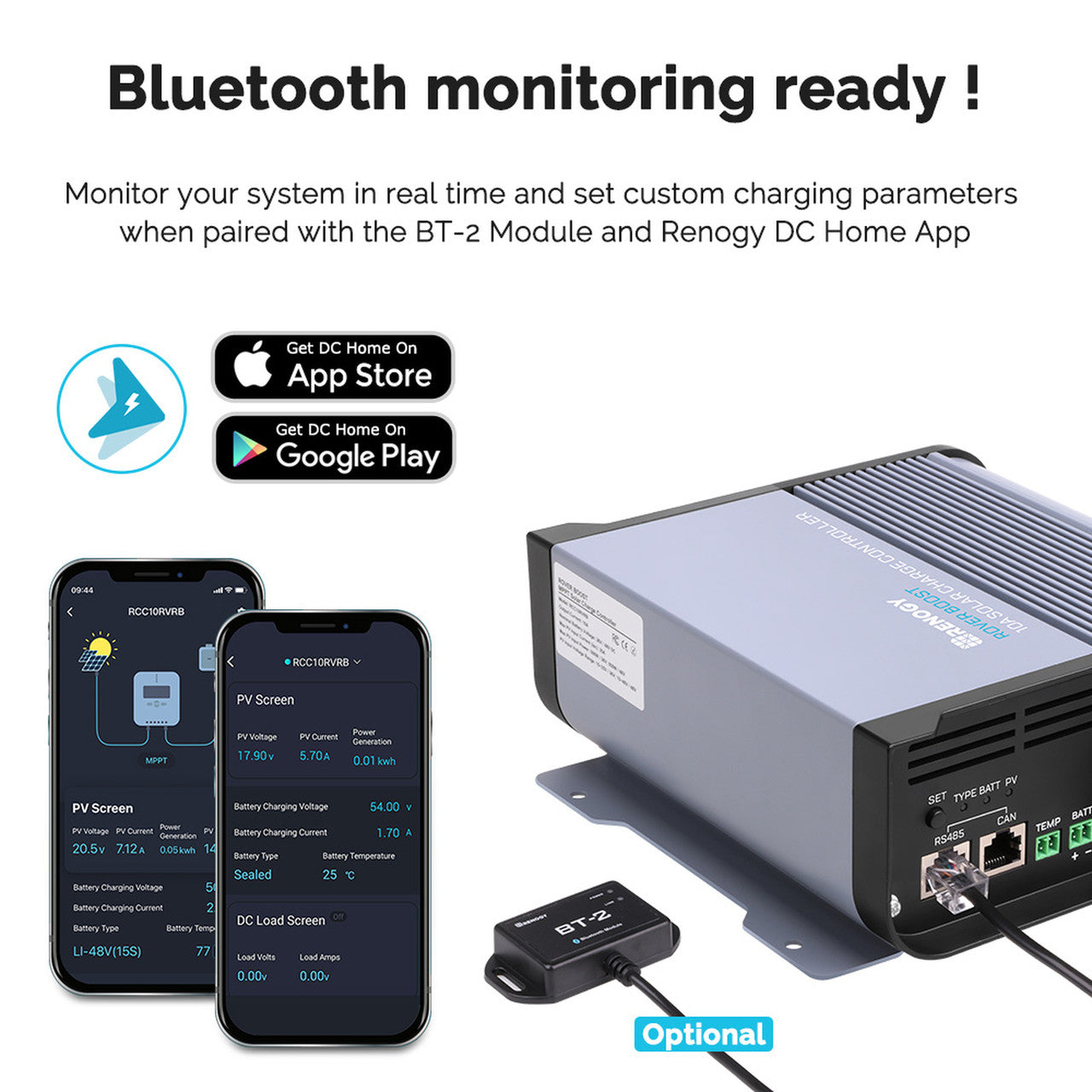

Bluetooth Connectivity
The Rover Boost Controller supports the latest Bluetooth software, giving you the option to add a Bluetooth module for remote monitoring and setting adjustments via your smartphone or other devices.

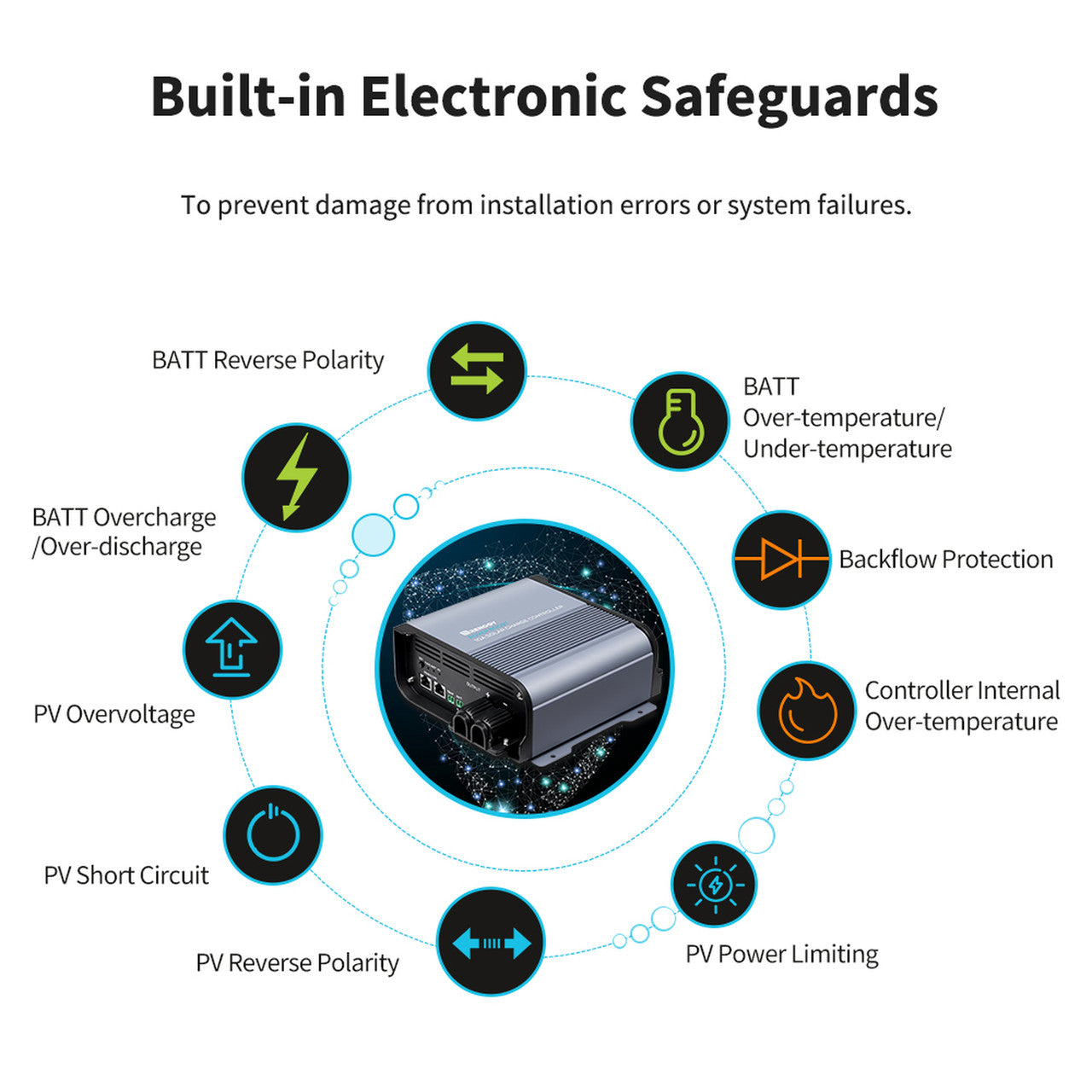

Comprehensive Protections
Designed with numerous protections for the battery bank, controller, and solar electronics, this controller ensures your system is safeguarded against common issues, providing you with peace of mind and reliable performance.
Add the Rover Boost Controller to your system for optimized charging in tight spaces and enjoy the reliability of a well-engineered solution.
Advanced MPPT Technology with minimum 99% tracking efficiency and 90% charge conversion efficiency for 4-stage battery charging (Bulk, Boost, Float, and Equalization) with charging.
4-preset battery charge profiles for AGM/Sealed, Gel, Flooded, and Lithium. User mode also available for a wide variety of applications. User mode also available for customizing charging.
Add a Renogy Bluetooth Module (sold separately) and download the Renogy DC Home App for remote monitoring and customization.
● SKU: RCM-BT2

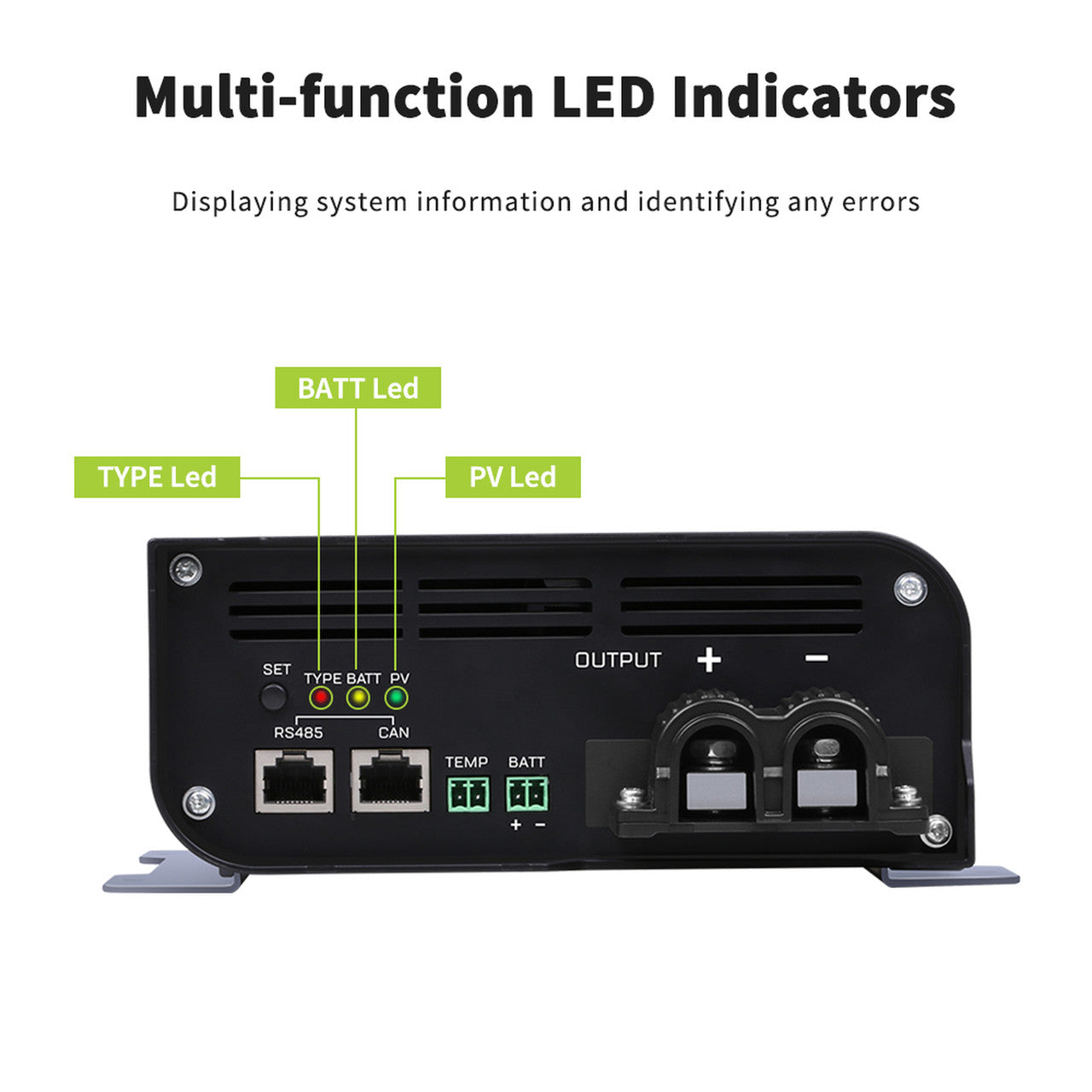

Multi-Function LEDs display system information and identify any errors.
Remote temperature sensor to active temperature compensation function of solar charge controller
● SKU: RTSCC
Package Includes
|
36V/48V Rover Boost 10A MPPT Solar Charge Controller
1 x
|
Specification
| 36V/48V Rover Boost 10A MPPT Solar Charge Controller | |
|---|---|
| Rated System Voltage: 36V / 48V, Auto Recognition (Non-Lithium) | Rated Charge Current: 10A |
| Battery Operating Range: 30 ~ 65 VDC | Battery Types : AGM/Sealed, GEL, FLOODED, LFP, USER* |
| Rated Max Charge Power: PV Input Power: 500W/36V; 650W/48V； Charging Power: 450W/36V; 600W/48V | Max Input Current (short-circuit, Isc) : 35A |
| Power Limiting Protection: Up to 600W/36V; 800W/48V | Solar Input Voltage Range (VOC): 15 ~ 25VDC / 36V; 15 ~ 40VDC / 48V |
| MPPT Voltage Range:15 ~ 25VDC / 36V; 15 ~ 40VDC / 48V | MPPT Tracking Efficiency: ≥ 99% |
| MPPT Charge Conversion Efficiency: ≥ 90% | Idle Consumption: ≤ 2W |
| Operating Temperature Range:-31°F ~ 149°F / -35℃ ~ + 65℃ | Storage Temperature Range: -40°F ~ 176°F / -40℃ ~ + 80℃ |
| Temperature Compensation: -3mV / ℃ / 2V (Non-Lithium); 0mV / ℃ / 2V; no compensation (Lithium) | Grounding Type: Common Negative Lug (M3) |
| Enclosure Rating: IP20 | Humidity: 0-95% RH |

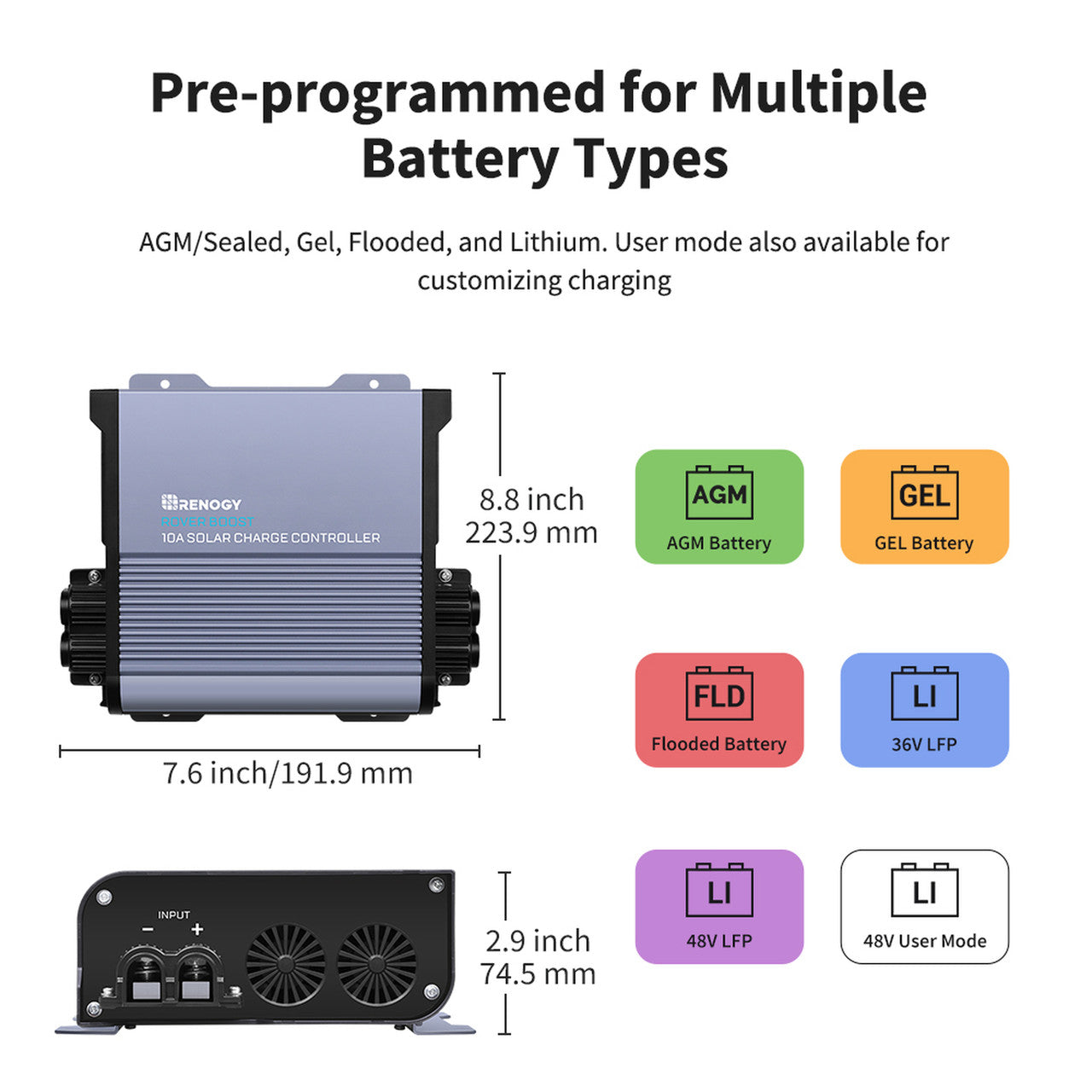

| Dimensions (L x W x D): 8.8 x 7.6 x 2.9 inch / 224 x 192 x 74.5mm | Weight: 2.65 lbs / 1.2 Kg |
| Terminal Range: 16 ~ 2 AWG | Terminal Size: M6-2x1 |
| Communication: RS485 / CAN bus signal | Certification: CE, FCC Part 15 Class B, RoHS |
