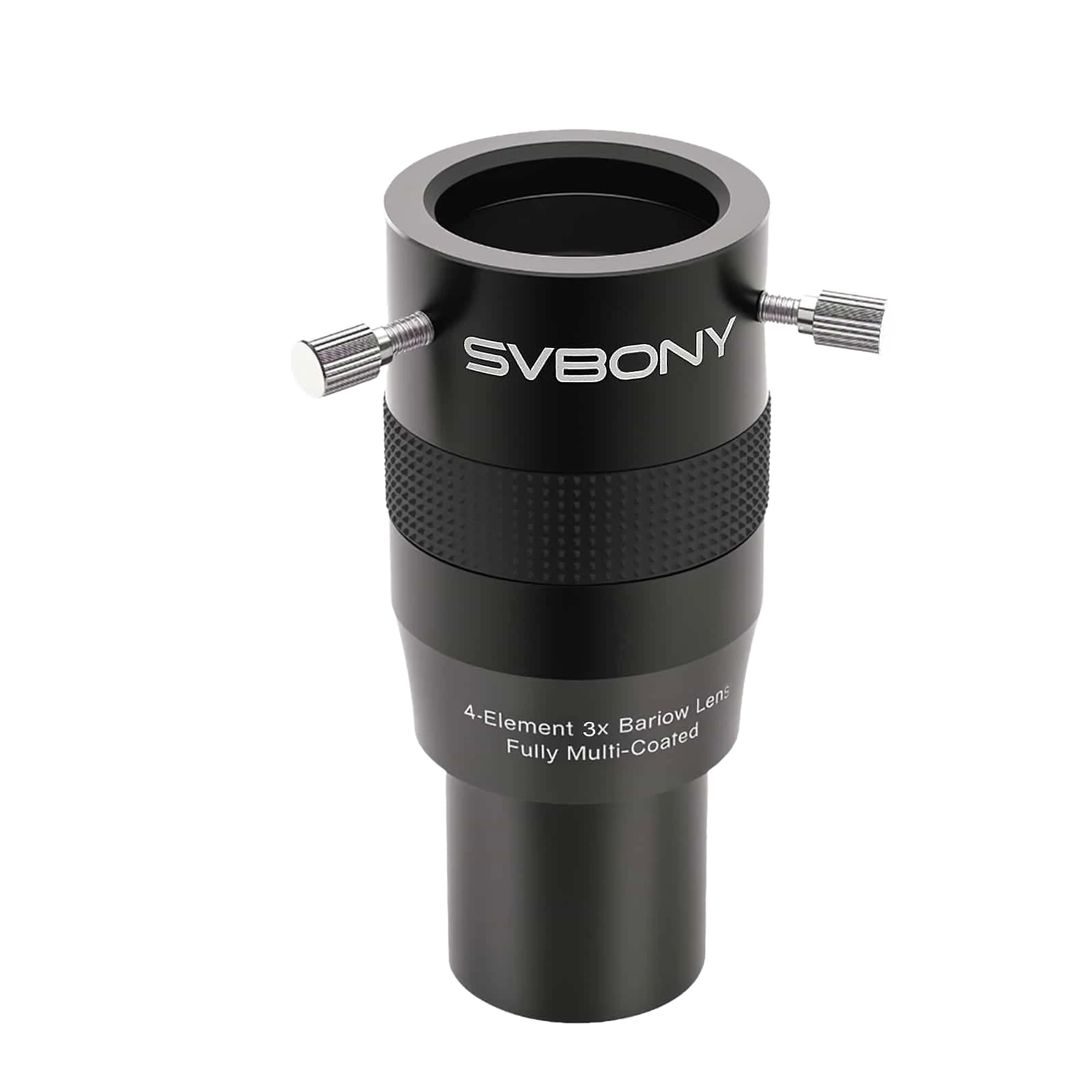

The SVBONY SV216 1.25″ 3× Barlow Lens is a premium optical amplifier designed for high-magnification planetary, lunar, and double-star observation. Its advanced 4-element optical design delivers noticeably higher contrast, improved edge sharpness, and better colour correction than standard 2-element Barlows.
Key Features

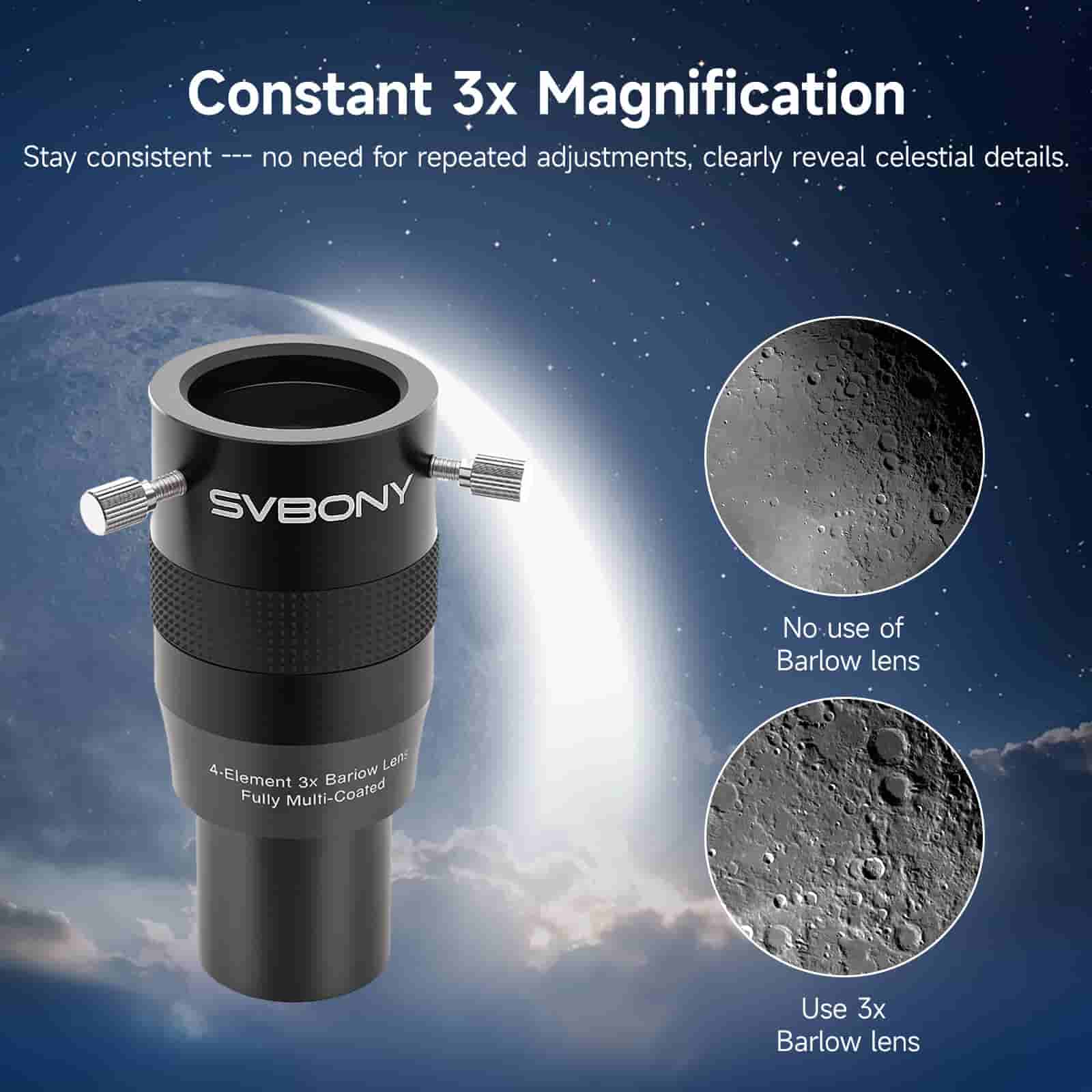

- True 3× magnification for detailed planetary and lunar observation
- 4-element optical system for improved sharpness and contrast

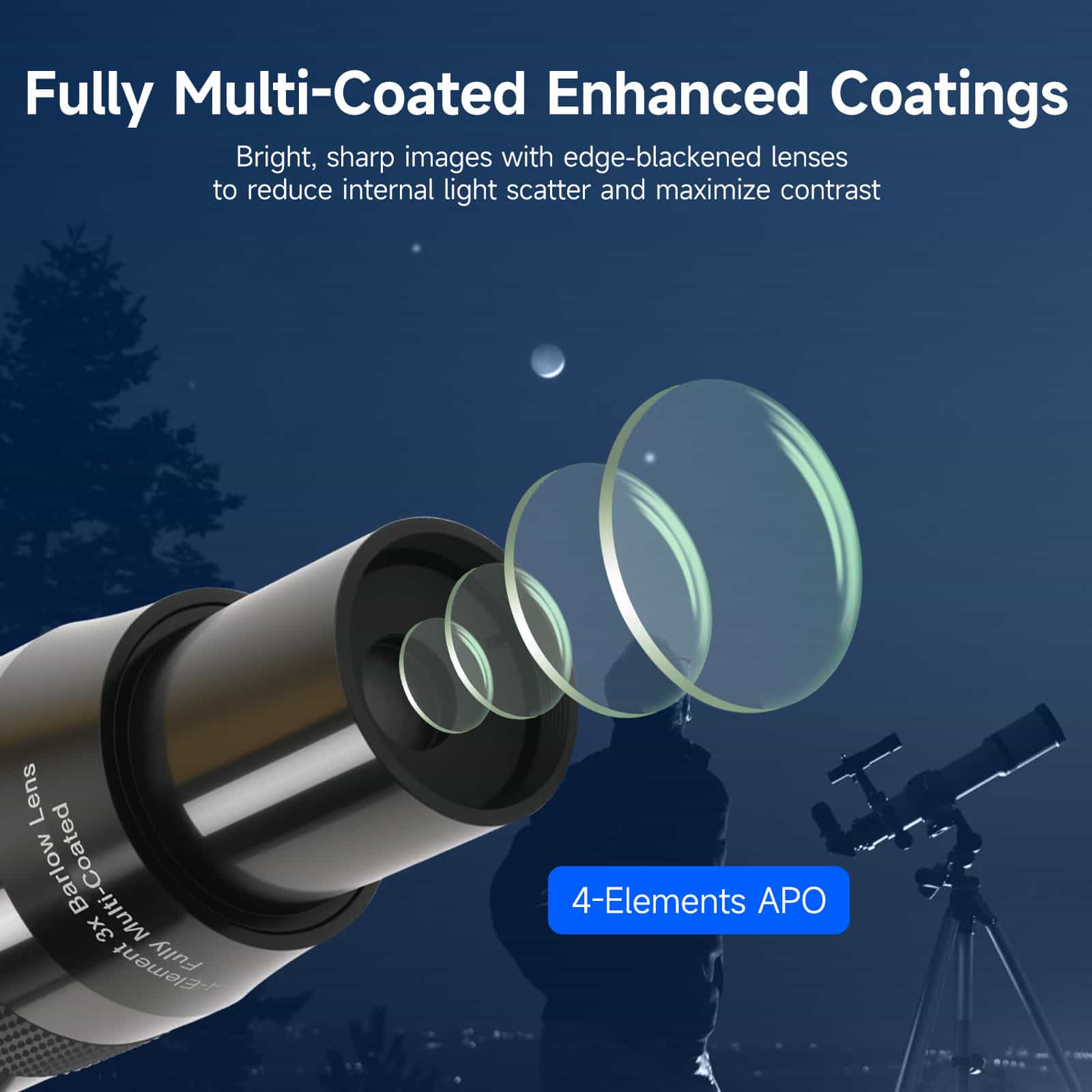

- Fully multi-coated lenses maximise light transmission

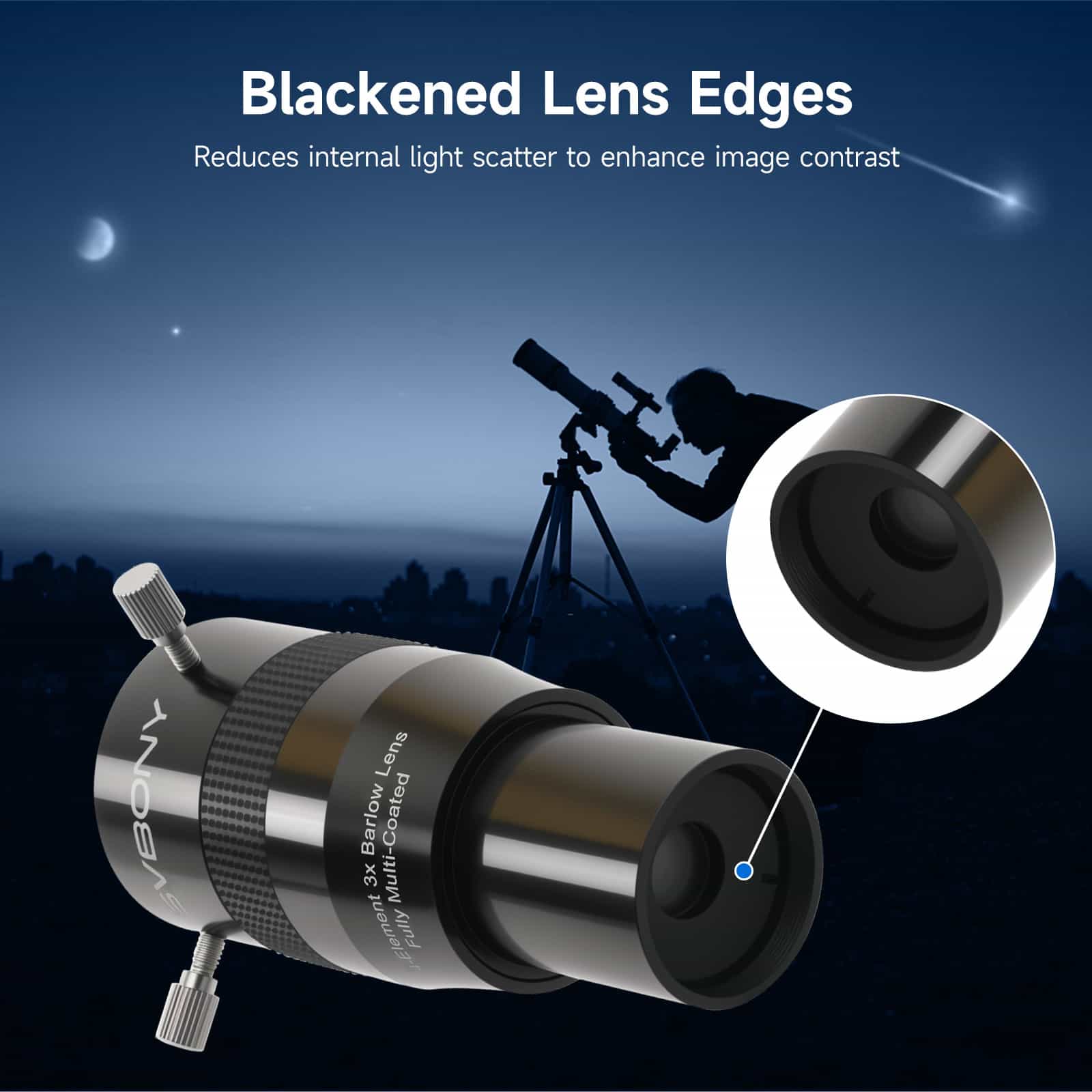

- Edge-blackened optics reduce internal reflections and scatter
- Preserves eye relief for comfortable high-power viewing

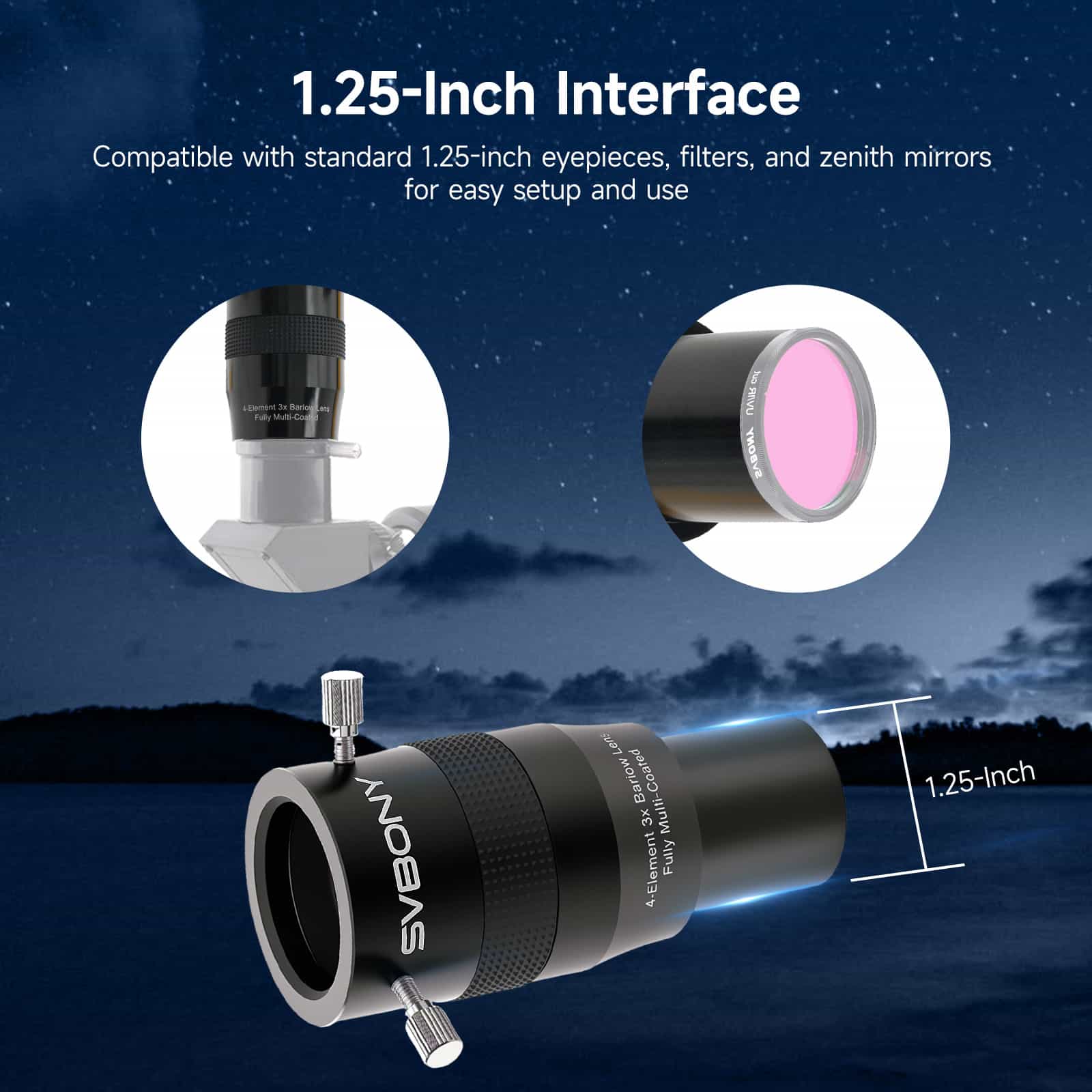

- Standard 1.25″ barrel compatible with most eyepieces
High-Contrast Planetary Performance
The SV216 uses a 4-element / 3-group optical layout to minimise chromatic aberration and light scatter, producing clean planetary edges and high contrast. This makes it particularly effective for observing Jupiter, Saturn, Mars, the Moon, and resolving fine surface detail.
Designed for Visual Use & Astrophotography
Unlike simple Barlow lenses, the SV216 maintains eye relief when used with longer focal-length eyepieces, making high magnification more comfortable. Its stable optical geometry also makes it well suited to planetary imaging and lunar photography.
Secure Mechanical Design

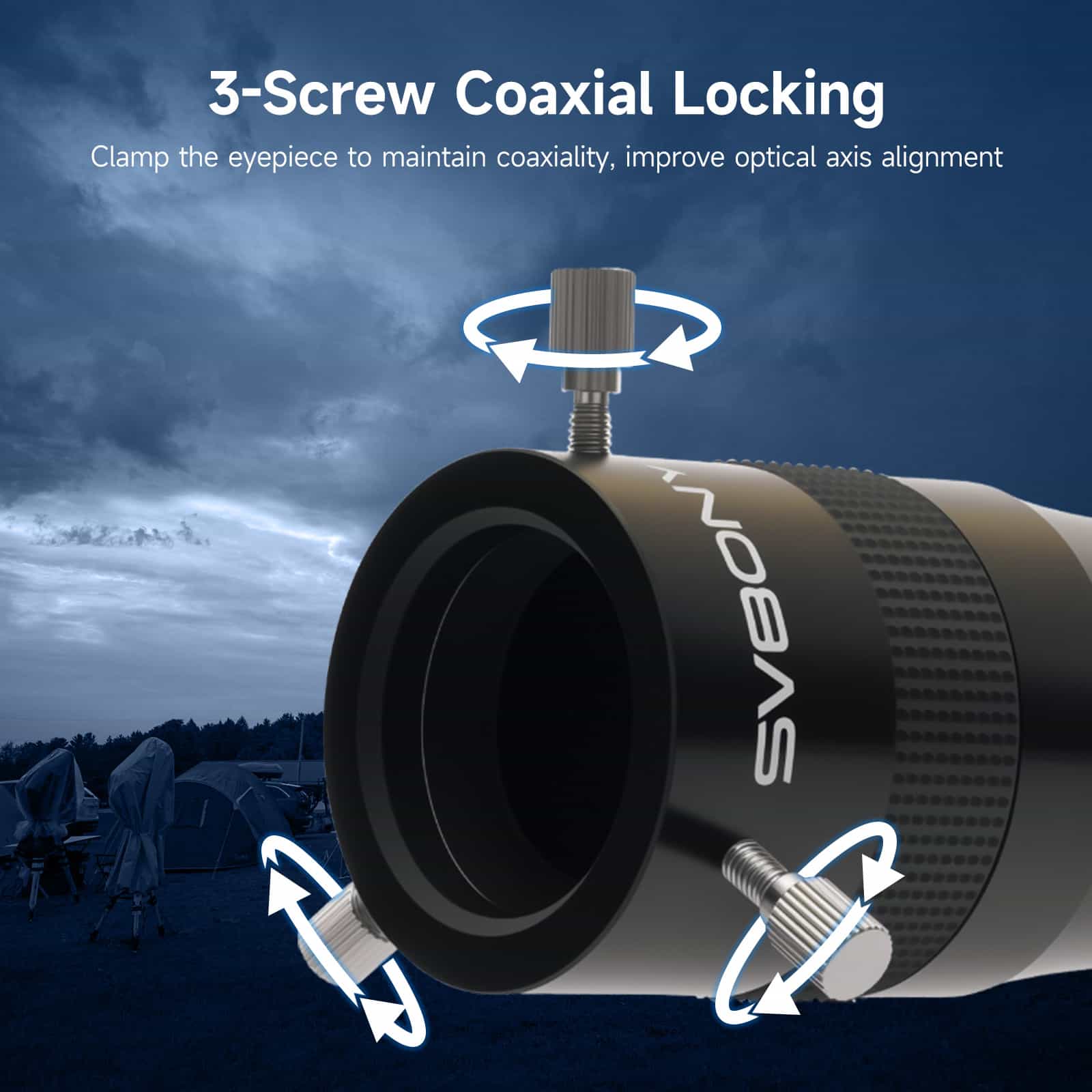

The precision-machined aluminium body features a brass compression ring and three coaxial thumb screws, ensuring excellent optical alignment and secure eyepiece holding without barrel damage. An integrated M28.5 × 0.6 filter thread allows the use of standard 1.25″ filters.
Technical Specifications
- Brand: SVBONY
- Model: SV216
- Magnification Factor: 3×
- Barrel Size: 1.25″
- Optical Design: 4 elements / 3 groups
- Lens Coatings: Fully multi-coated
- Filter Thread: M28.5 × 0.6

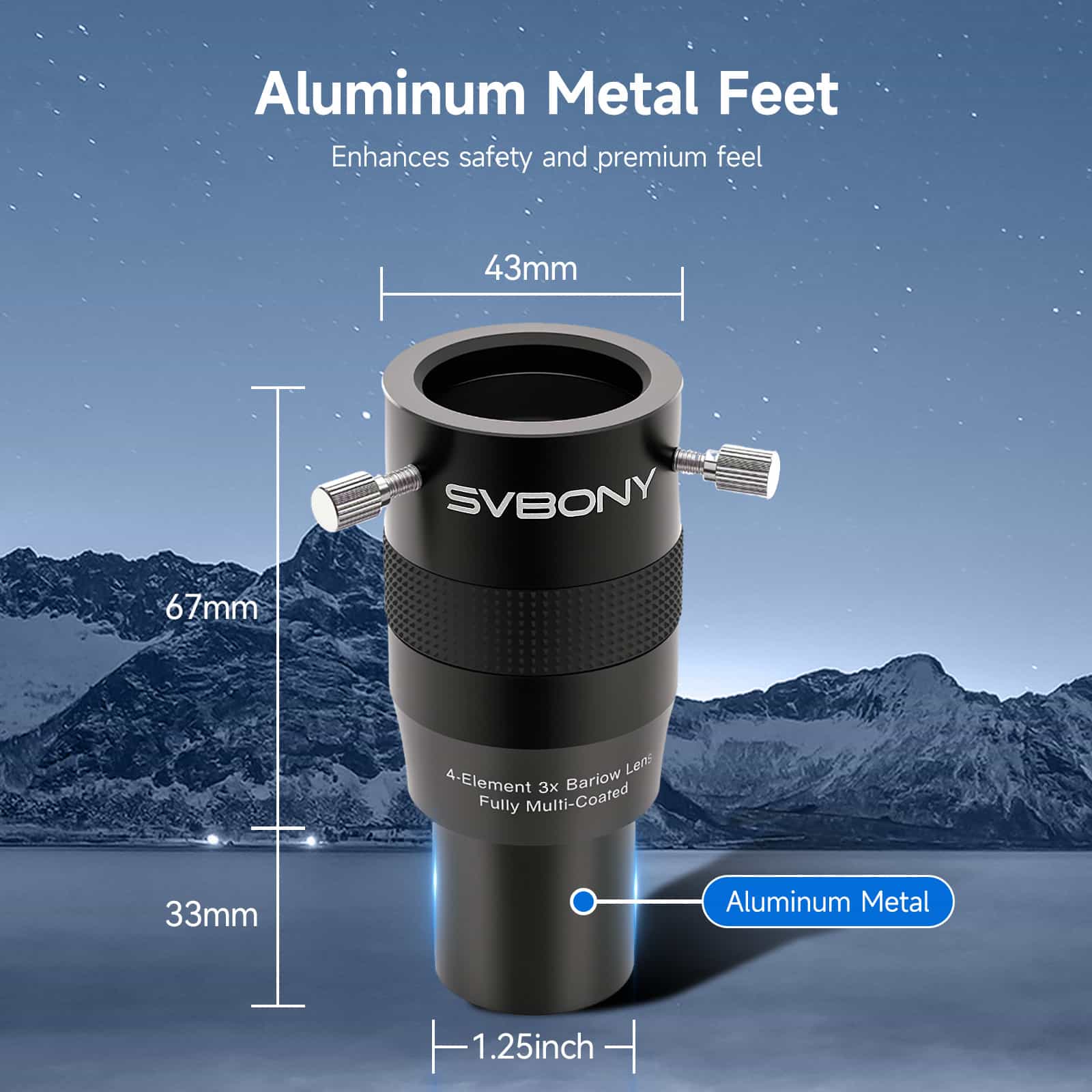

- Upper Body Length: 63.5mm
- Insertion Depth: 32.5mm
- Maximum Diameter: 44mm (excluding screws)
- Net Weight: 173g
- Material: Aluminium alloy
Package Contents
- 1 × SVBONY SV216 1.25″ 3× Barlow Lens

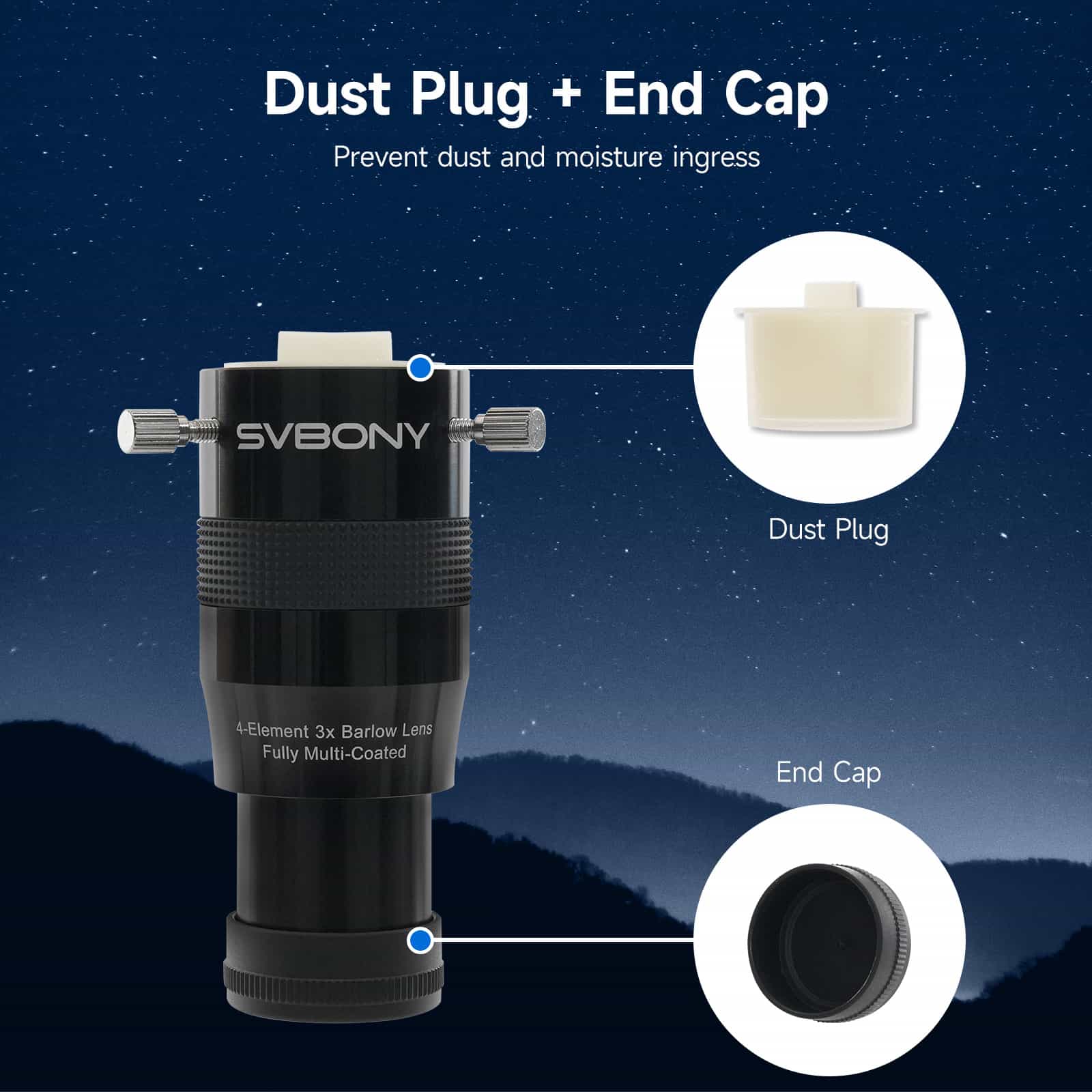

- Protective dust caps
The SVBONY SV216 3× Barlow Lens is an excellent upgrade for astronomers seeking higher magnification without sacrificing contrast or image quality.
