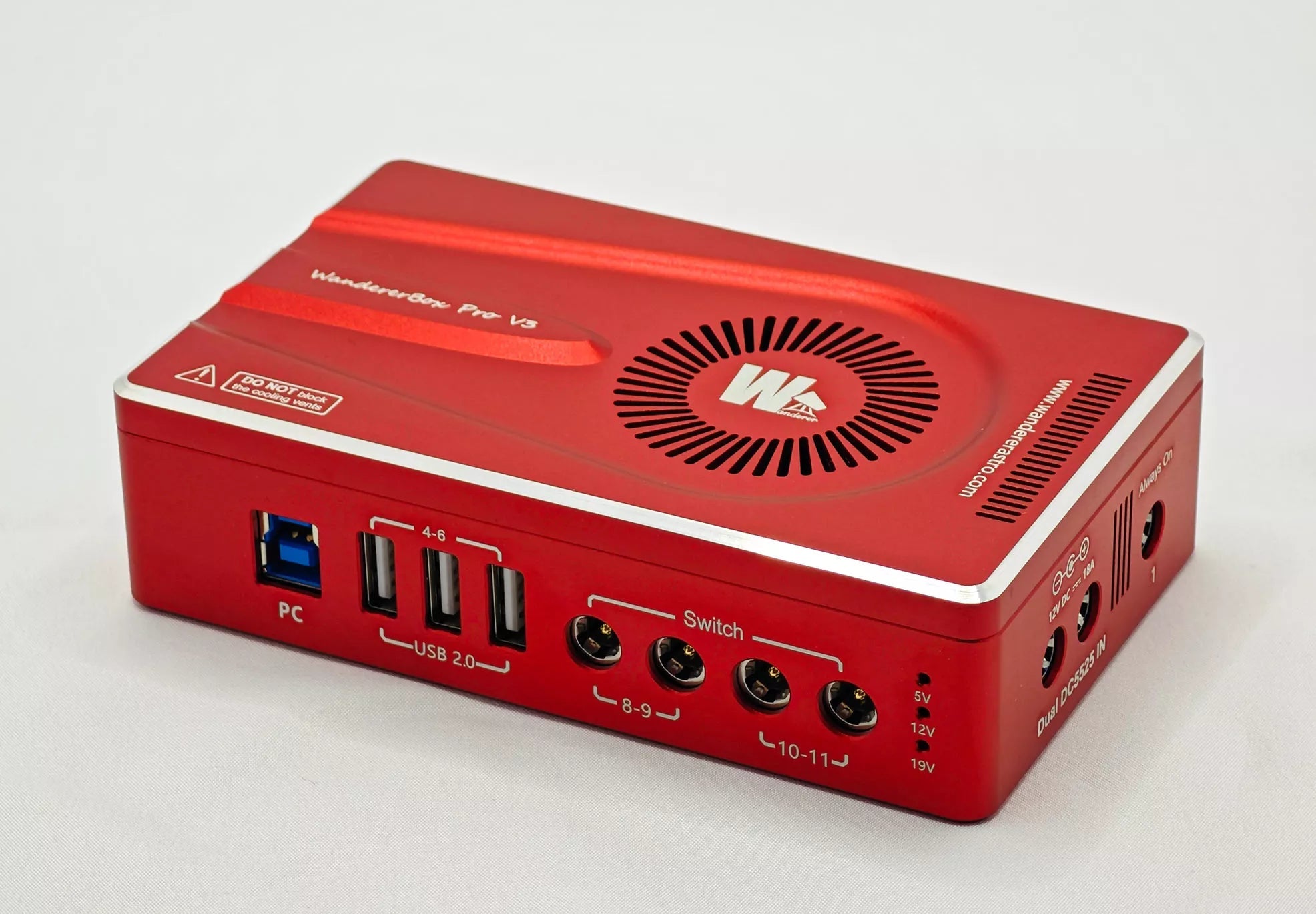

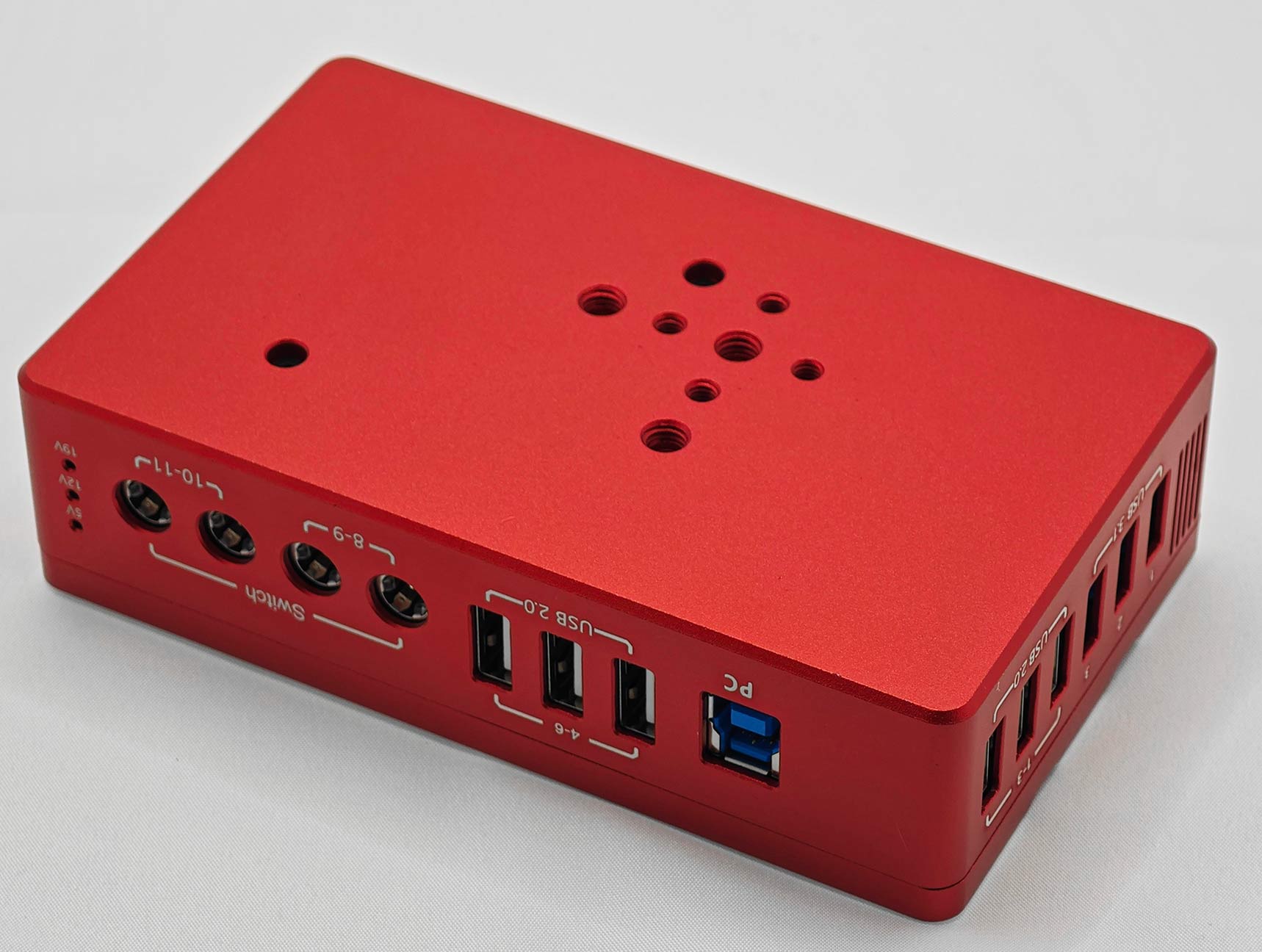

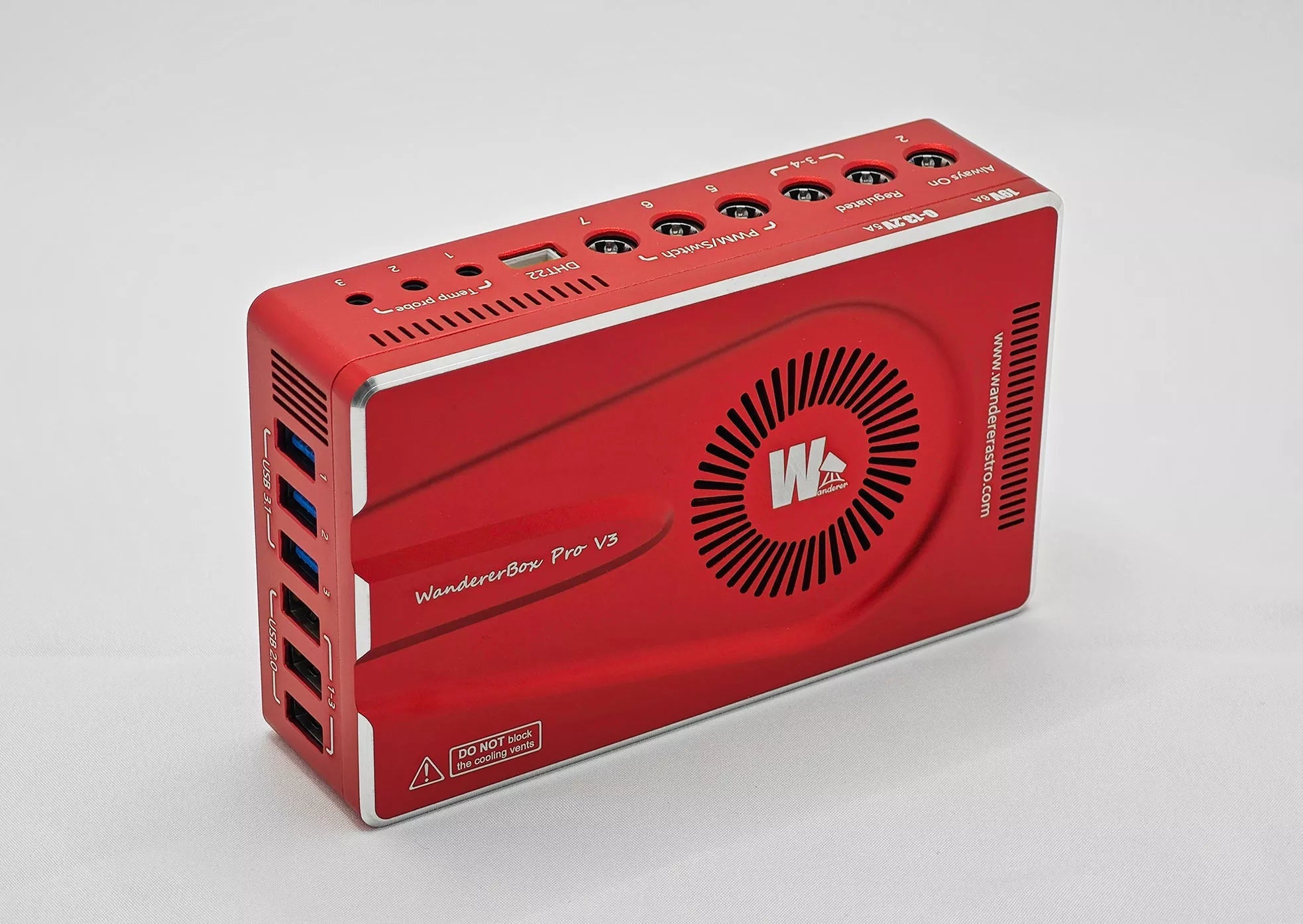

WandererBox Advanced Power Distribution Hub
Boost your astrophotography setup with the WandererBox advanced power distribution hub, designed to deliver stable, flexible, and intelligent power management for complex imaging rigs.

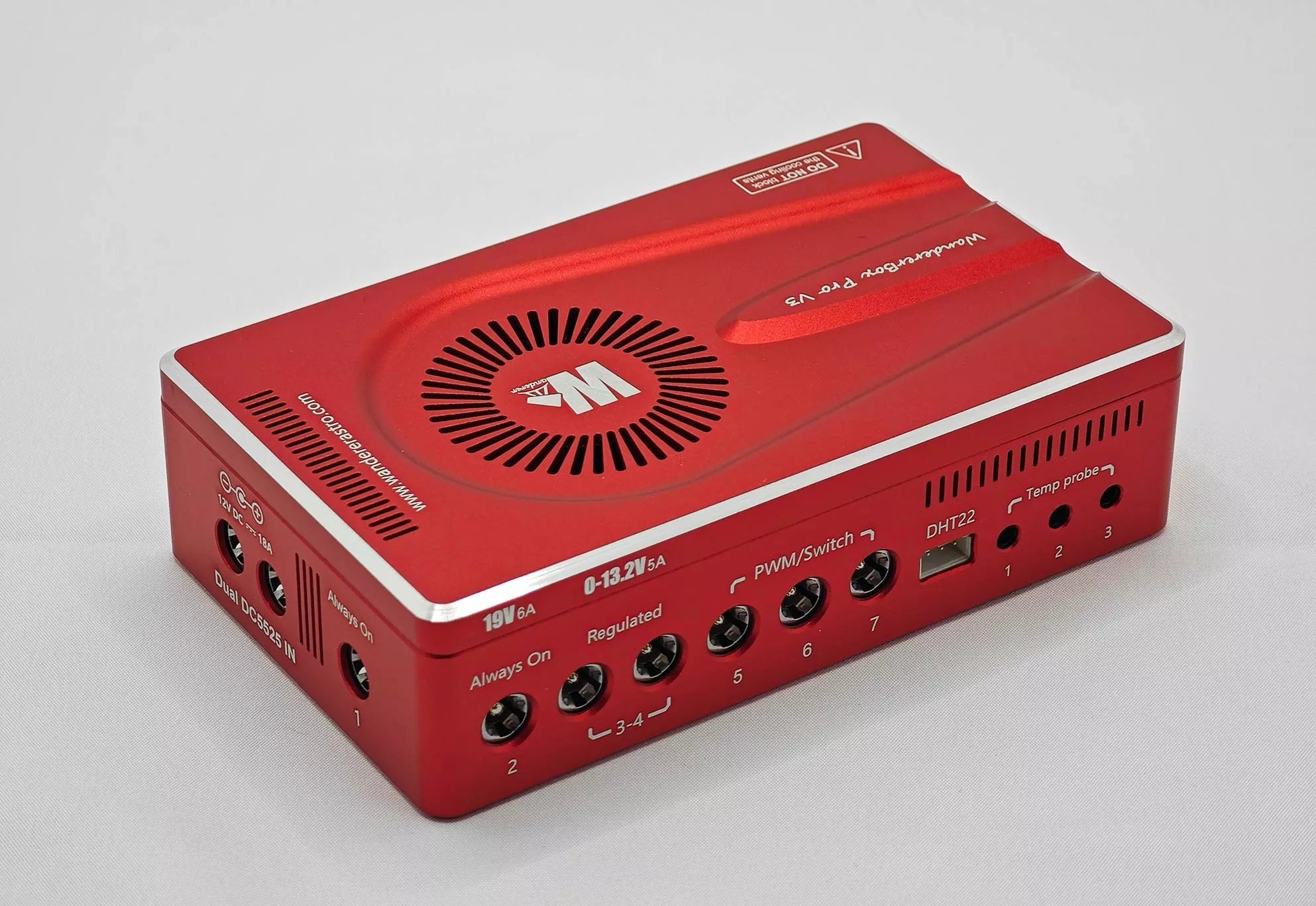

Power Output Configuration
- 1 × 19V 6A output – ideal for mini PCs (e.g. Intel NUC)
- 2 × 5–13.2V 5A regulated outputs (switchable)
- 3 × PWM dew heater outputs (also configurable as 12V outputs)
- 4 × switchable 12V outputs
- 1 × always-on 12V output
USB Connectivity

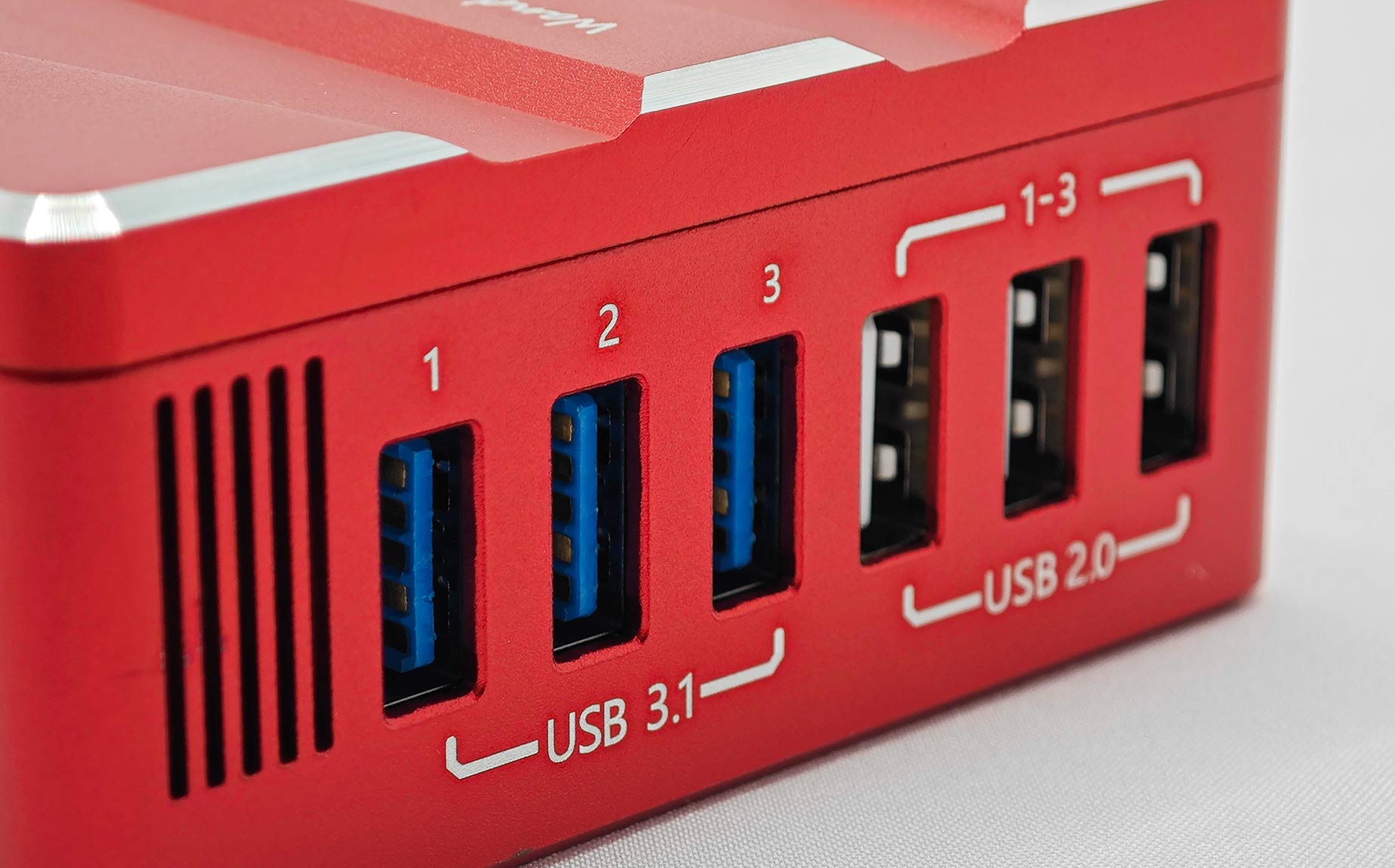

- 3 × USB 3.1 ports
- 6 × USB 2.0 ports
- Built-in 12V-to-5V step-down module
- Maximum 6A continuous USB current (switchable)
Environmental Monitoring & Dew Control
Supplied as standard with environmental sensors — no extras required.

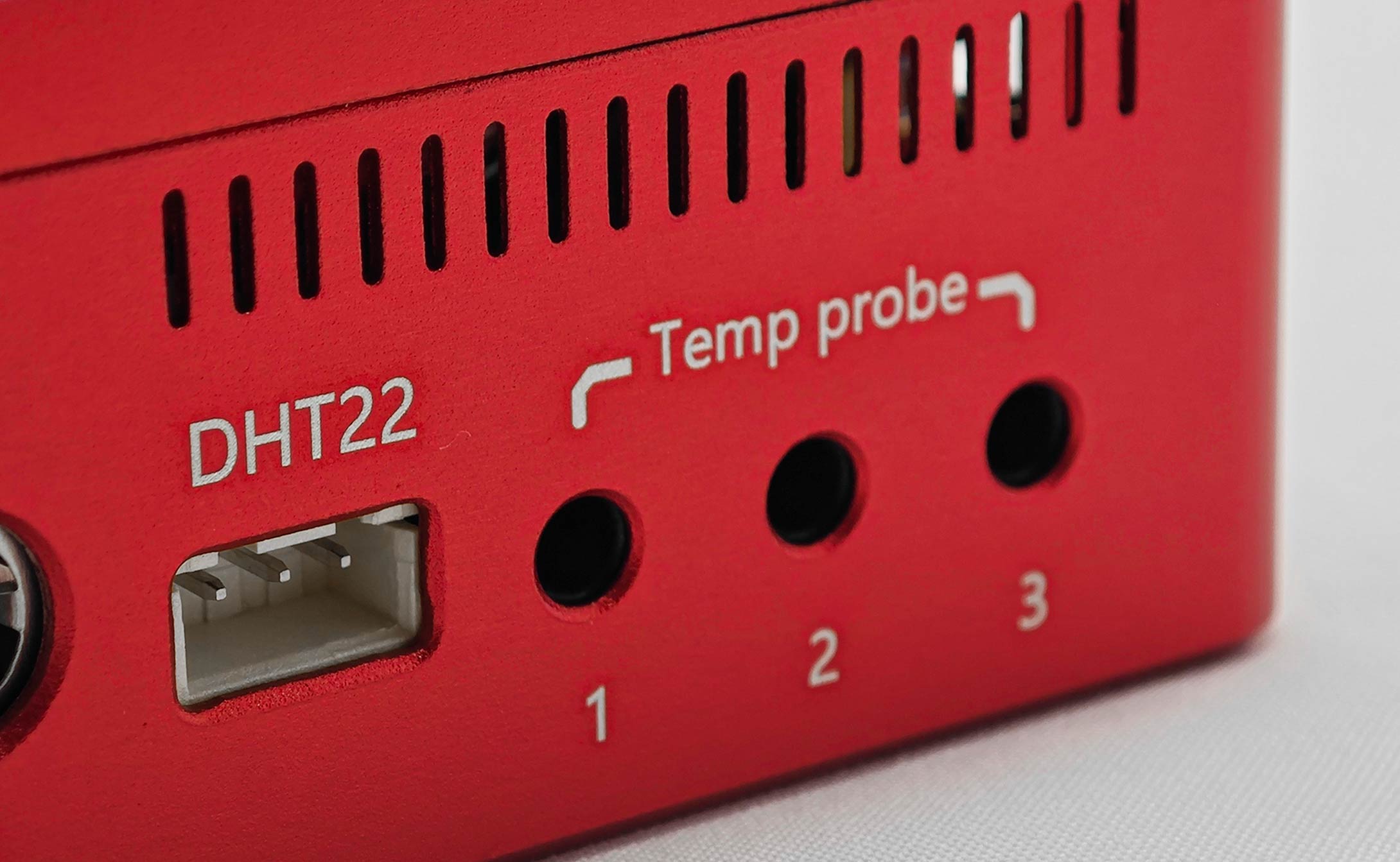

- 1 × DHT22 temperature & humidity sensor
- 3 × temperature probes
- 3 independent dew heater control modes:
- Dew point temperature difference mode
- Constant temperature mode
- Manual mode
High-Power & Voltage Regulation
A built-in 5–13.2V adjustable regulator ensures stable power delivery even when input voltage fluctuates — particularly beneficial for sensitive camera equipment.
The 19V 6A output provides over 120W peak power, supporting high-load tasks such as image pre-processing on mini PCs.
Thermal Management & Protection

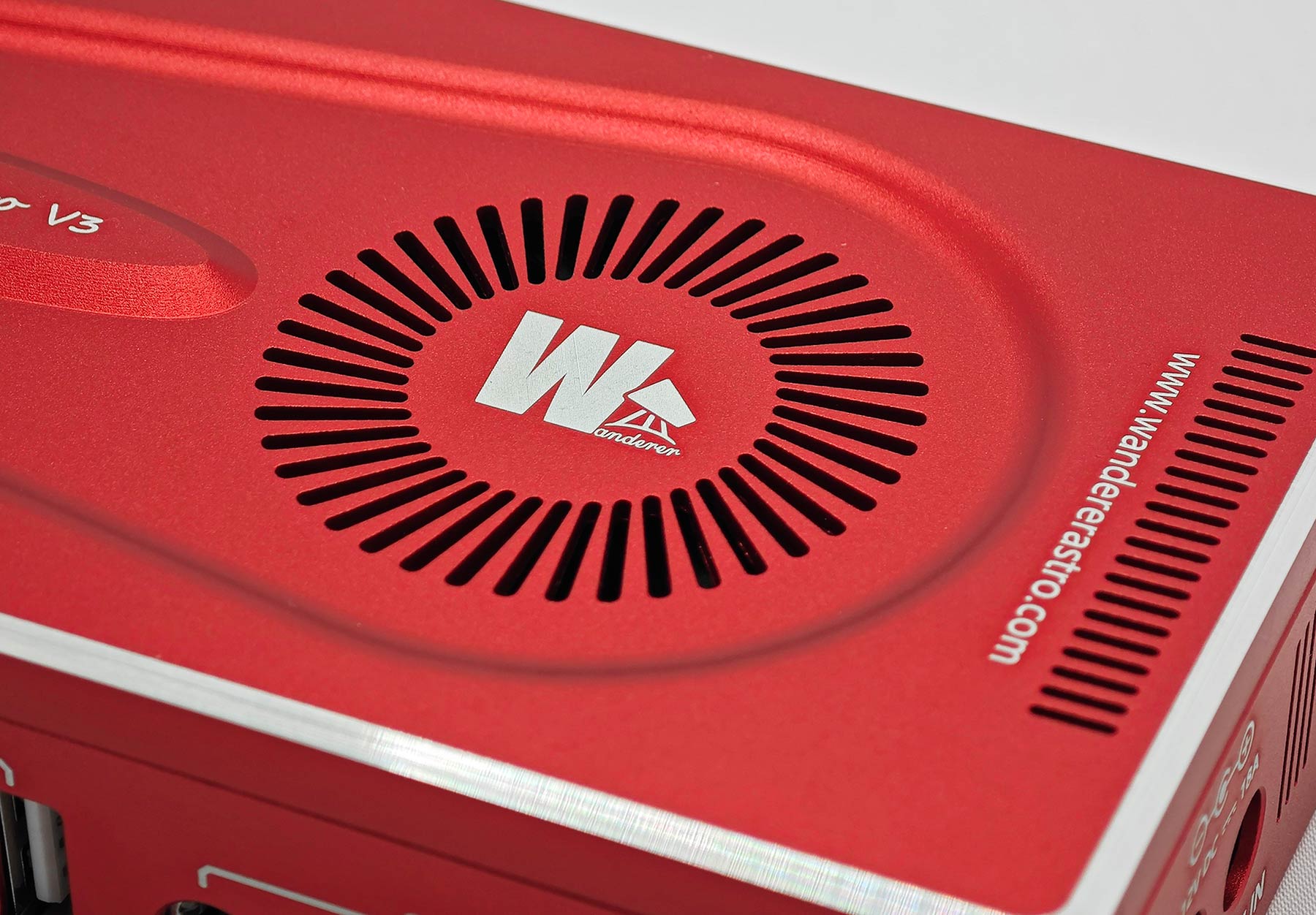

With a maximum input current of 18A, the WandererBox features intelligent cooling using a quiet magnetic fan that activates automatically based on power consumption.
- Electrophoresis protection
- Short-circuit protection
- Over-current protection
- Electrostatic discharge protection
Monitoring & Status Indicators
Real-time monitoring includes input voltage/current, 19V output current, and 5–13.2V regulator current, with support for current calibration.
Clear LED indicators show the status of 19V, 12V, and 5V outputs at a glance.
Advanced Customisation
Extensive software configuration options allow full control over your power system:
- Switch mode selection
- Custom switch naming
- USB device naming
- Dew heater mode configuration

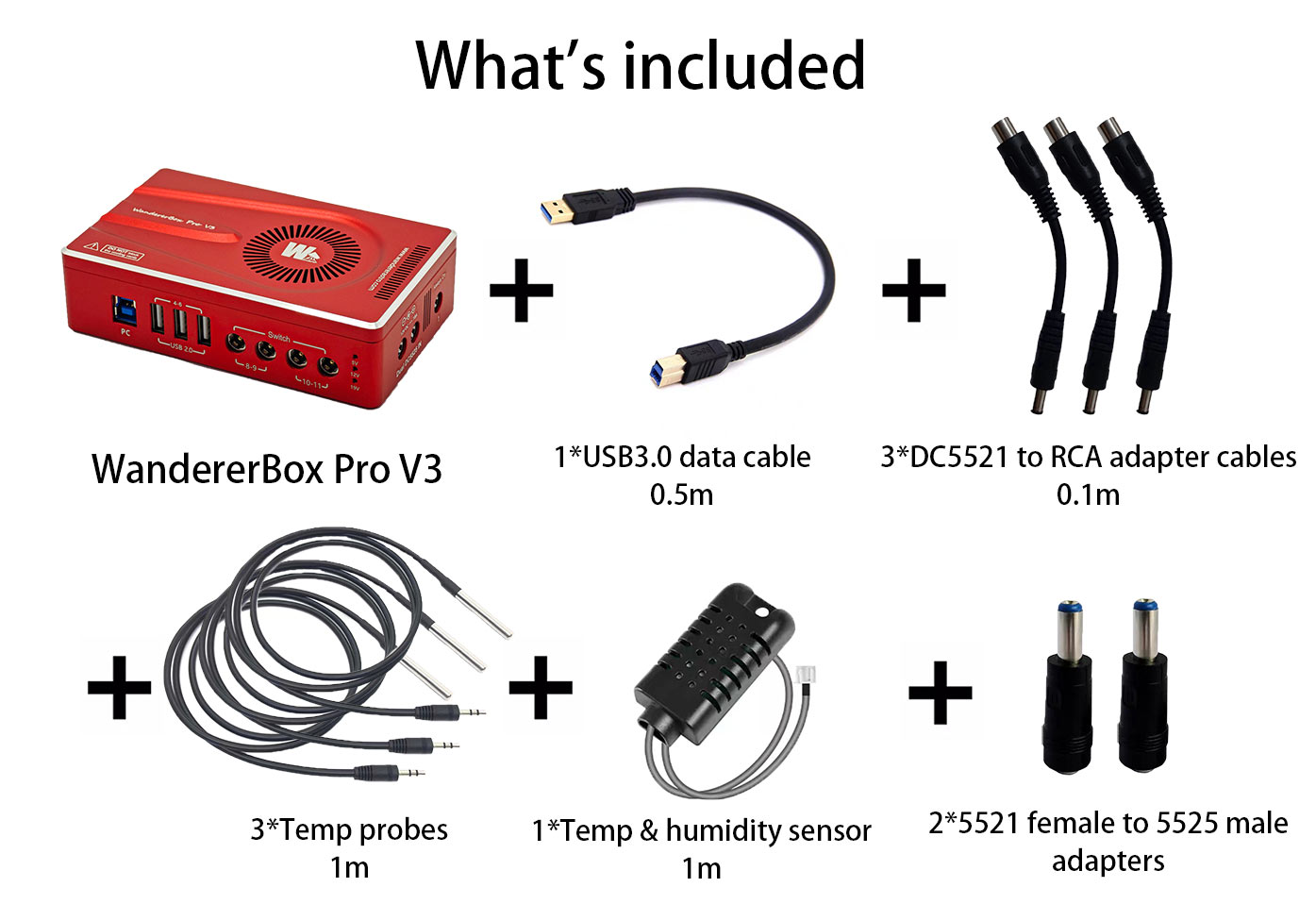

Specifications & Packaging
