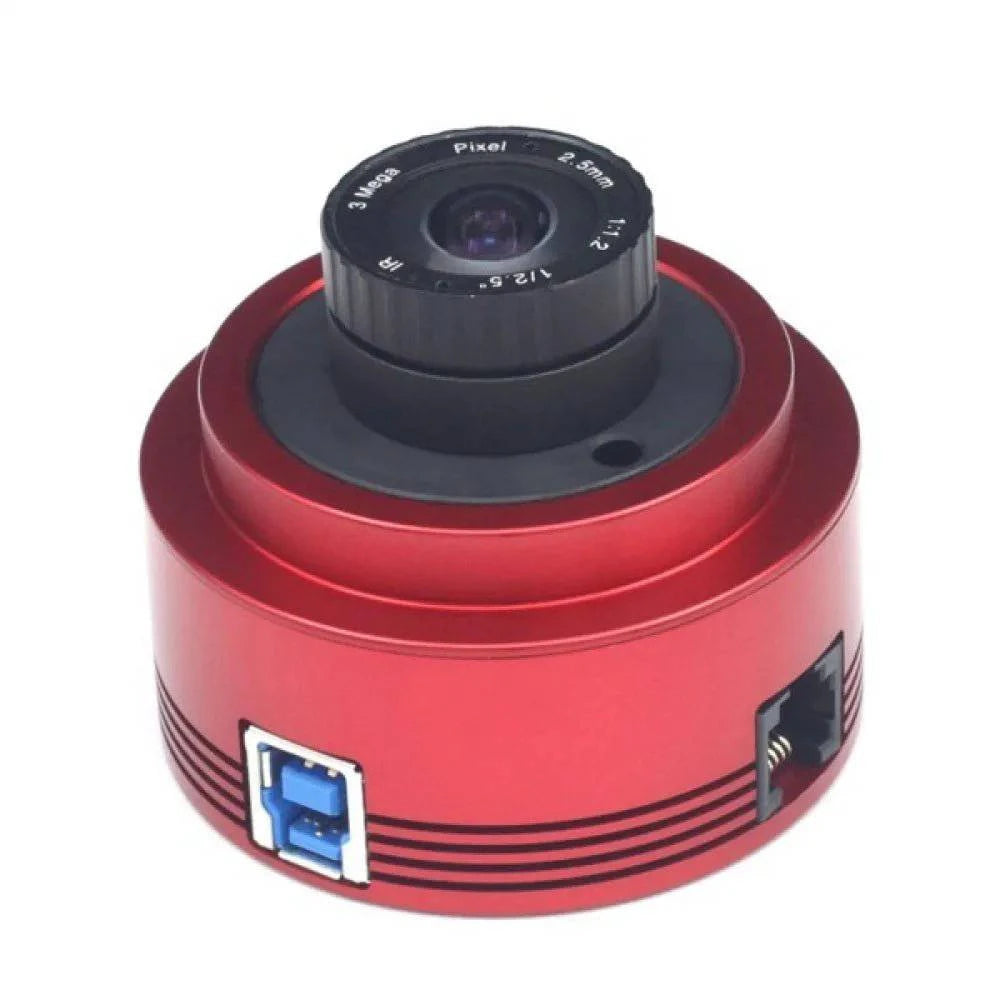

ZWO ASI 178MC USB3.0 Back-Illuminated Colour CMOS Camera

Experience cutting-edge technology with the ZWO ASI 178MC, featuring a 1/1.8" 6.4M pixel IMX178 sensor with SONY STARVIS and Exmor R technology. This back-illuminated camera provides ultra-low read noise of just 2.2e, high sensitivity, and 14bit ADC for superior performance in Astro-photography and microscopy applications. Backed by a 2-year warranty, the ASI178MC delivers premium performance in a versatile, compact package.

ZWO ASI 178MC High-Speed Connectivity and Versatility

With its USB3.0 connection, the ZWO ASI 178MC  ensures lightning-fast data transfer, making it compatible with newer laptops while maintaining backward compatibility with USB2.0. Its high frame rates allow you to capture detailed, crystal-clear images. Please note: for the best results, we recommend using a USB3.0 compatible system to take full advantage of this camera's high frame rates.

ZWO ASI 178MC Ideal for High-Magnification Lunar and Solar Imaging

The ASI178MC excels in high-magnification Lunar and Solar imaging, making it an excellent choice for those focusing on planetary details. It can also handle deep-sky imaging with exposures of up to 1000 seconds. As a colour camera, it simplifies the imaging process by removing the need for filters and filter wheels, allowing you to focus on capturing beautiful images.

ZWO ASI 178MC Features and Specifications

• Resolution: 3096X2080 at up to 30fps (14bit ADC) or 60fps (10bit ADC)
• Exposure Range: 32µs-1000s
• Auto-guider Port: Included for enhanced precision

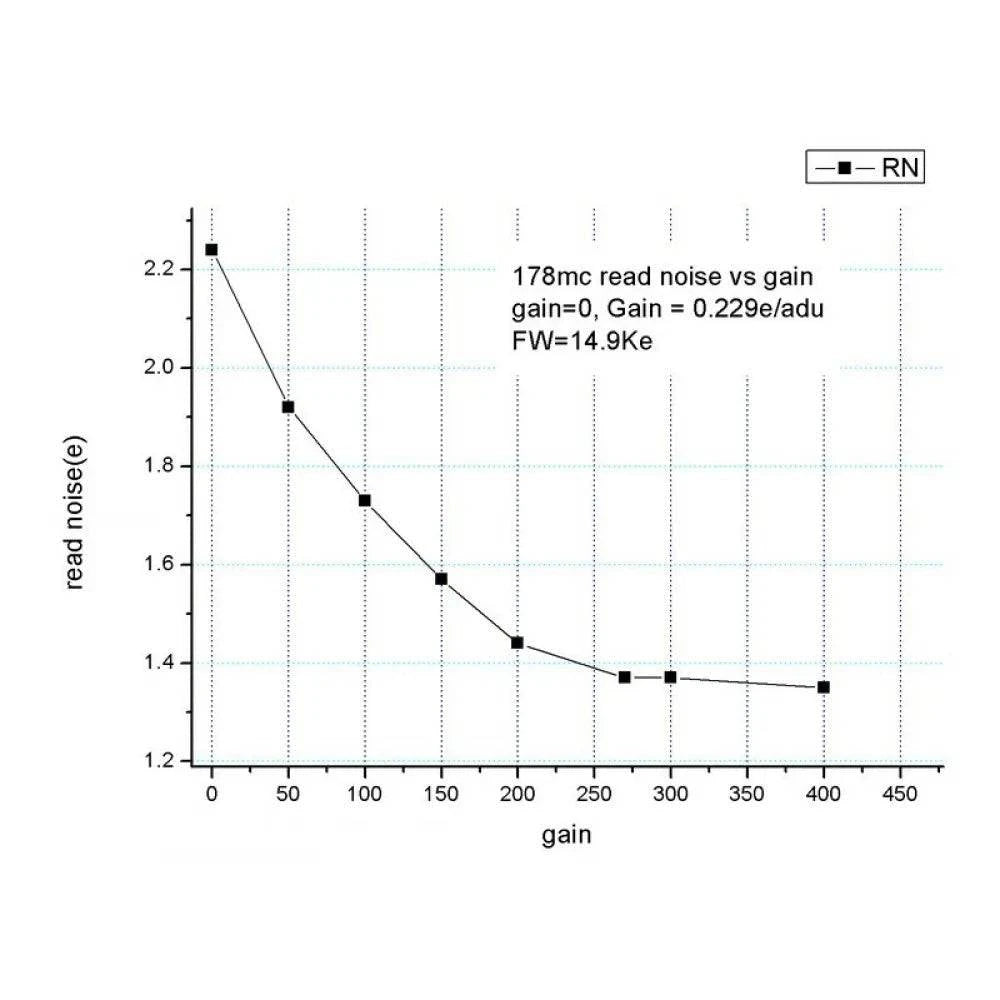

• Read Noise: Ultra-low 1.5e for clear imaging
• High Sensitivity: Ideal for Astro and microscopy applications
• Full Aluminium Housing: Robust design with a standard 2" interface
• Included Accessories: 2.5mm 170-degree all-sky lens, T-thread to C-mount adapter
• Sensor: 1/1.8" CMOS IMX178
• Pixel Size: 2.4µm
• Sensor Size: 7.4mm*5mm
• Diagonal: 8.92mm
• Interface: USB3.0 (backward compatible with USB2.0)
• Bit Rate: 14bit output (14bit ADC)
• Adaptor: 2" / 1.25" / M42X0.75
• Dimensions: φ62mm X 36mm
• Weight: 120g or 4.2 ounces (without lens)
• Working Temperature: -5°C to 45°C
• Storage Temperature: -20°C to 60°C
• Relative Humidity: 20%-80% (working), 20%-95% (storage)

Software and Drivers

The ZWO ASI 178MC comes with Firecapture and SharpCap software, as well as drivers for immediate use. For optimal performance, we recommend using the latest version of Firecapture, which can be downloaded from the developers' websites. Both software solutions are included on the CD for your convenience.

ZWO ASI 178MC What's Included:

• ZWO ASI178MC USB3.0 Camera
• 170-degree All-Sky Lens
• T-thread to C-mount adapter
• USB3.0 Cable
• Drivers and Software CD
• 2 Years Warranty

The ZWO ASI 178MC  USB3.0 Back-Illuminated Colour CMOS Camera is the perfect tool for astrophotographers looking for high-quality lunar, solar, and deep-sky imaging capabilities in a user-friendly, powerful camera. Its advanced Sony sensor technology and versatile performance make it an excellent addition to your setup. Order yours today!
