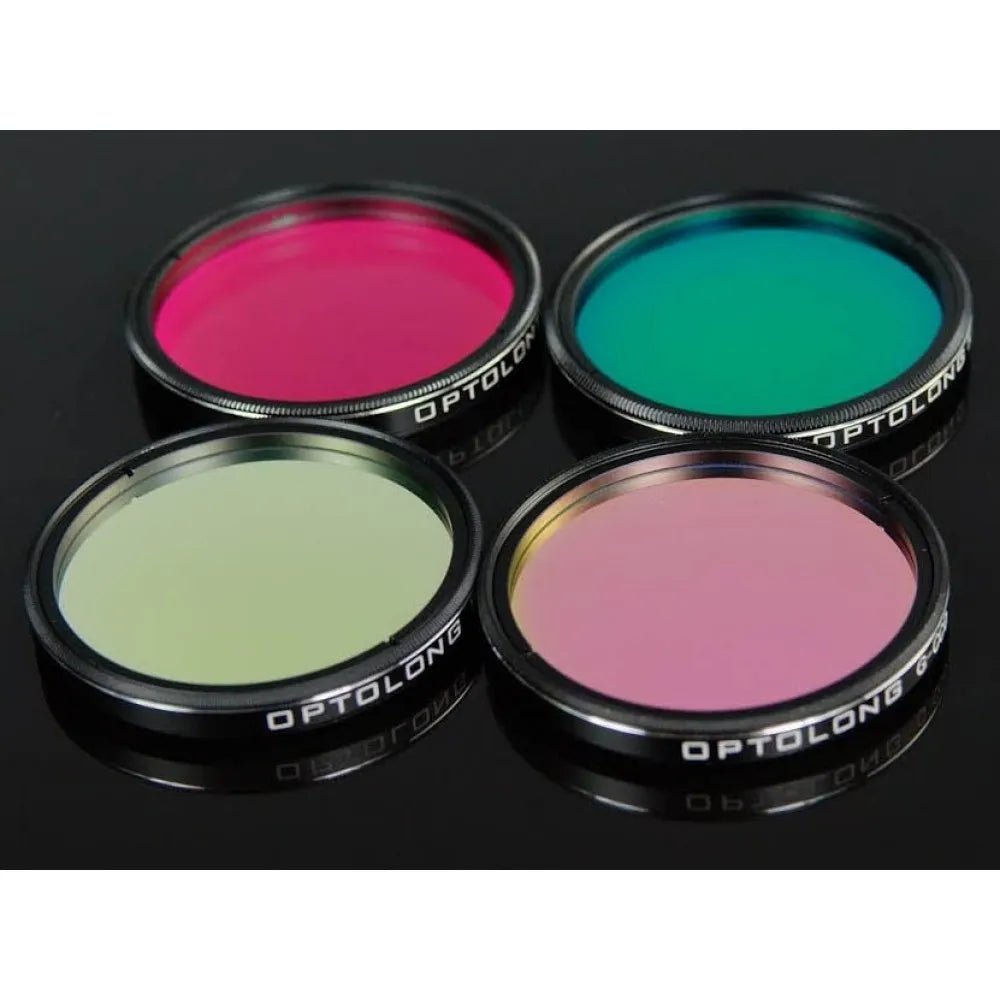

Optolong LRGB-CCD Set

The Optolong LRGB-CCD Set is designed for maximum contrast and with extremely high gradients for clear differentiation of colours. The LRGB filter set divides the spectrum into its components Red, Green, Blue, and Luminance. OIII emission overlaps on blue and green filters with maximum transmission to allow high efficiency and natural colour imaging. Gap between green and red filters serves to block out the primary Sodium light pollution line at 589nm and improves colour balance and separation.

Optolong LRGB-CCD Set description

Optolong LRGB-CCD Set is designed for maximum contrast and with extremely high gradients for clear differentiation of colours. The LRGB filter set divides the spectrum into its components red, green, blue, and luminance.

OIII emission overlaps on blue and green filters with maximum transmission to allow high efficiency and natural colour imaging. Gap between green and red filters serves to block out the primary Sodium light pollution line at 589nm and improves colour balance and separation.

• RGB, parfocal: 1:1:1
• Create images in their true original colours showing a wealth of natural detail
• Steep bandpass filters to eliminate UV and IR interference
• Includes Luminance (UV/IR Cut), Red, Green, and Blue filters to reproduce the star's colour

Optolong LRGB-CCD Set Specification

1. Optolong LRGB-CCD Set Introduction

Designed for maximum contrast with steep gradients, Optolong LRGB-CCD Set ensure precise differentiation of colours for vibrant astrophotography.

2. Optolong LRGB-CCD Set Reference Spectrum

This curve is for reference only and not representative of the final product data.

• Horizontal axis: Wavelength in Nanometers (nm)
• Vertical axis: Transmission in %

3. Optolong LRGB-CCD Set Coating Technology

• Multi-layers anti-reflection coating
• Non-cementing optical substrate coating
• Ion-assisted deposition technology for durability, scratch resistance, and thermal stability
• Precision coatings for high transmission and optical density of off-band

5. Optolong LRGB-CCD Set Packaging

2019 NEW packaging with improved durability and design.

6. Optolong LRGB-CCD Set Performance

I. M51

• Telescope: GSO 10" RC
• Camera: QHYCCD QHY 695A
• Mount: SkyWatcher AZ EQ6 GT
• Exposure: 100x300"

II. Globular Cluster M5

• Telescope: Sky-Watcher Esprit 150 f/7 refractor
• Camera: QHY 16200-A
• Exposure: 8hr 42m

III. van den Bergh 152 and Barnard 175

• Telescope: Sky-Watcher Esprit 150 f/7 refractor
• Camera: QHY 16200-A
• Exposure: 11hr 10m

Optolong LRGB-CCD Set Warm Prompts

• About colour: Product colours may vary due to ambient light or display differences.
• About coating: Different lighting conditions may affect the visible coating colours, which is normal.
• About style: Product design and parameters are subject to updates and improvements.

2. Optolong LRGB-CCD Set Reference Spectrum

※This curve is only for reference, and is not used as the final product data.

Optolong LRGB-CCD Set

How to read the chart?

▲The horizontal axis is the Wavelength in Nanometers (nm).

▲The vertical axis is transmission in %.

▲The WHITE line shows the transmission of the L-CCD filter. R-CCD filter line is shown in RED. G-CCD filter line is shown in GREEN. And the B-CCD link is shown in BLUE.

Optolong LRGB-CCD Set

3. Optolong LRGB-CCD Set Coating Technology

·Multi-layers anti-reflection coating

·Non-cementing optical substrate coating

·Optolong LRGB-CCD Set adopts precision coating based on Ion-assisted deposition coating technology for durability and resistance to scratching, as well as stability on CWL(central wavelength) no deviation affected by temperature change.

·Planetary rotation system offers precision and homogeneity of coatings ensuring high value on transmission of pass-band and Optical density of off-band.

Optolong LRGB-CCD Set 2019 NEW package

6. Optolong LRGB-CCD Set Performance

Ⅰ. M51 © 李召麒

Technic Data:
Telescope: GSO 10" RC
Camera: QHYCCD QHY 695A
Mount: SkyWatcher AZ EQ6 GT
Processing: Adobe Photoshop CC, PixInsight 1.8.8
Filters: Optolong B, Optolong G, Optolong R, Optolong L
Date: 2020年1月2日
Exposure: 100x300"
Copyright@李召麒

Ⅱ. Globular Cluster M5© Astrodoc Ron Brecher

Globular cluster M5 contains hundreds of thousands of stars and is one of my favourite objects to view in any scope. Bright globular clusters remind me of sugar spilled on a black table cloth.

Optolong LRGB-CCD Set

Sky-Watcher Esprit 150 f/7 refractor, QHY 16200-A camera,

Optolong L, R, G and B filters, Paramount MX, unguided.

Acquisition, and focusing with TheSky X. Automation with CCD Commander.

Equipment control with PrimaLuce Labs Eagle 3 Pro computer.

All pre-processing and processing in PixInsight. Acquired from my SkyShed in Guelph.

No Moon, average to above average transparency and average seeing. Data acquired May 25 – June 4, 2019.

23x10m L, 19x3m L, 16x5m R, 16x5m G and 15x5m B (Total = 8hr42m)
Image scale 1.15 arcsec per pixel

III. van den Bergh 152 and Barnard 175 © Astrodoc Ron Brecher

van den Bergh 152 (vdB 152; a.k.a. Cederblad 201) is the prominent blue reflection nebula on the right side of this image. It lies at the end of Barnard 175, the pillar of dust filling this field. The dark area connected to vdB is a Bok globule, a dense accumulation of cosmic dust from which stars are often born. The whole complex lies in the direction of the constellation Cepheus, about 1400 light years away and spanning 7 light years. Interestingly, the bright star illuminating vdB 152 was likely not born within this complex as it is moving through space at a different speed than the nebula.

Tekkies:

Sky-Watcher Esprit 150 f/7 refractor, and QHY 16200-A camera with Optolong LRGB filters. Acquisition, focusing, and control of Paramount MX mount, unguided, with TheSkyX. Focus with Optec DirectSync motor and controller. Automation with CCDCommander. Equipment control with PrimaLuce Labs Eagle 3 Pro computer. All pre-processing and processing in PixInsight. Acquired from my SkyShed in Guelph. Average or better transparency and seeing. Data acquired June 25-July 1, 2020 in a moderately moonlit sky.

90x5m L, 36x5m R, and 22x5m G and B (Total = 11hr10m)
Image scale 1.15 arcsec per pixel

Warm prompt

●About colour: due to the influence of ambient light, colour difference of the display and flash photography, the colour of the product may have some colour difference. Detailed colour is in accordance with the final product.

●About coating: the interference filter will show different colours under different light, which is a normal phenomenon. Please refer to the material object.

●About the style: in order to improve the product, the change of design/appearance/parameters has not been updated in time. Please see the subject produce.

●About the description: the series of this product have the same material, technology and design, different sizes only, please note.
