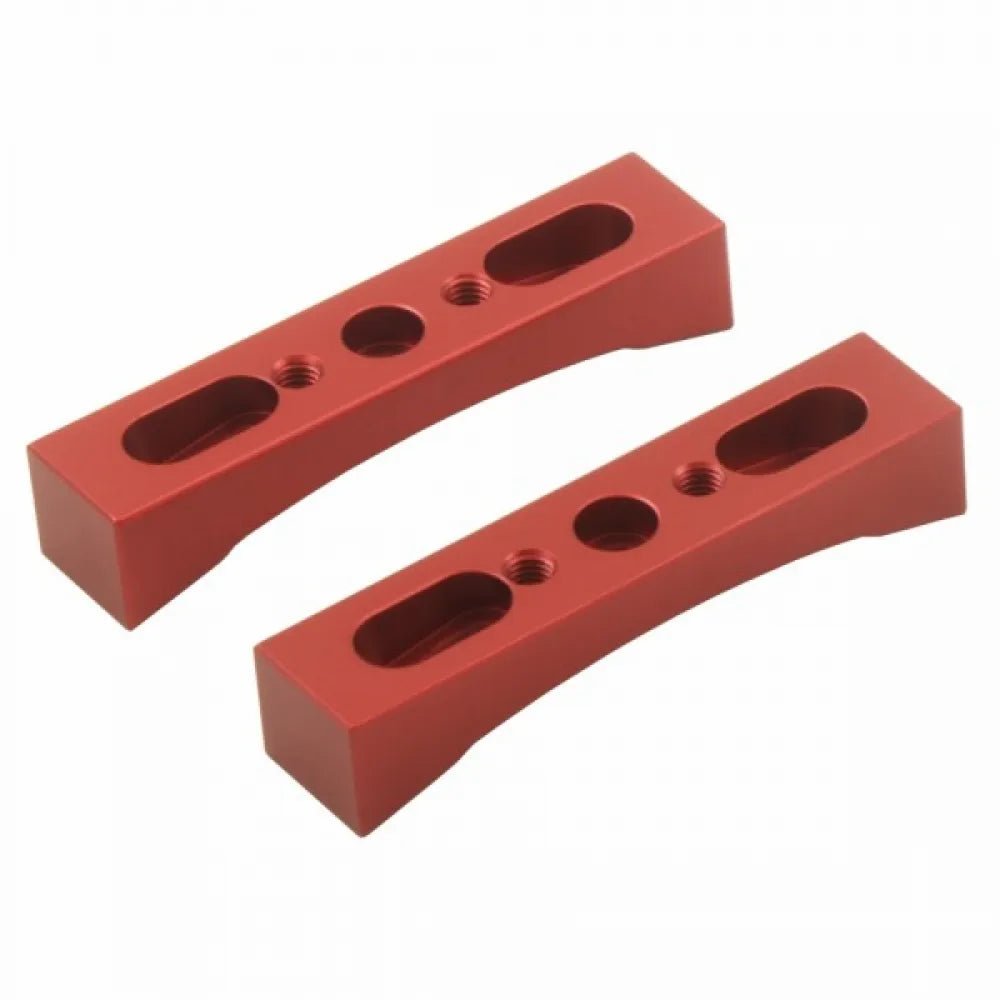

Enhance Your Telescope Setup with PLUS Curved Blocks
The Primaluce Labs PLUS curved blocks, available in sets of two, offer a convenient solution for upgrading your Celestron C8, C9.25, C11, Edge HD 800, Edge HD 925, Edge HD 1100, or Meade SC and ACF 8" telescopes.
Installation is a breeze—simply follow these steps:
-
Remove the existing screws from your telescope.
-
Attach one curved block to the top end of the telescope tube and the other at the rear end. Secure them in place using the same screws. Ensure the screws are of adequate length, especially if the manufacturer initially supplied incorrect ones.
-
Once the curved blocks are securely in position, you can easily connect the 350mm or 495mm PLUS Losmandy dovetail bar using two M6 screws for each curved block. (These screws are included in the package.)
Please note that the dovetail bar is not included with the radius blocks and must be purchased separately. Be sure to select the appropriate length for your telescope based on its size. If you're unsure about compatibility or sizing, don't hesitate to reach out to us for assistance.
Upgrade your telescope setup effortlessly with PLUS curved blocks and enjoy improved functionality and flexibility in your stargazing endeavors.
