Primaluce Labs

PLLVIX350P

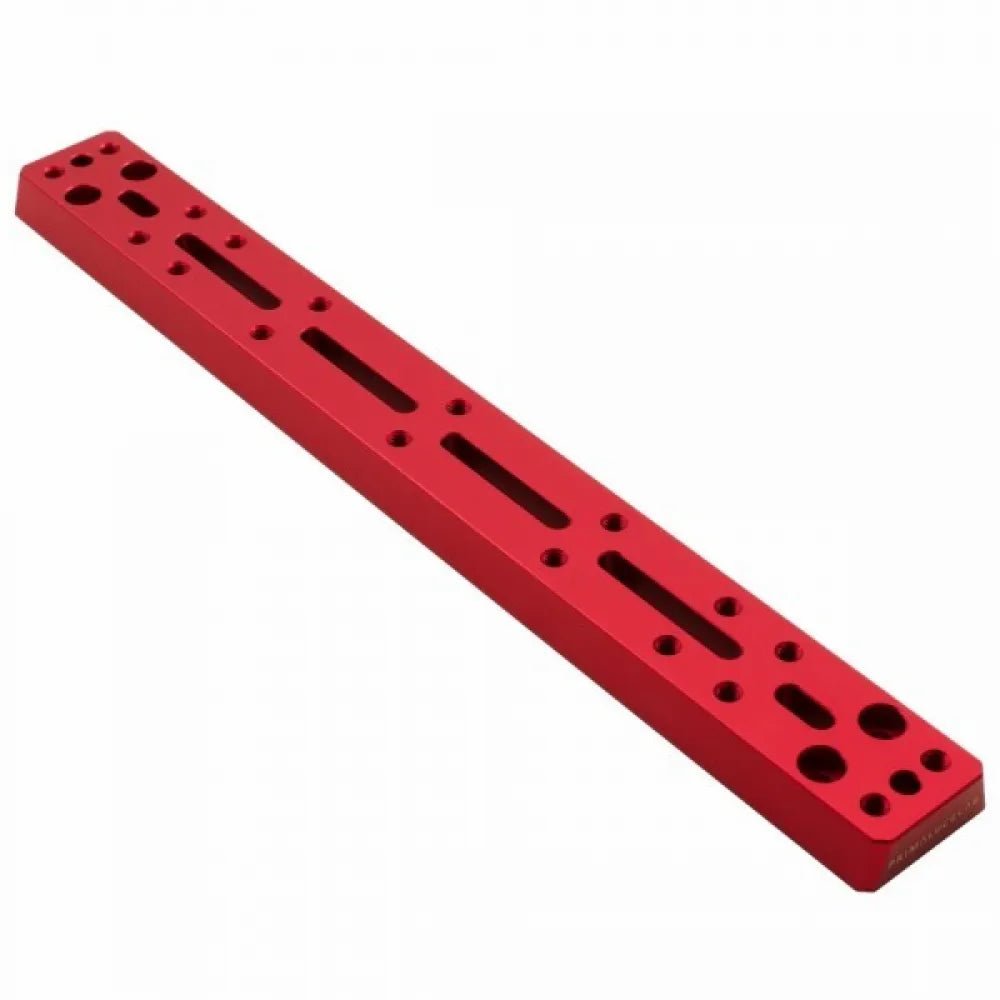

Primaluce Lab 350mm PLUS Vixen -mounting rail Dovetail Bar

£68.00

Quantity

Vixen Plate 350mm PLUS – PrimaLuceLab Mounting Plate

The Vixen Plate 350mm PLUS by PrimaLuceLab is a premium-quality dovetail mounting rail, part of the modular PrimaLuce Universal System (PLUS). Designed for versatility and mechanical strength, it’s the ideal base for custom telescope setups used in both astrophotography and visual observation.

Precision Engineering

This 350mm plate is CNC-machined from a single solid aluminum block to ensure structural rigidity and precise tolerances. The surface is sandblasted for a fine finish and then hard-anodized, making it resistant to scratches, corrosion, and environmental wear.

Mounting Configurations

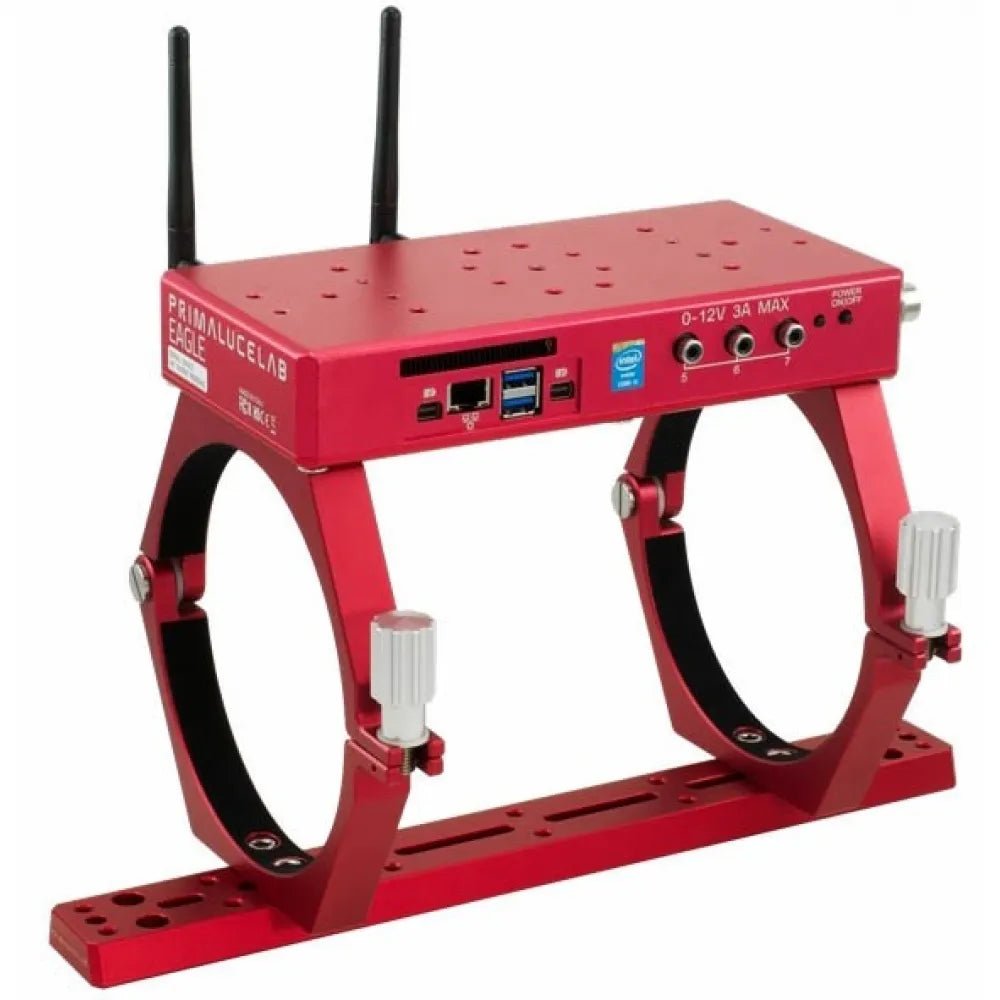

  • Below support rings: Attach your telescope directly to mounts with Vixen-style saddles.
  • Above support rings: Reinforce your telescope setup and add accessories like guide rings or clamps.

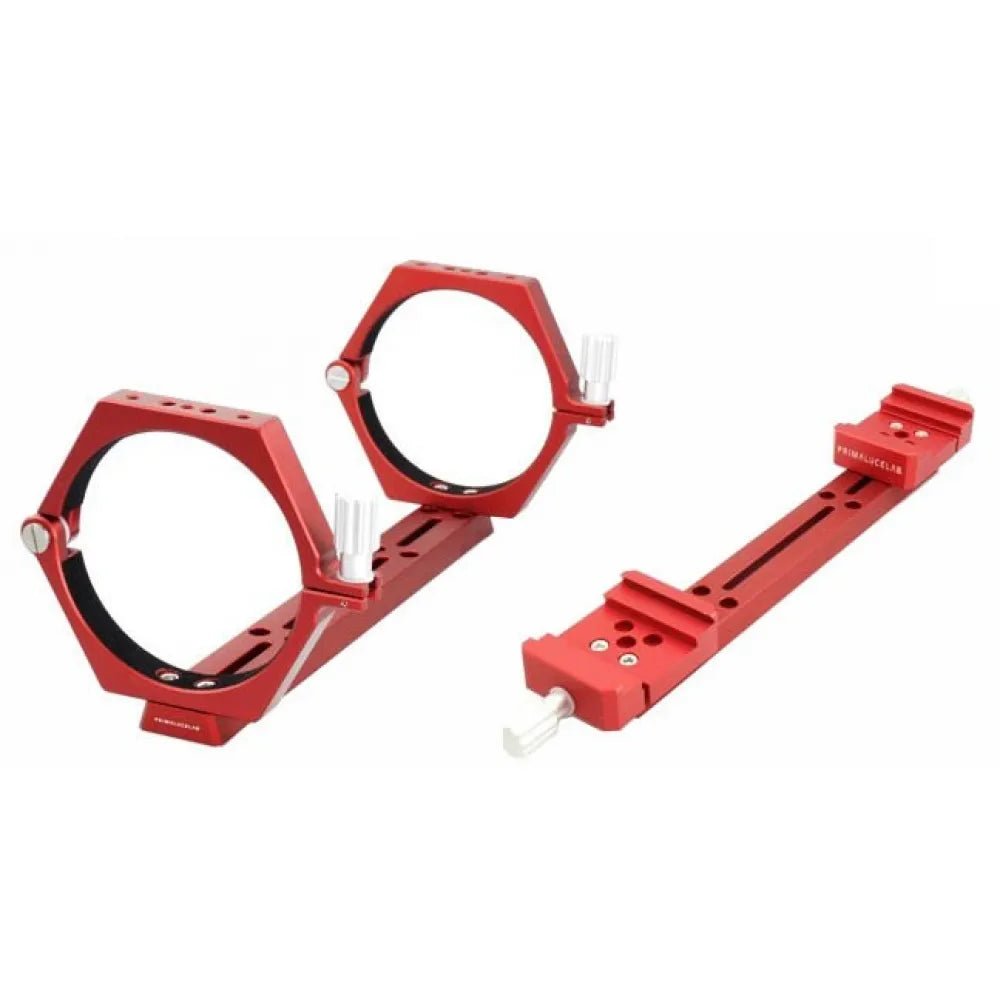

  • Side-by-side setup: Combine with two PLUS dovetail clamps to mount two scopes in parallel.
  • Camera base: Compatible with Arca-Swiss photographic heads for wide-field imaging.

PLUS System Compatibility

This  is mounting rail is compatible with other components from the PLUS system, including support rings, guide rings, and EAGLE control units. Multiple threaded holes and slots allow for seamless integration while maintaining maximum rigidity and comfort during use.

Cross-Brand Support

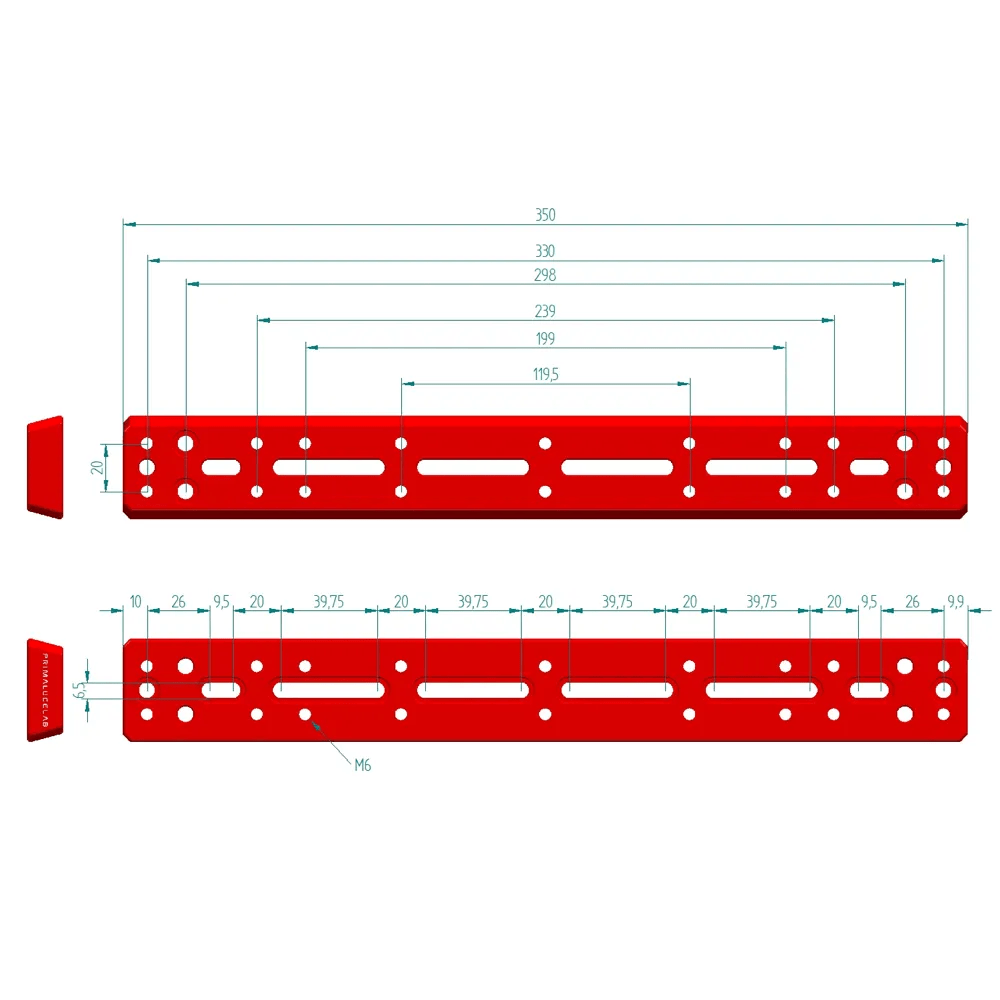

Thanks to its standardized hole pattern and central slots, the Vixen mounting rail 350mm PLUS can also be used with third-party rings and accessories. Whether you're expanding your PLUS setup or working with gear from other brands, this  is a mounting rail is a highly adaptable base.

Specifications

  • Length: 350mm (13.77")
  • Material: CNC-machined aluminum
  • Finish: Sandblasted and hard-anodized
  • Weight: Approx. 0.4 kg
  • Mount Compatibility: Vixen-style and Arca-Swiss clamps
  • System Compatibility: Fully compatible with PrimaLuceLab PLUS system

Conclusion

If you're looking to build a precise, reliable, and expandable telescope support system, the Vixen Plate 350mm PLUS offers exceptional quality and flexibility. It’s a go-to solution for amateur and professional astronomers who demand high mechanical stability in their equipment.

Primaluce Lab 350mm PLUS Vixen -mounting rail Dovetail Bar

£68.00
