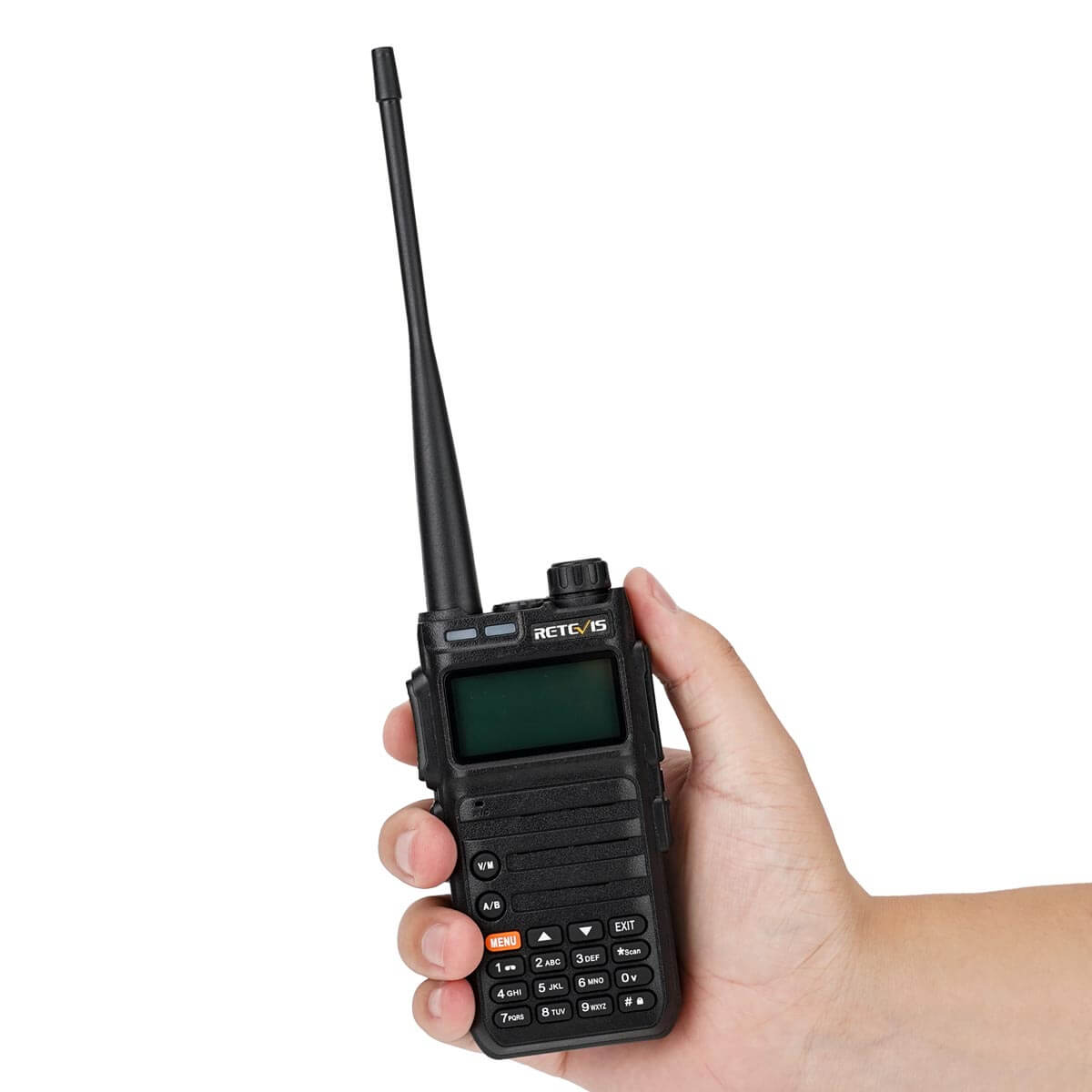

Retevis RA685 5W Dual band Two way Radios Amateur Radios
1, The dual band UHF and VHF amateur band Two way radio
Retevis RA685 with the frequency range: 144-146MHZ(RX/TX) 430-440MHZ(RX/TX). The Analog mode Ham radio.
2, High power long range walkie talkies for hams and outdoor activities
The RA685 amateur radio with the power 5w, make the radio's communication range longer than the license-free radios. If you go out for hiking, camping or as your first ham radio, it will be a good choice.
3, Dual standby and dual band display
RA685 comes with the 1.6 inch display, and also supports dispaly two channels. So you can set two channels at the same time. Also dual standby function, can help you monitor two channels at the same time.
4, 128 Channels can be saved
RA685 allows you to save up to 128 channels. Also offers the multi CTCSS/DCS codes groups. It will easy to seek same frequencies which are talking. Or help you find the free channels to talk with your friends.
5, Easy to operate
RA685 offers the full keypad, so you can program your RA685 by its keypad. Very easy and convenient to set your radios when you are out.
Spec
| TOTAL | Frequency Range | 144-146MHZ(RX/TX) 430-440MHZ(RX/TX) | |
| Channel No. | 128 | ||
| Channel Spacing | 25/12.5kHz | ||
| Input voltage | 7.4 VDC | ||
| Battery (standard configuration) | 1800mAH(Li-Ion) | ||
| Battery Life(5-5-90, High power transmission) | About 14 Hours | ||
| Current | Standby | ≤65mA | |
| Receive | ≤450 mA | ||
| Transmit | ≤1.8 A @high power，850 mA @ low power | ||
| Frequency stability | ±2.5ppm | ||
| Operating temperature | -20℃ to +60℃ | ||
| Antenna impedance | 50Ω | ||
| Walkie-talkie size(With battery, but without antenna) | 121×61×33mm | ||
| Walkie-talkie weight(Including antenna and battery) | 223g | ||
| TRANMIT PART | Transmit output power | 5W/3W/1W | |
| Modulation | 16K0F3E@25KHz, 11K0F3E@12.5KHz | ||
| Spurious emission | -36dBm＜1GHz， -30dBm＞1GHz | ||
| FM signal-to-noise ratio | 45dB@25KHz, 40dB @12.5KHz | ||
| Audio distortion | ≤5% | ||
| Modulation limit | ±5.0 KHz@25 KHz，±2.5 KHz@12.5 KHz | ||
| Adjacent channel power | 70dB @ 25KHz，60dB @ 12.5KHz | ||
| (300-3000Hz) Audio response | +1~3dB | ||
| RECEIVE PART | Receiving sensitivity | 0.25μV (12dB SINAD) | |
| Adjacent channel selectivity | ≥60dB@25KHz ,≥55dB@12.5KHz | ||
| Intermodulation immunity | ≥60dB@25KHz , ≥55dB@12.5KHz | ||
| Conducted spurious emissions | ≤-57dB@25KHz, ≤-57dB @12.5KHz | ||
| FM signal-to-noise ratio | ≥45dB@25KHz, ≥40dB @12.5KHz | ||
| Audio output power | 1W @16ohms | ||
| Audio distortion | ≤5% | ||
| Audio response(300-3000Hz) | +1～-3dB | ||
Feature
1, Frequency range: 144-146MHZ(RX/TX) 430-440MHZ(RX/TX)
2. Dual band, Dual Display, Dual Standby
3. High, middle, and low power switching to meet the power requirements of users at different distances, more energy-saving and power-saving
4. Up to 128 memory channels for programming frequency and other various data
5. Multiple display modes such as channel number, frequency, channel frequency, channel name, etc.
6. CTCSS/DCS, DTMF signaling, reject redundant calls from other stations
7. The tail tone is eliminated to avoid the impact noise from the speaker after the call is over
8. VOX voice-activated transmission, no need to press the PTT button to talk normally
9. Emergency alarm, ANI identification and other functions through DTMF
10. DTMF, CTCSS (60.0 -259.9 HZ), DCS signaling codec function
11. 8 step frequency selection (2.5K, 5.0K, 6.25K, 10.0K, 12.5K, 20.0K, 25.0K, 50.0K)
12. Automatic power saving function to extend battery life
13. SOS emergency alert function
14. Computer programming function
15. Wide/narrow band (25KHz/12.5KHz) selection function
16. Digital FM radio (receiving 65-108MHz)
17. Direct selection of keyboard numbers for menu items, the transmit and receive frequency can be manually input
18. Special CTCSS/DCS (frequency hopping function)
