Specifications

• Max Power at STC: 200W
• Open Circuit Voltage (Voc): 23V
• Short Circuit Current (Isc): 11.05A
• Optimum Operating Voltage (Vmp): 19.2V
• Optimum Operating Current (Imp): 10.42A

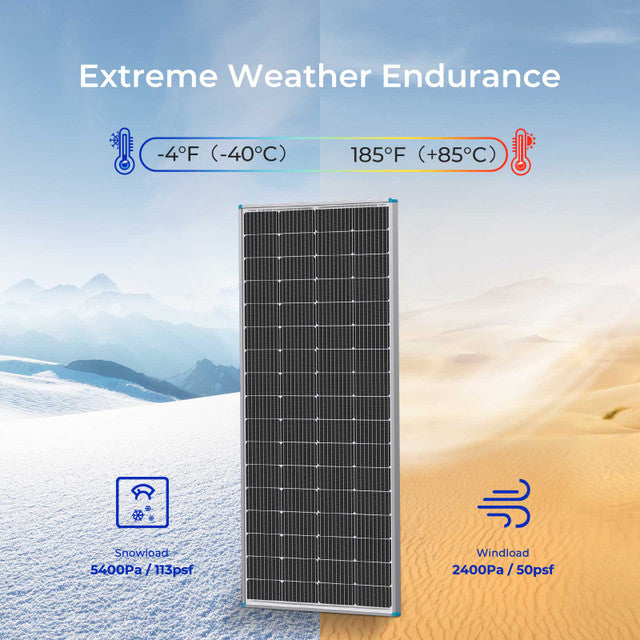

• Operating Temperature: -40°F~194°F / -40℃~90℃
• Maximum System Voltage: 600 VDC UL
• Maximum Series Fuse Rating: 20A
• Output Cable: 13 AWG (2.6 ft long)

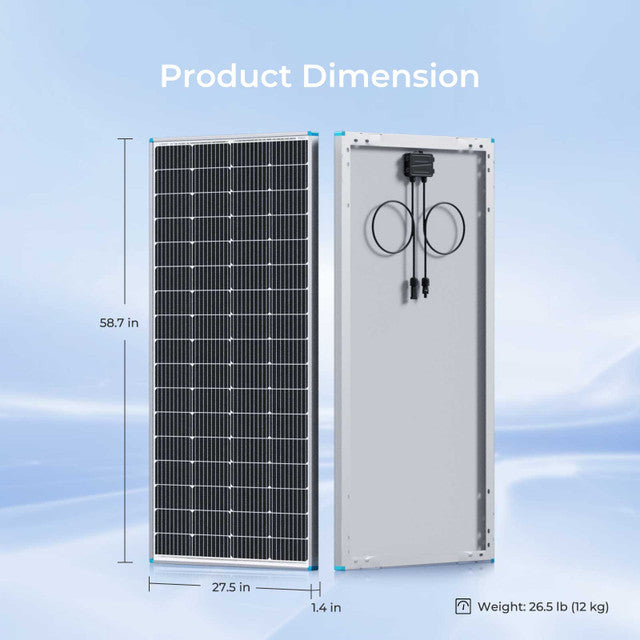

• Dimensions: 58.7 x 27.5 x 1.38 in / 1491 x 699 x 35mm
• Weight: 26.46 lb (12 kg)
• Solar Cells: 68 Cells ((2+2)*17)

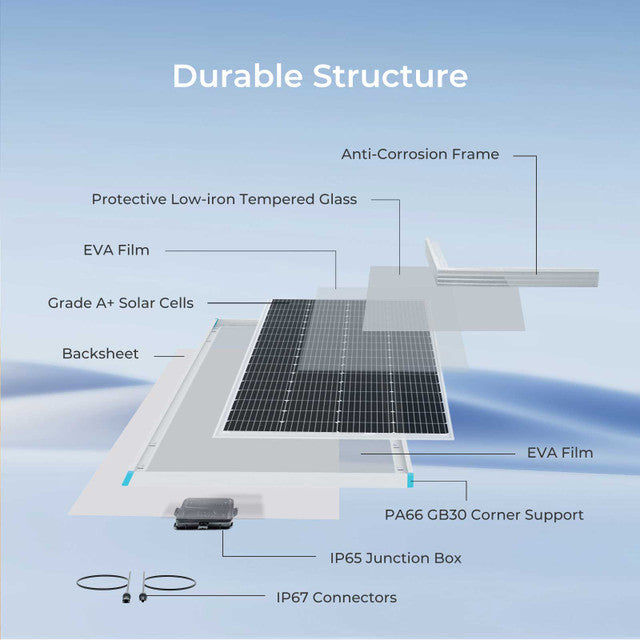

• Junction Box: IP65
• Connectors: Solar Connectors
• Module Efficiency: 19.2%
• Cell Dimension: (158.75 x 158.75) mm / (6.25 x 6.25) in x 40 cells
• Material and Workmanship Warranty: 10-Year Workmanship Warranty
• Performance Warranty: Over 80% Output at 25 Years
• Parameter End: TRUE
• Watt: 200W
• Voltage: 12V
