Description

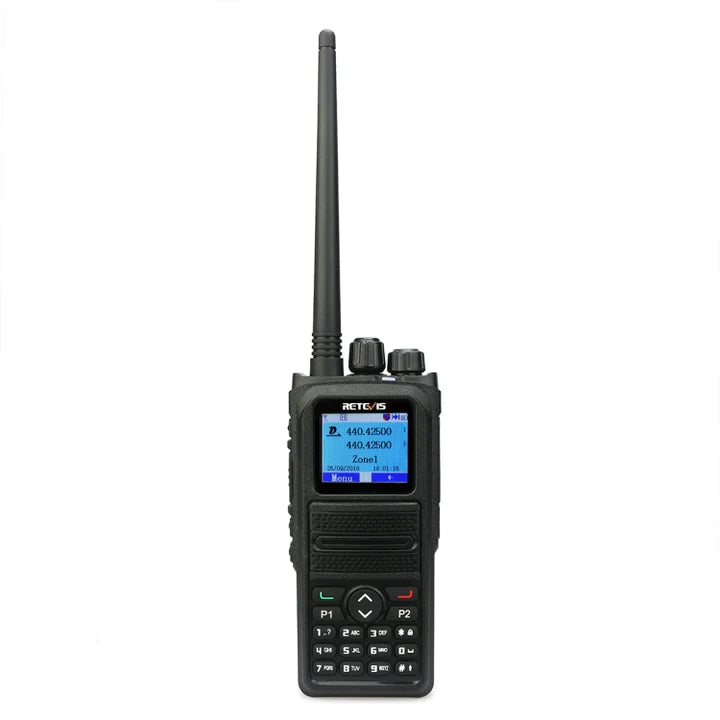

Retevis RT84.

Digital ham radio, complying with digital protocol ETSI TS 102 361-1,-2. Clear sound and more powerful. Can talk to all intercoms with the same protocol.
Digital and analog compatible, Support digital and analog two communication modes to ensure that the original analog products smooth transition to digital products to meet different communication needs.

RT84 DCDM Dual Band Ham Radio

Large color screen to display almost all the information you want to check;

FPP You can input the frequency directly

FPP: You can input the frequency directly;

Digital encryption

The alarm function which is helpful for travel or in emerge conditions;

Alarm

The most important is it can easily get into the repeater, and the firmware and software update for free.

RT84 DCDM Dual Band Ham RadioRT84 box

Frequency range VHF:136-174MHz Memory Channel Up to 3000
UHF:400-480MHz Operating    Voltage 7.4V DC
Frequency    Stability  ±1.0ppm Operating Temperature -30℃~+60℃
Demission(HxWxD) 133*62*36mm         (No including    the antenna) Weight About 300g(Include in battery and antenna)
Transmission
Output power High:5W Low:1W Consumption ≤0.18A
Output    Consumption Analog≤1.6A Digital≤0.9A Modulation Distortion <5%
FM modulation 16K¢F3E@25KHz         /141K¢F3E@20KHz         11K¢F3E@12.5KHz Signal-to-noise(wide/narrow) ≥45dB@25KHz ≥40dB@12.5KHz
Adjacent Channel ≤-65dB ≤-60dB
Power Audio Response +1 ~ -3dB
4FSK digital    modulation 12.5KHz for data:7K60FXD Antenna Port    Spurious 9KHz-1GHz: ≤-36dBm
12.5KHz for data    and voice:7K60FXE 1GHz-12.75GHz: ≤-30dBm
Digital Protocol ETSI-TS102    361-1,-2,-3 Vocoder type AMBE+2 TM
Reception
Analog receive    sensitivity -122dBm (12dB    SINAD) Signal imitation ≥70dB
Digital receive    sensitivity -120dBm(BER≤5%) Intermediation(Wide/narrow) ≥62dB/≥58dB
Audio power 1W Adjacent channel    selectivity ≥65dB/≥60dB
Audio distortion <10% Receive Current ≤380mA
Audio response +1 ~ -3dB PM noise ≥45dB@25KHz /≥40dB @12.5KHz

Retevis RT84

Regular price £114.99
Sold out

Tax included. Shipping calculated at checkout
