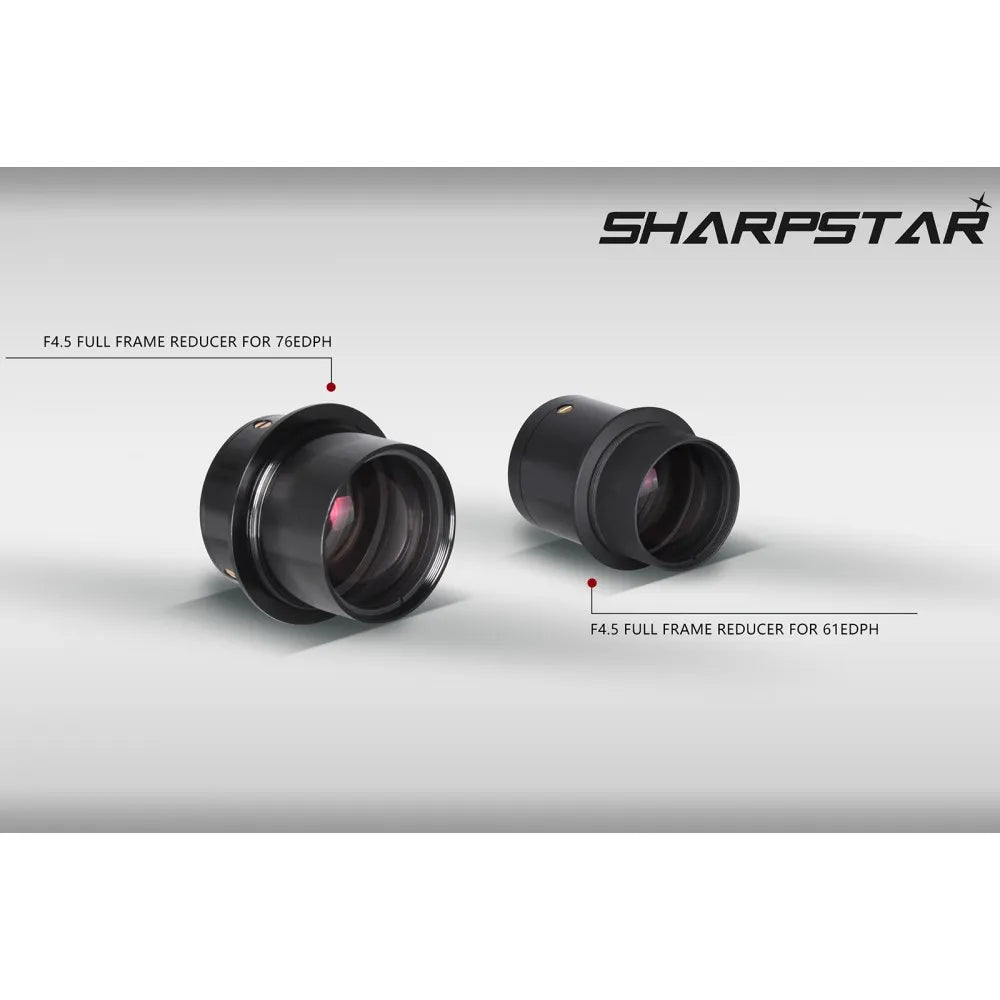

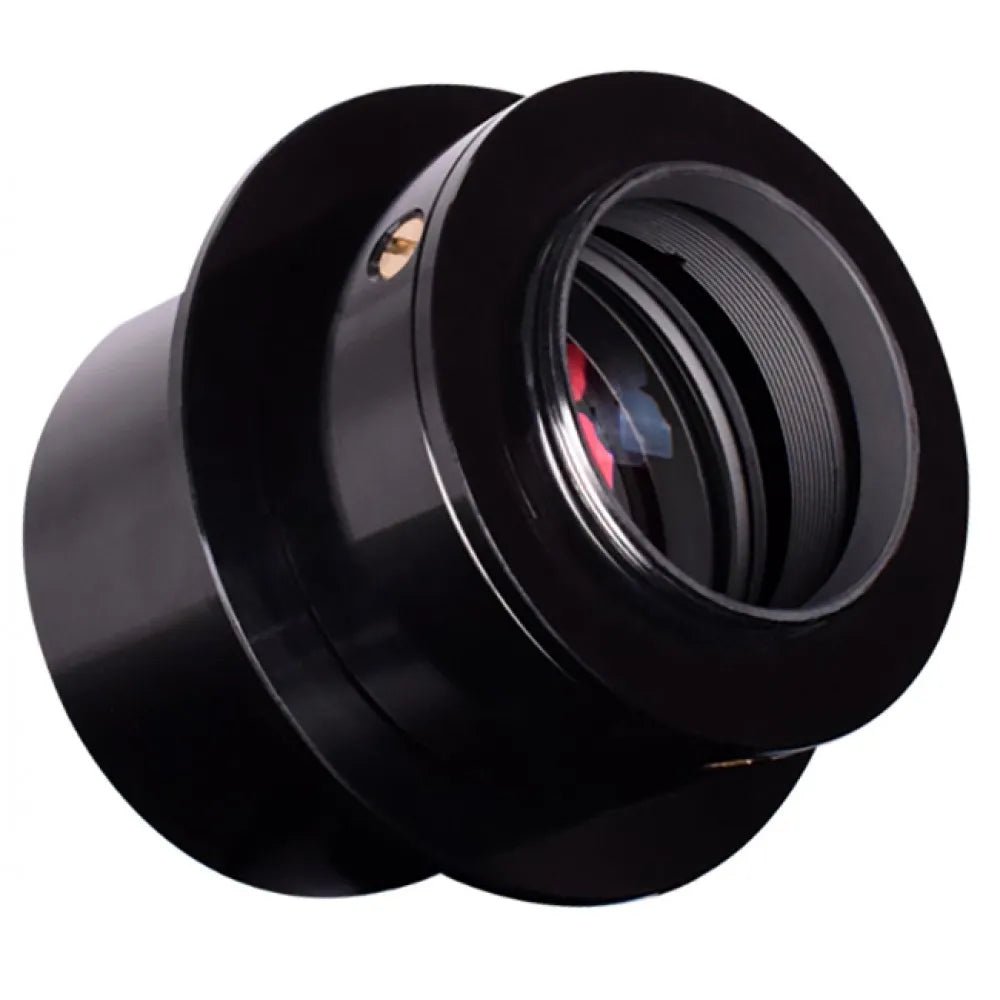

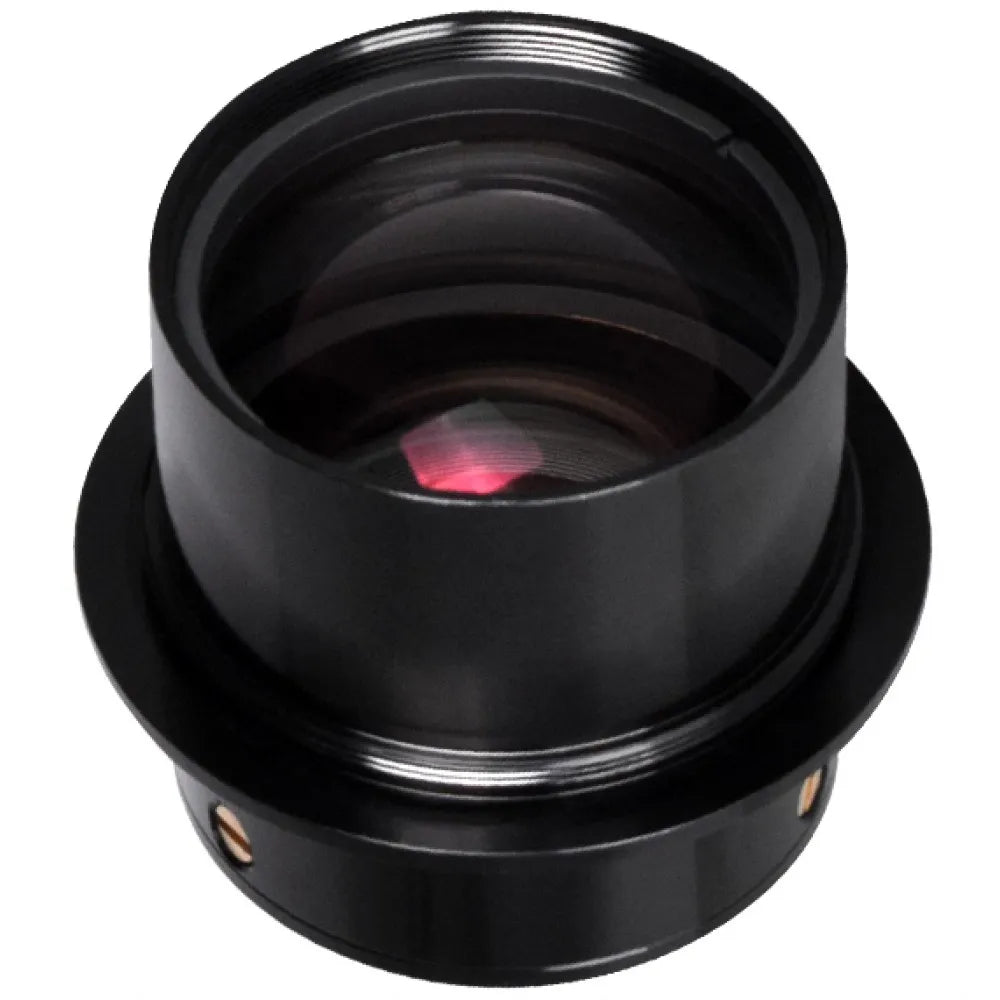

Sharpstar 2.5" 0.8x Reducer and Flattener for FULL FRAME Cameras for Sharpstar 76EDPH Telescope - M48 Camera Connection
- Male M74 Connection Thread to the 76EDPH telescope
- Designed for Full Frame cameras
- 360-degree rotation
This Reducer/Flattener has been specifically designed for the Sharpstar 76EDPH APO telescopes to achieve a fast f/4.5 focal ratio for full frame imaging.
(It might possibly work with other similar telescopes as well, but we cannot offer any recommendations about that...)
It will connect to your telescope via a male M74 x 1 thread. For the correct framing, the reducer/flatener features a 360-degree roation adapter. The backfocus is 55 mm from the M48 thread.
It offers a corrected and fully illuminated field for full frame cameras.

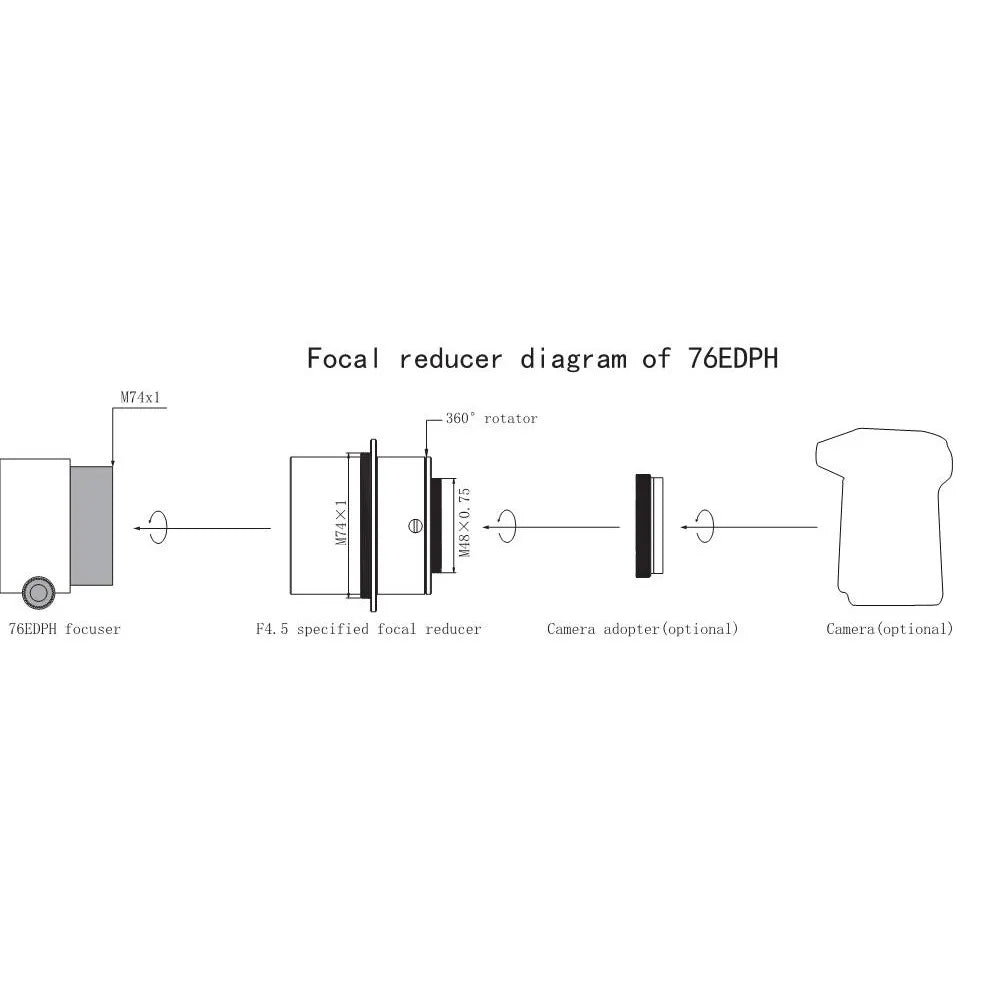

Connections and Back Focus:
- connection to telescope: M74x1 male thread
- connection to camera: M48x0.75 male thread
- Back focus from M48 thread: 55mm

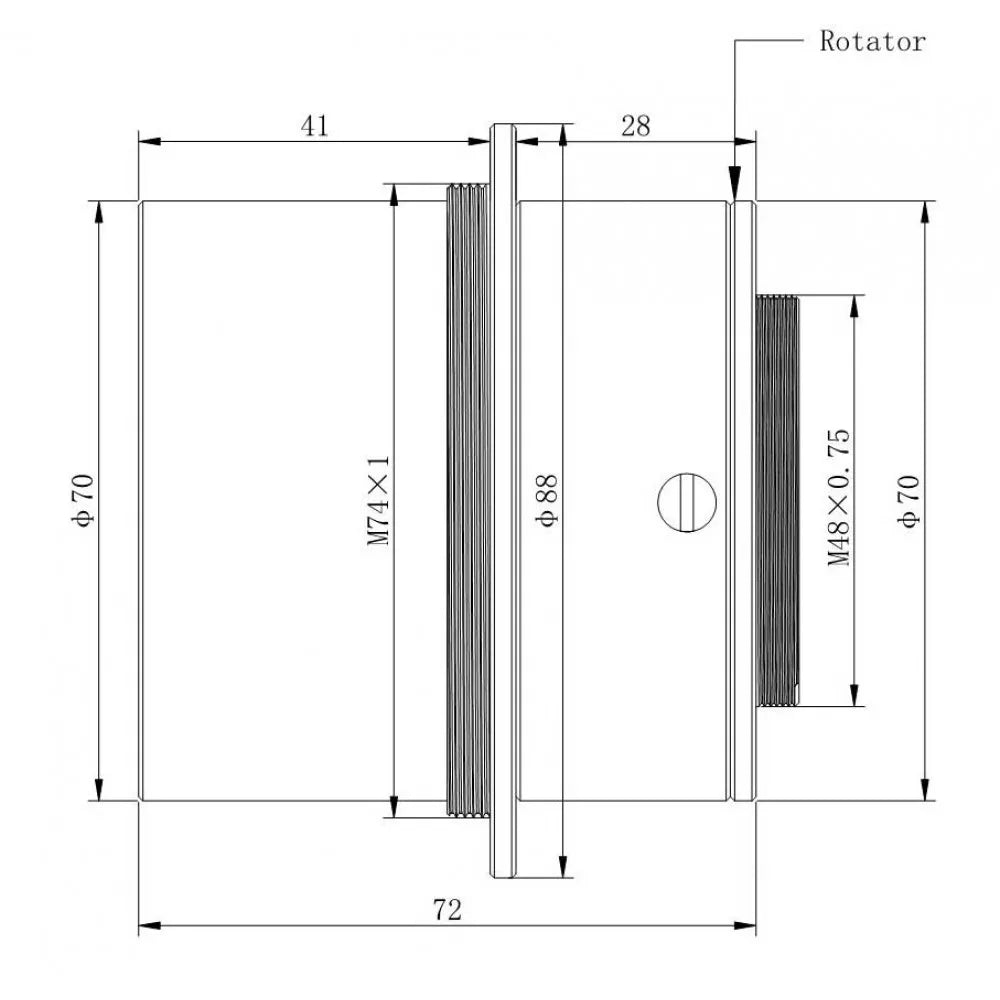

Specifications:
- connection to telescope: M74x1 male thread
- connection to camera: M48x0.75 male thread
- recommened distance from connecting thread to focal plane: 55mm
- focal lengh reduction: 0.8x
- lenses: 3 lenses fully multicoated
- fully corrected and illuminated field: TBC (but most likely around 44-45mm)
- length: 77mm (inc the M48 thread)
- diameter: 88mm (66mm without the collar)
- weight: appr. 500 g
