Sharpstar

SHS-61EDPH-II

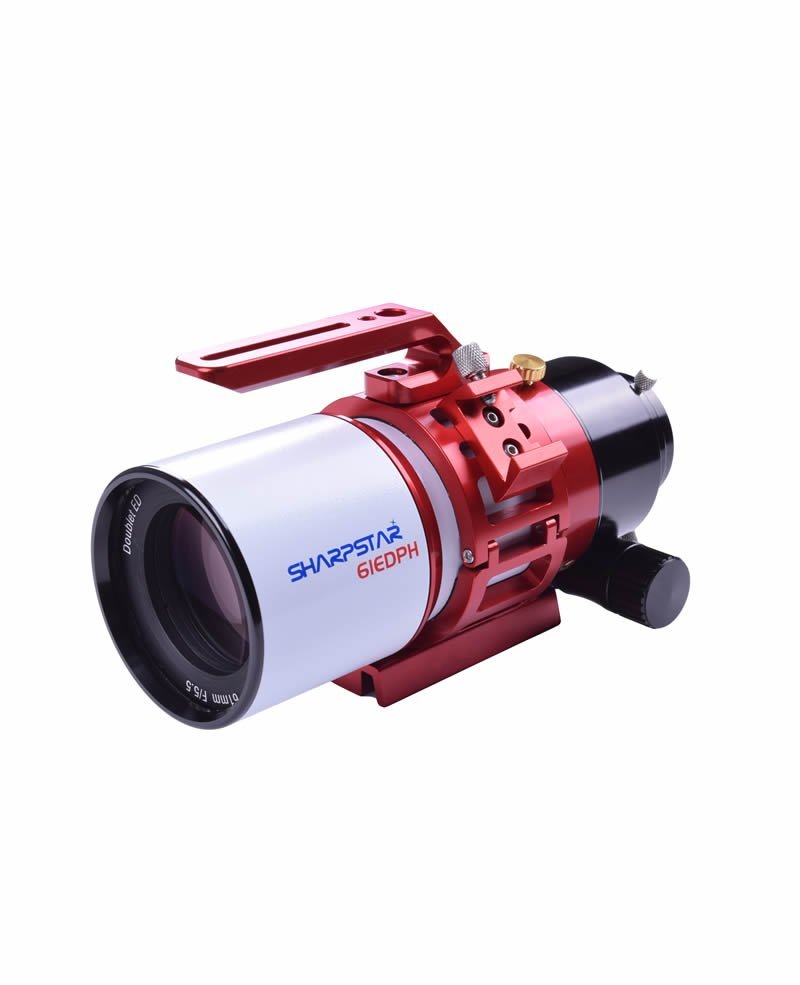

SharpStar 61EDPH Mark II Telescope - Ultimate Astro Photography Tool

£425.00 £525.00 19% Off

Free UK Shipping - Estimate US & Europe Shipping at checkout.

Quantity

The Ultimate Portable Astro Photo and Nature Photography Instrument!

SharpStar 61EDPH Mark II Telescope Features:

• 61MM f/5.5 three-element full separation optical design
• Includes one ED lens of Japanese Super ED lens
• New 2.5" dual-speed rack and pinion focuser, 10:1 fine focus
• 2" and 1.25" universal interfaces
• Angle adjuster for 360-degree rotation
• Universal dovetail bar
• Comes with a finderscope mounting bracket (shoe)

Testing Procedures:

At 365 Astronomy, we test 30-60% of the incoming Sharpstar and Askar telescopes (excluding smaller models). This ensures quality assessment for the batch, including focusing mechanisms, optical tubes, and accessories. We take test images with a full-frame DSLR to evaluate the telescope's performance. If we find issues, we collaborate with specialists to ensure your telescope meets high standards.

The SharpStar 61EDPH refracting telescope features a three-element design with one exotic ED lens, and multi-layer coatings that minimize internal reflections. It offers excellent observation and imaging capabilities thanks to its fast focal ratio.

The unique three-element design effectively controls chromatic aberration, resulting in sharp stars and vivid images. The 61EDPH includes a high-load dual-speed 2.5-inch rack and pinion focuser with a 1:10 aspect ratio, ensuring stability even with heavy accessories. The 360-degree rotator allows easy camera positioning for optimal framing. The 2-inch eyepiece holder features a brass compression ring to protect your accessories.
The dedicated tube rings have a hollow design for reduced weight, and the package includes a 10cm dovetail plate with a 1/4" photo thread for easy mounting on a tripod for daytime photography. The 61EDPH is competitively priced, making it a valuable tool for observation and imaging. Additionally, it can be equipped with a dedicated 2.3-inch field flattener for full-frame astrophotography, ensuring excellent image quality and reduced distortion at the edges.

Dedicated Full-Frame Reducer (Optional Extra)

The optional dedicated full-frame reducer is designed for the SharpStar 61EDPH and supports full-frame photography. It connects to the focuser and features a M48×0.75 thread for easy attachment. The three-element design minimizes vignetting, making it ideal for deep-sky astrophotography with a focal length of 275mm and a focal ratio of f/4.5. The 360-degree rotator simplifies camera adjustments for perfect framing.

Technical Parameters:

Aperture: 61mm
Focal Length: 335mm
Focal Ratio: 5.5
Objective Type: Three-element full separation composite achromatic
Net Weight: 1.42kg (excluding tube rings and dovetail plate)
Total Weight: 1.80kg (including tube rings and dovetail plate)
Resolution: 1.93 arc seconds
Visual Limit Star Rating: 10.7
Main Tube Outer Diameter: 80mm
Total Length of Lens Barrel (Shortened): 235mm

Spot Diagram of the New Mark II Triplet Version:

Spot Diagram of the SharpStar 61EDPH Mark II
