Sky Rover launched the 60 SA in 2023, it adopts a Petzval structure, the image circle is 45mm and meets full frame camera requirements. The quad design removes the requirement for a separate reducer or field flattener. While this fixes the focal length at 350mm making this a one focal length scope, it also allows for more compactness and portability.
Work show
Specifications
Model: SKY ROVER 60mmF/5 Super Astrograph
Diameter: 60mm
Focal length: 300mm
Focal ratio: F/5
Optics: 4 elememts 4 groups, Petzval structure, including some super ED glass and lanthanide material.
Coating: FMC
Focuser: 2.8-inch dual-speed rack and pinion focuser with CAA and 19mm total travel for astro imaging;
The end of focusing tube is with M70x1 thread; M48x0.75 Female
Body: made of aluminum alloy.
Size: about 265 mm (Fully Retracted) ;about 340.4 mm (Fully Extended)
Weight: OTA about 2.98kg
Standard: Vixen dovetail plate, patented handle.
Packaging: Full-wrapped pearl cotton and double-layer cartons
Diameter: 60mm
Focal length: 300mm
Focal ratio: F/5
Optics: 4 elememts 4 groups, Petzval structure, including some super ED glass and lanthanide material.
Coating: FMC
Focuser: 2.8-inch dual-speed rack and pinion focuser with CAA and 19mm total travel for astro imaging;
The end of focusing tube is with M70x1 thread; M48x0.75 Female
Body: made of aluminum alloy.
Size: about 265 mm (Fully Retracted) ;about 340.4 mm (Fully Extended)
Weight: OTA about 2.98kg
Standard: Vixen dovetail plate, patented handle.
Packaging: Full-wrapped pearl cotton and double-layer cartons
Basic Structures
(1) Thread interface (2) CAA (3) Focuser (4) Finder base (5)Handle
(6) Dewshield (7) Coarse focus wheel (8) Fine focus wheel (9) Finder base (10)Dovetail plate
Focal Plane Controller Illustration
① Standard narrow plate clamp fixed position ② CAA locking screw ③ anti-off screws(M3)
④ ARCA-SWISS standard clamp fixed position ⑤ ARCA-SWISS standard quick release plate ⑥ dovetail plate（narrow）
ARCA-SWISS standard quick release plate screw holes diagram
PS: This plate supports connect camera mount
Handle screw holes diagram
Back focal length Illustration

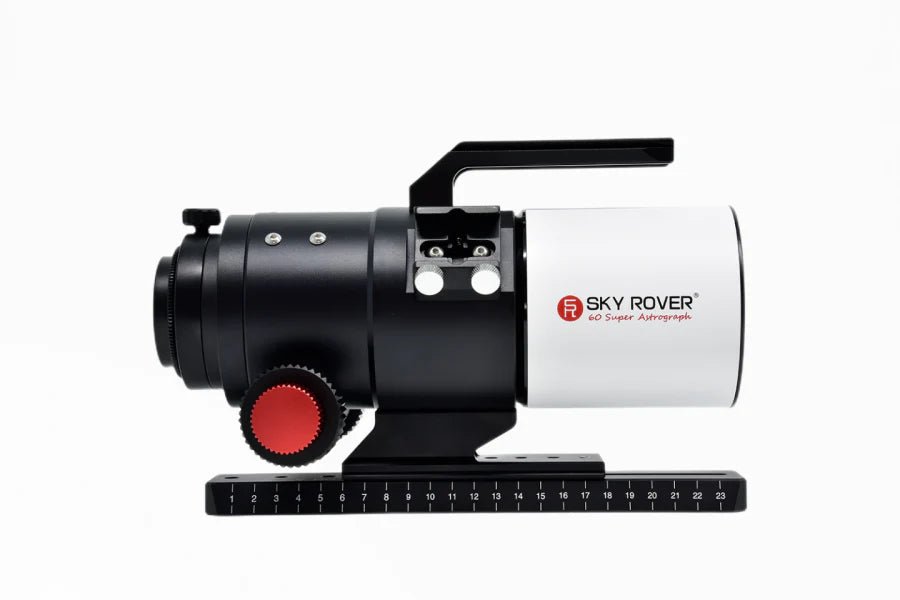

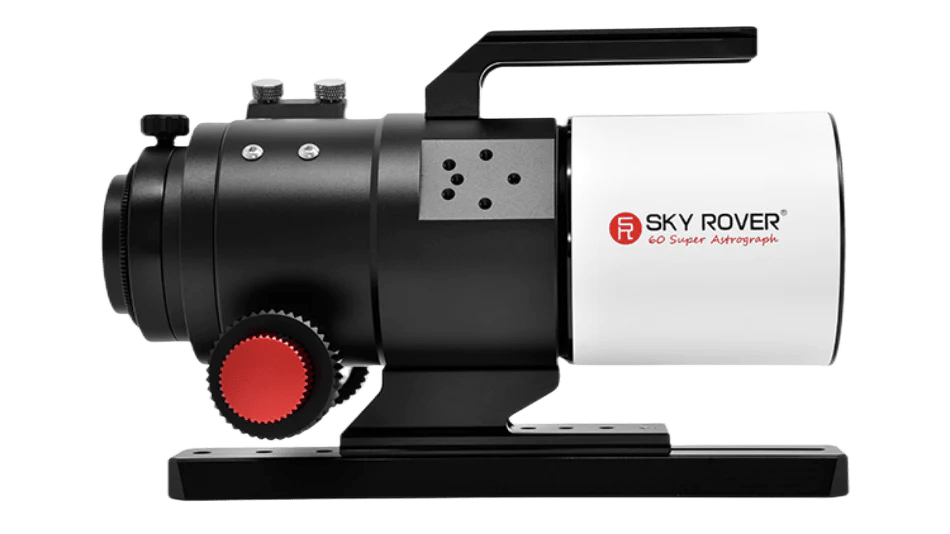

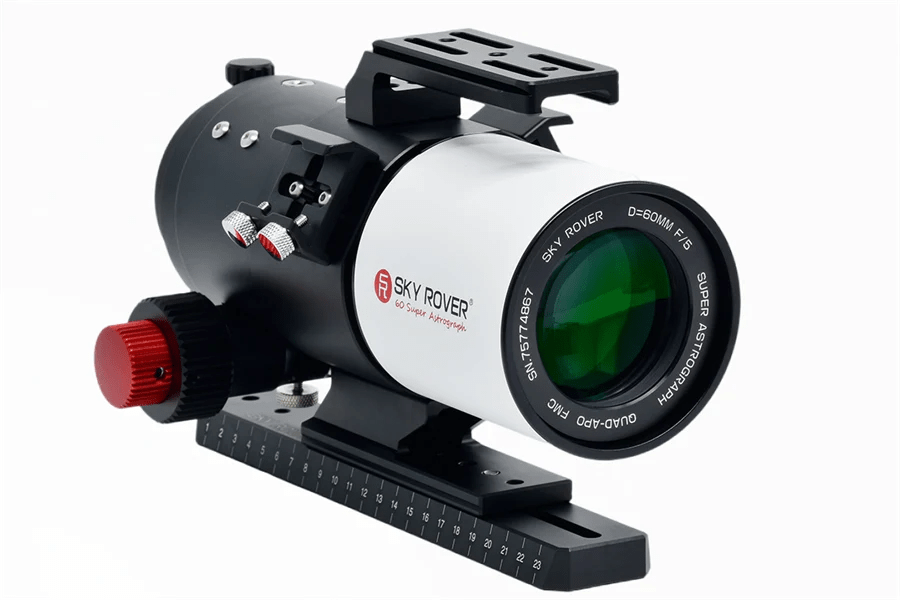

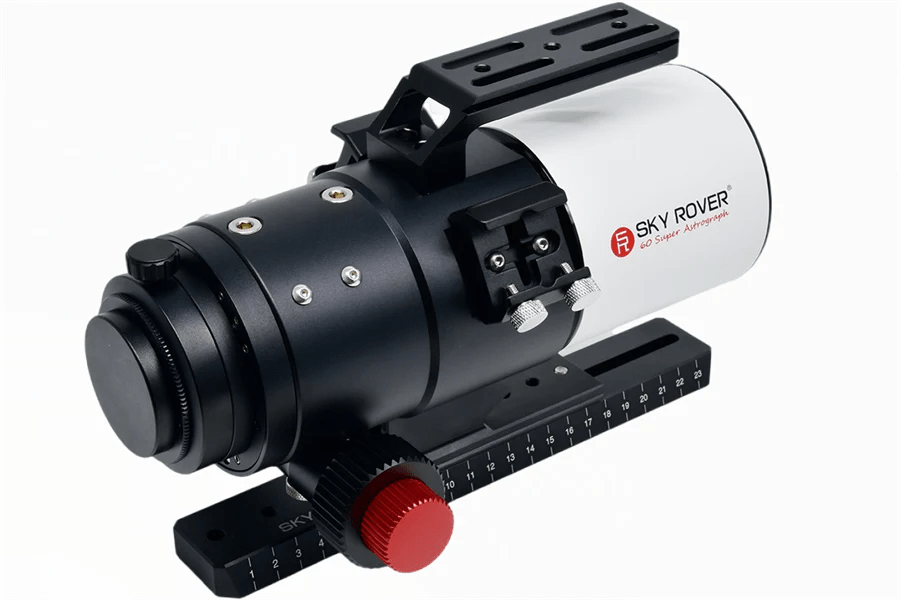

Product Show
