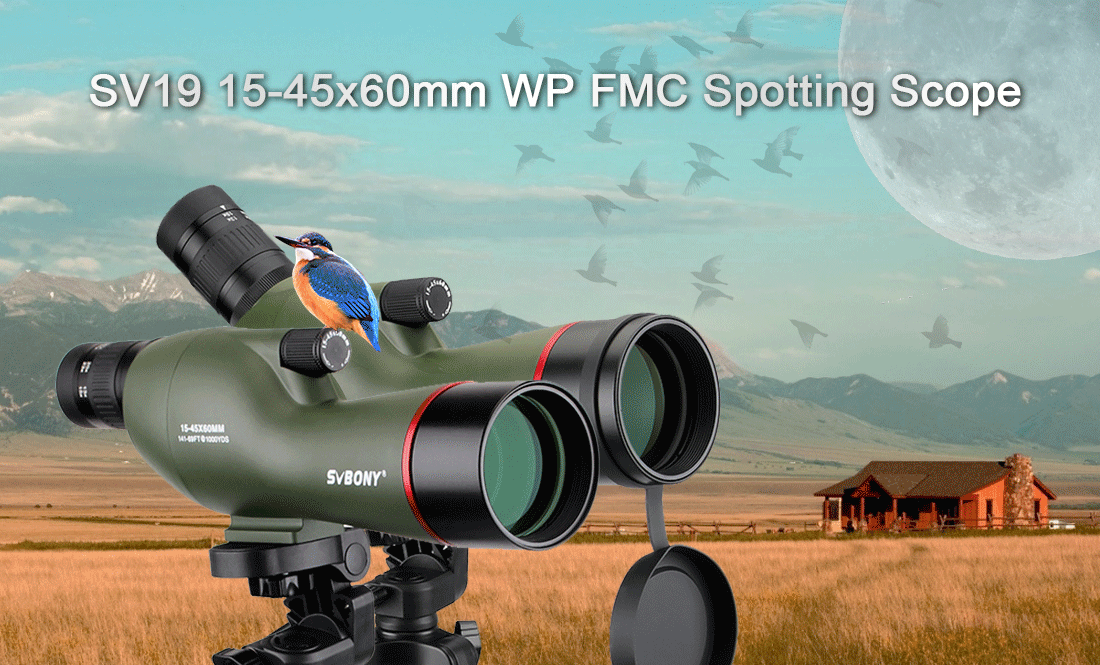

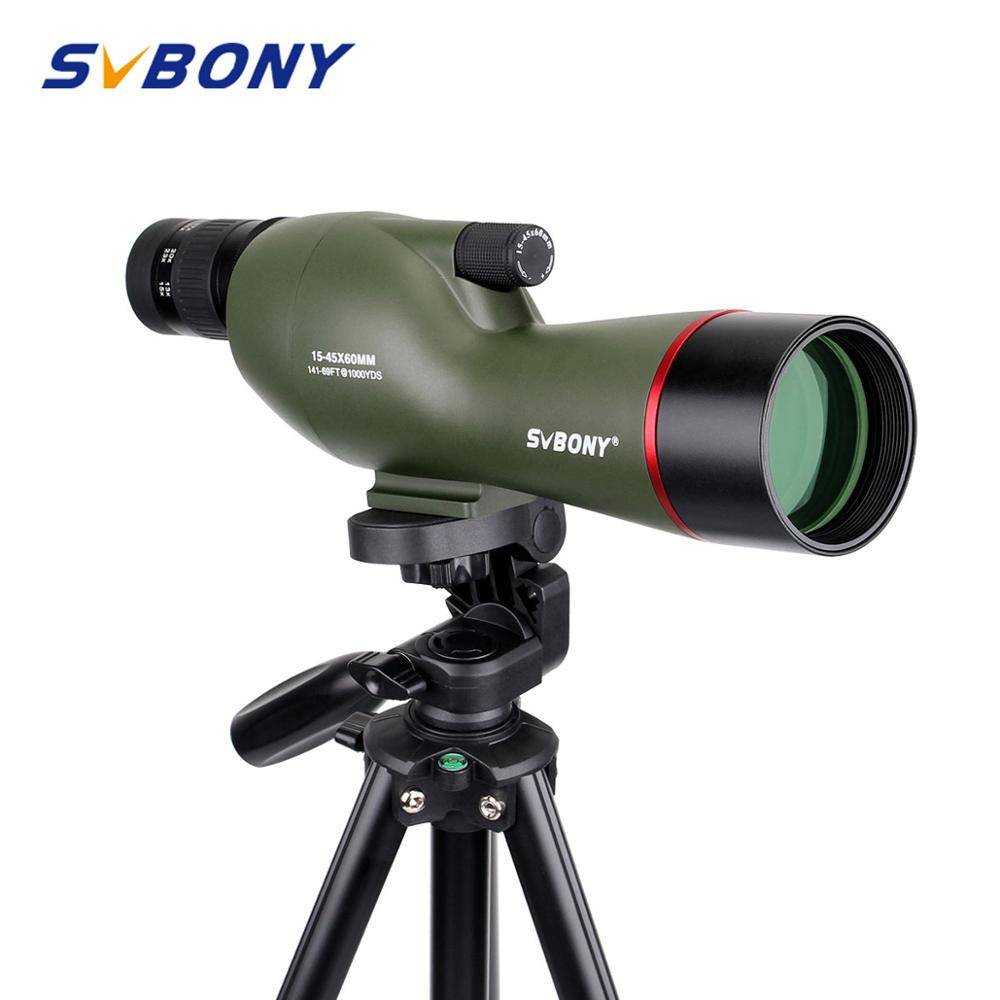

The SV19 spotting scope has BAK4 prism and FMC (Fully Multi-Coated) optics, increasing light transmission through the optical path to deliver crisp, high contrast images. SV19 has a sturdy armored tube and a 54-inch aluminum tripod .

Model

SV19 (F9328A)

SV19 (F9328G)

Angle

Straight

45 degree

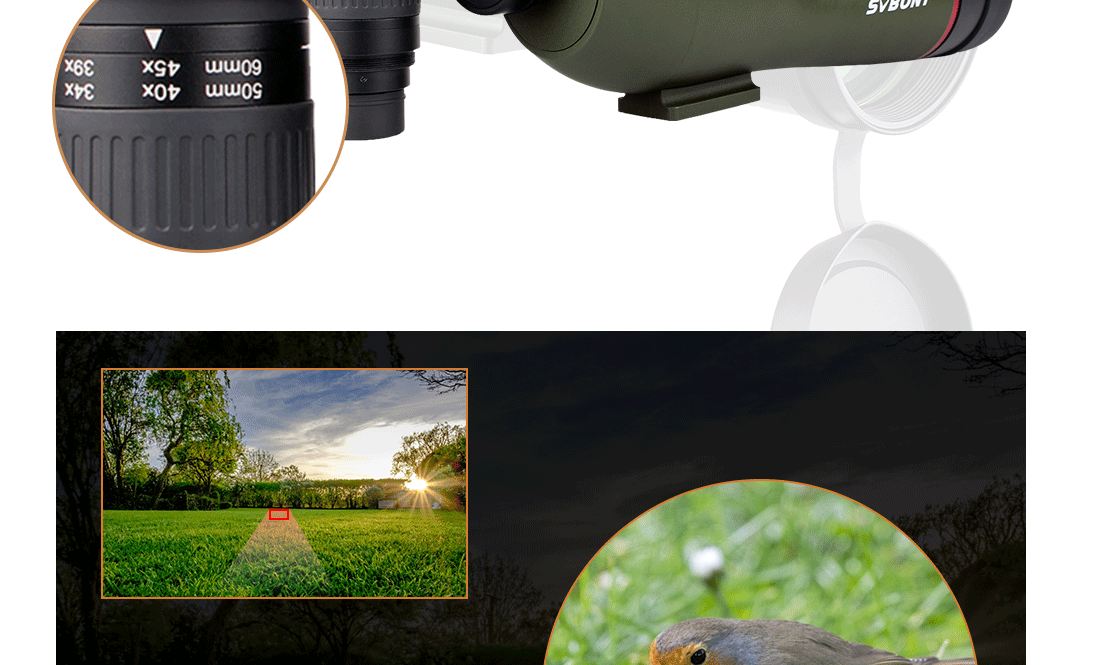

Magnification

15x-45x

15x-45x

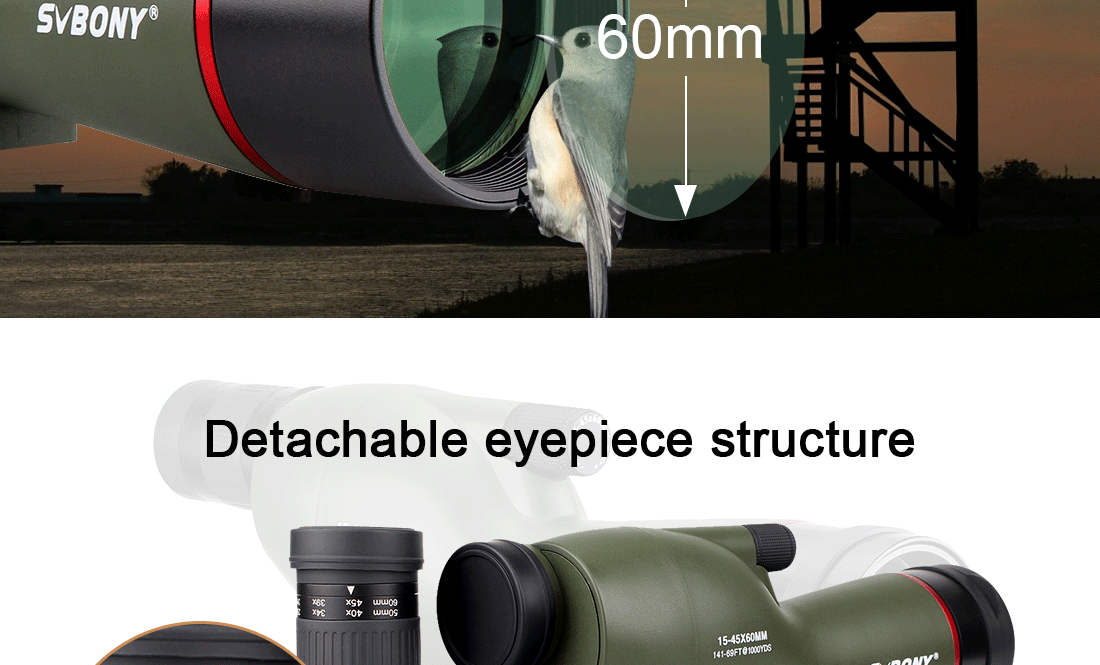

Objective lens diameter (mm)

60mm

60mm

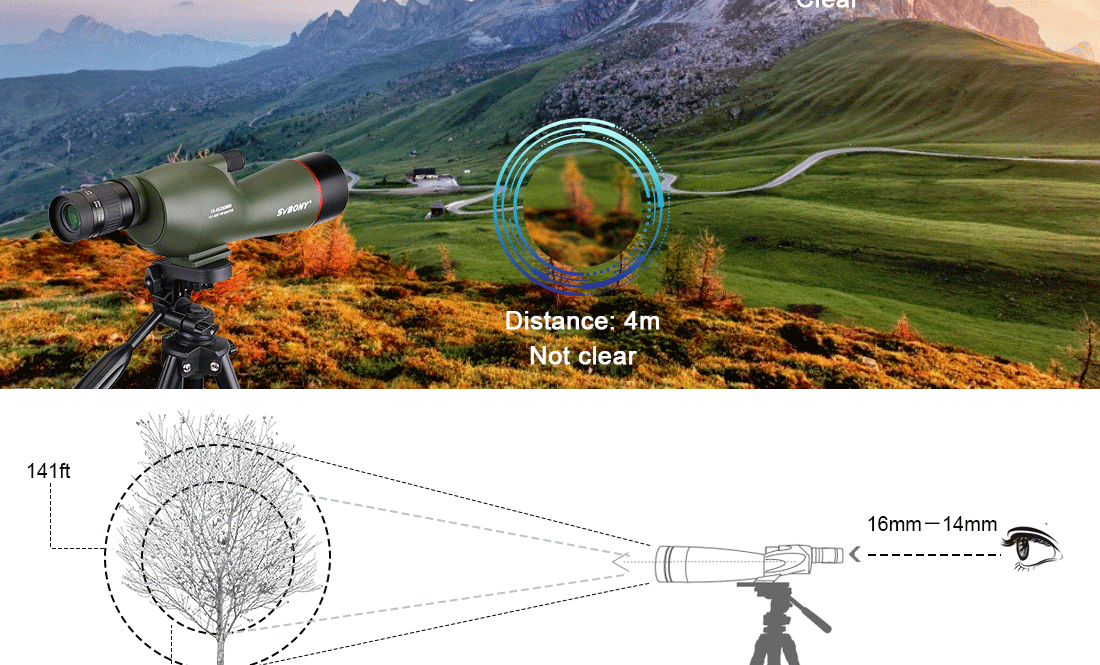

Field of View  (ft/1000yds)

141ft－69ft

141ft－69ft

Field of Angle(°)

2.7 °－1.3 °

2.7 °－1.3 °

Exit Pupil (mm)

4mm－1.3mm

4mm－1.3mm

Eye Relief (mm)

16mm－14mm

16mm－14mm

Near Focus (m)

 5m

 5m

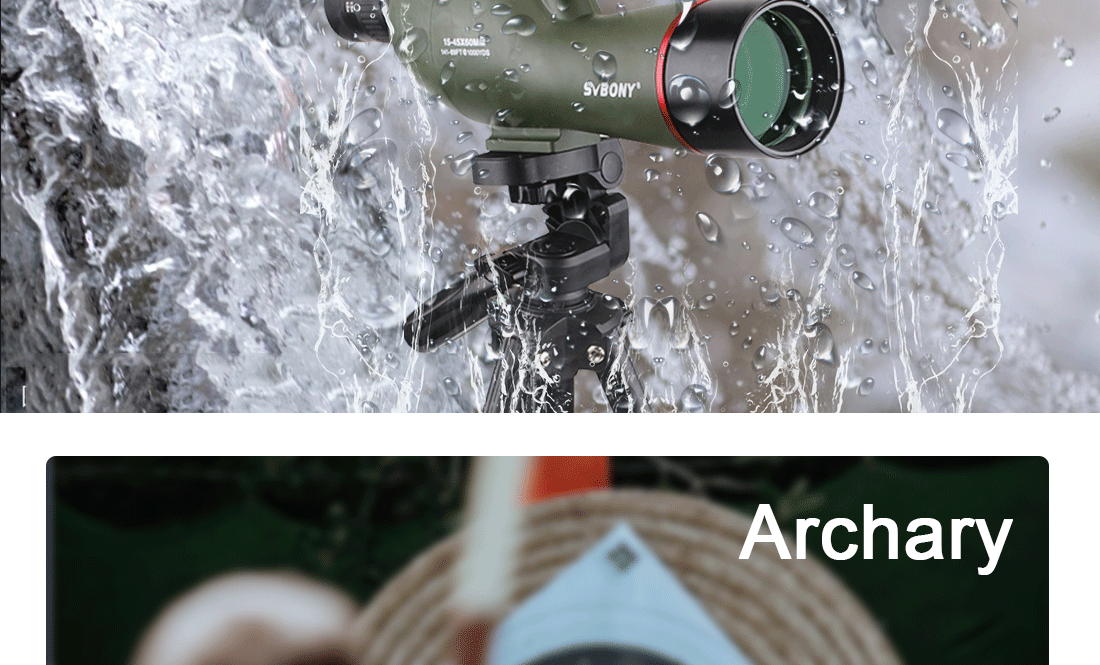

Waterproof

(IPX6)

(IPX6)

Prism Material

BAK-4

BAK-4

Zoom Eyepiece Lens Structure

6 pieces/4 groups

6 pieces/4 groups

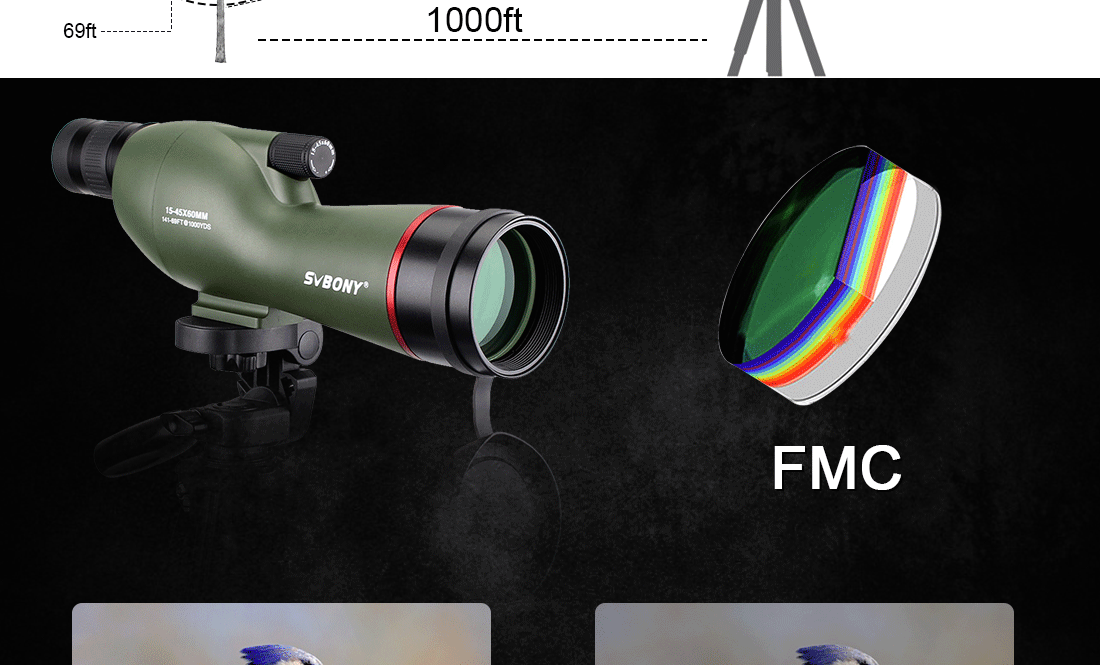

Lens Coating

Fully Multi Coated

Fully Multi Coated

Eye Cup Type

Fold Down

Fold Down

Net Weight

684g/24.11oz

704g/24.82oz

Dimension

330x95x73mm

305x150x73mm
