SvBony

W9158A

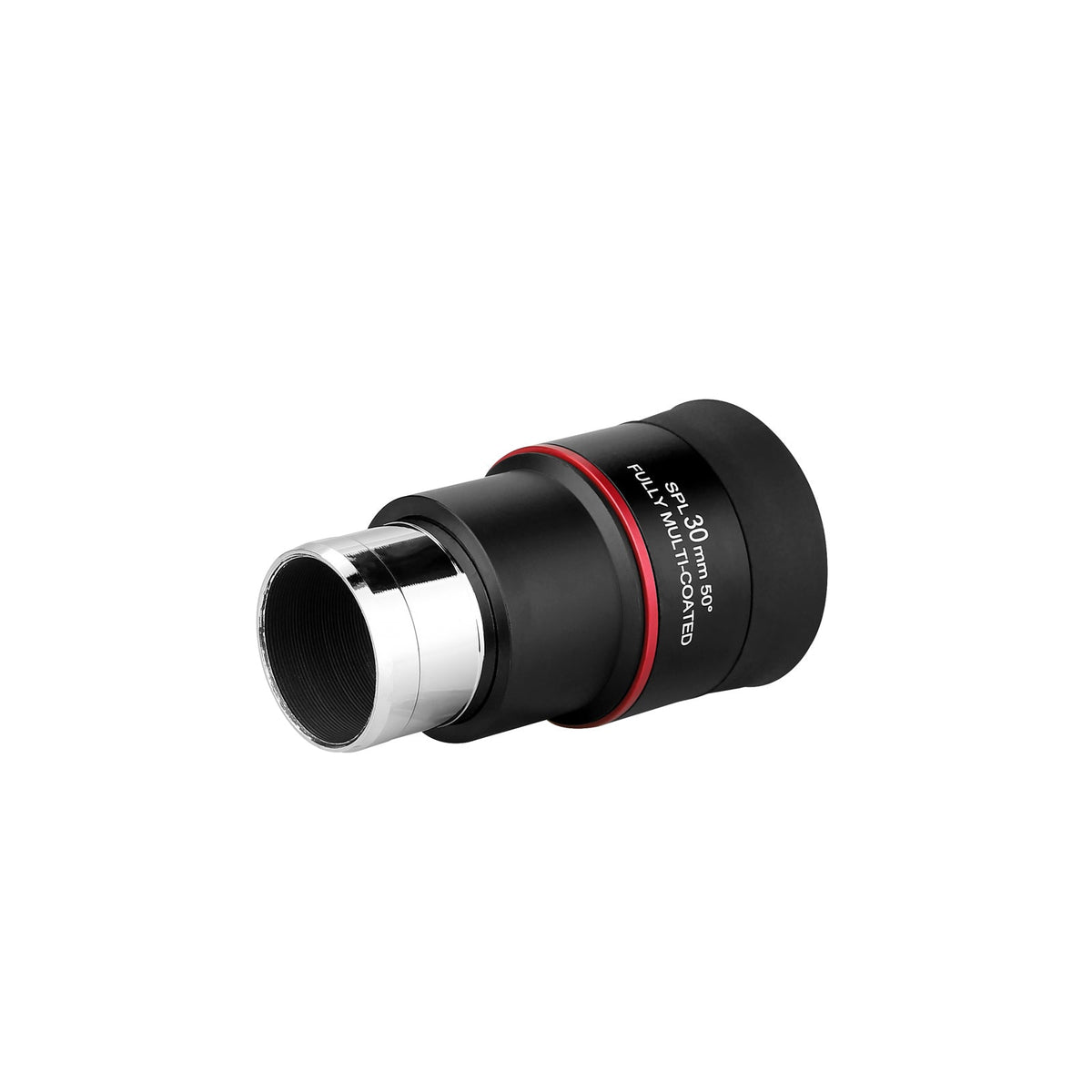

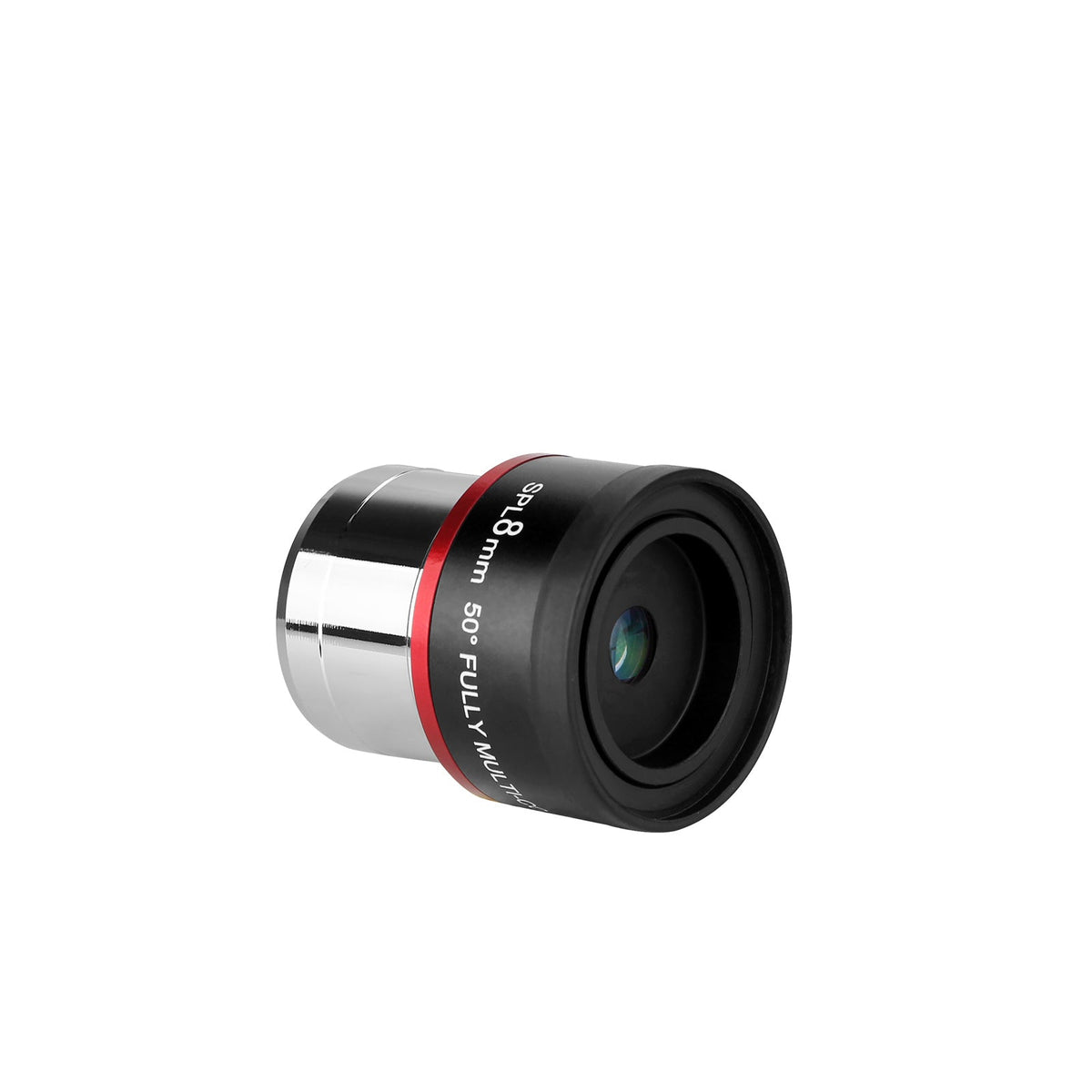

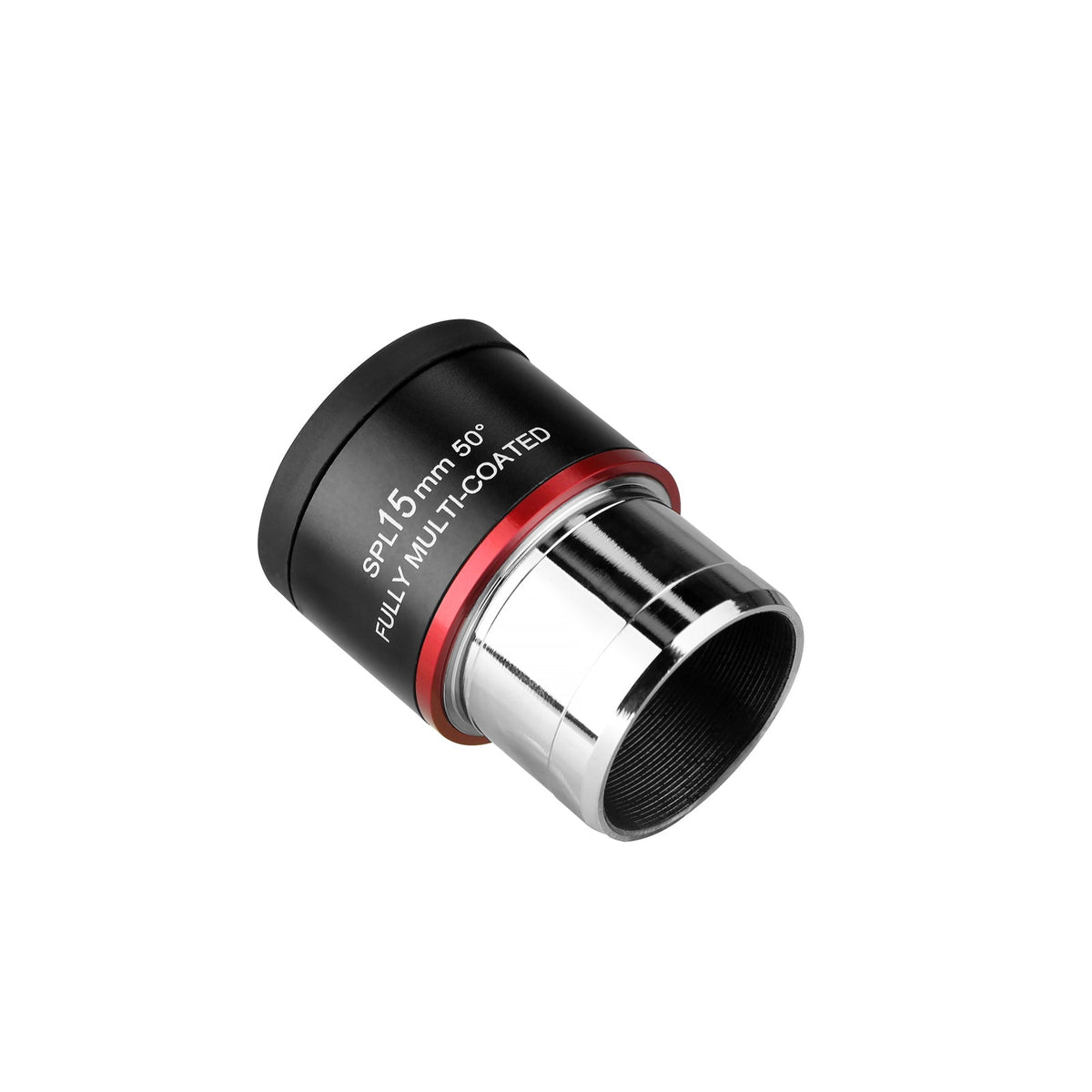

 Svbony SV207 1.25" Super Plossl 50° Eyepiece

£30.99

Free UK Shipping - Estimate US & Europe Shipping at checkout.

Quantity
Size:

Svbony SV207 1.25" Super Plossl 50° Eyepiece

1. 50 degrees field of viewing, bigger than the normal Plossl eyepiece.

2.  Each glass surface has multiple layers of coating for better Astro-image quality.

3. The edge of the lens is matt blackened to prevent stray light interference.

4. All-metal mirror structure, fine texture, superlative workmanship.

5. Safety undercut milled into the nosepiece to prevent the eyepiece from falling out of the scope focuser.

6. Plossl eyepieces with 15mm and longer focal lengths are good choices for glass wearers but for shorter focal lengths the SV190 Ultra Flat Field Eyepiece has greater eye-relief, which are better suited.

Model SV207
Eyepiece Type Super Plossl
Focal Length 8mm 15mm 25mm 30mm
Field of View 50 degrees
Eye Relief 4.5mm 11mm 19.5mm 24mm
Field stop Diameter 6.8mm 12mm 20.4mm 24.5mm
Net Weight 78g/2.75oz 100g/3.53oz 130g/4.59oz 120g/4.23oz
Dimension Ø​37.5x43.5mm​ Ø​37.5​×52.2mm Ø​48.0×57mm Ø​48.0×78.2mm
Material Metal
Thread Size M28.5×0.6
Lens group  2 gruop/4 PCS
Lens Coating FMC
Side of the lens coating Extinction Ink
Non-slip cover YES
Eyecup Type Rubber

SV207-1

SV207-2

SV207-3

SV207-4

SV207-5

SV207-6

SV207-7

SV207-8

 Svbony SV207 1.25" Super Plossl 50° Eyepiece

£30.99
