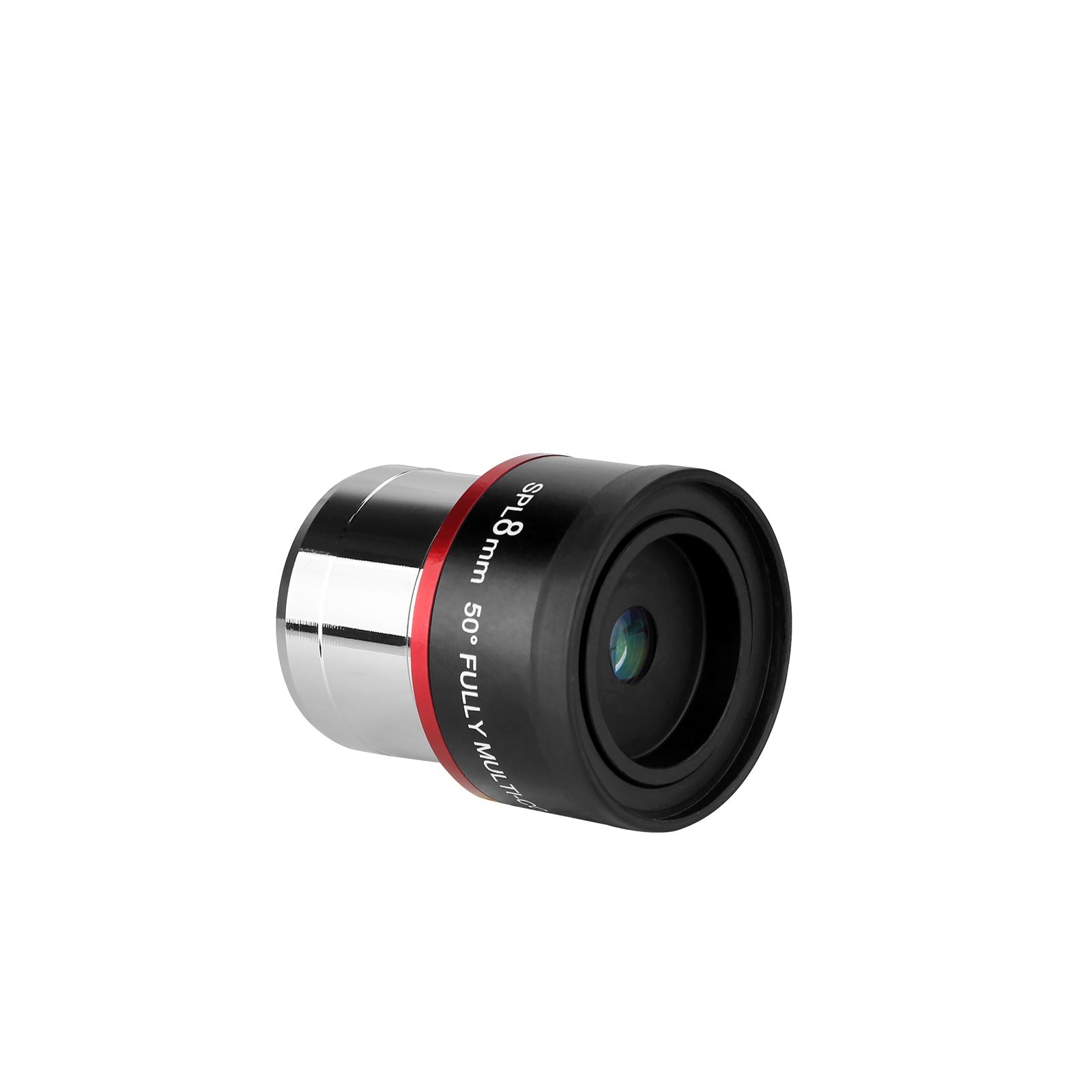

Svbony SV207 1.25" Super Plössl 50° Eyepiece – 8mm & 25mm Options
The Svbony SV207 1.25" Super Plössl Eyepiece delivers a sharp, wide 50° apparent field of view, making it an excellent upgrade from standard Plössl eyepieces. Available in 8mm and 25mm focal lengths, the SV207 is perfect for both lunar and planetary detail as well as deep sky objects.
Key Features
-
50° field of view – wider than standard Plössl designs.
-
Fully multi-coated optics on all glass surfaces for bright, high-contrast views.
-
Matte blackened lens edges to minimize stray light and glare.
-
All-metal construction with precision machining and excellent durability.
-
Safety undercut nosepiece prevents accidental eyepiece slips.
-
Comfortable rubber eyecup and non-slip grip for easy handling.
- Compatible with all standard 1.25" telescope focusers and accessories.
Choosing the Right Size
The 8mm SV207 is ideal for high magnification views of the Moon, planets, and double stars, while the 25mm SV207 provides wider, low-power views of star clusters, galaxies, and nebulae.
For eyeglass wearers, the 25mm version with its generous 19.5mm eye relief is more comfortable, while the 8mm offers sharp detail but with shorter 4.5mm eye relief. For extended eye relief at shorter focal lengths, consider the SV190 Ultra Flat Field Eyepiece.
Specifications
| Specification |
SV207 8mm |
SV207 25mm |
| Focal Length |
8mm |
25mm |
| Apparent Field of View |
50° |
| Eye Relief |
4.5mm |
19.5mm |
| Field Stop Diameter |
6.8mm |
20.4mm |
| Weight |
78g (2.75oz) |
130g (4.59oz) |
| Dimensions |
Ø37.5 × 43.5mm |
Ø48.0 × 57mm |
| Lens Groups / Elements |
2 groups / 4 elements |
| Lens Coating |
Fully Multi-Coated (FMC) |
| Material |
All-metal housing with rubber eyecup |
| Thread Size |
M28.5 × 0.6 |
Why Choose the SV207 Super Plössl?
With a balance of affordability, optical quality, and solid construction, the Svbony SV207 1.25" eyepiece is a reliable addition to any astronomer’s kit. Whether you’re stargazing casually or deep into astrophotography, its wide field, sharp optics, and durable build make it a versatile upgrade.
FAQs – Svbony SV207 Super Plössl
Is the SV207 compatible with my telescope?
Yes. It fits any telescope with a 1.25" focuser or 1.25" diagonal.
Which should I choose: 8mm or 25mm?
The 8mm is for high-power lunar/planetary and double stars. The 25mm gives wider, low-power views of clusters and nebulae with longer eye relief.
Is it comfortable for eyeglass wearers?
The 25mm has ~19.5mm eye relief and suits most eyeglass wearers. The 8mm has ~4.5mm eye relief and is best without glasses.
What filters and threads does it use?
Standard 1.25" filters with M28.5×0.6 threads.
What is the apparent field of view?
50° AFOV for both 8mm and 25mm focal lengths.
Can I use it with a Barlow lens?
Yes. A quality Barlow will increase magnification while preserving the 50° AFOV.
What coatings and construction does it have?
Fully multi-coated optics, matte-blackened lens edges, all-metal body, safety undercut, and rubber eyecup.
