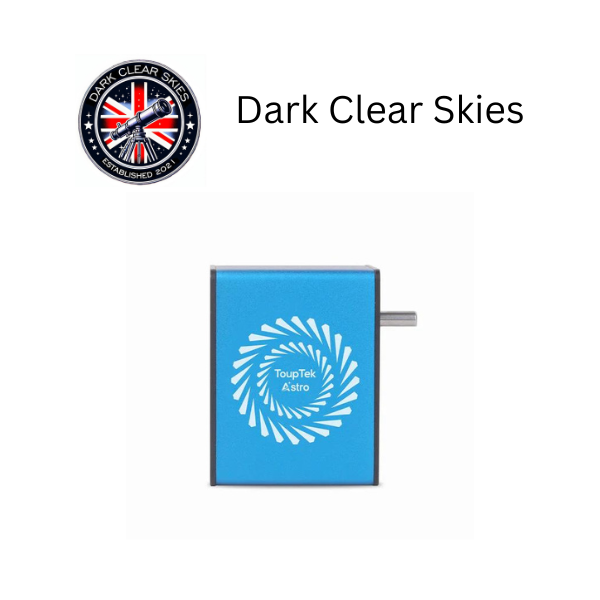

ToupTek Astro AAF - Automatic Electric Focuser for Astrophotography

£189.00

Free UK Shipping - Estimate US & Europe Shipping at checkout.

Quantity

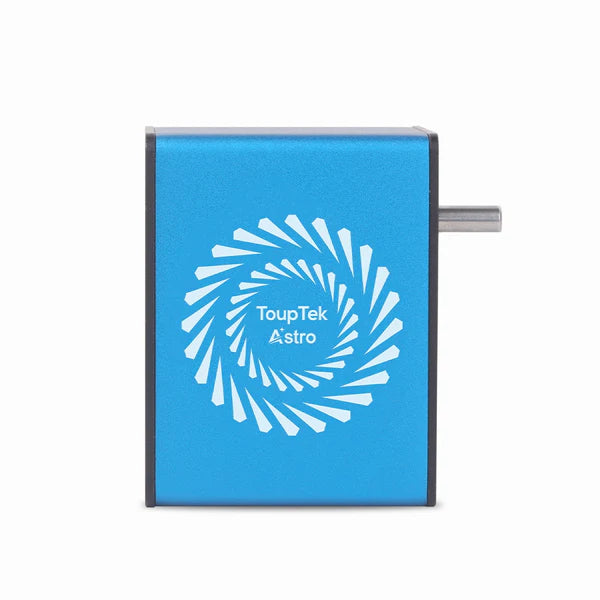

ToupTek Astro AAF - Automatic Electric Focuser

Overview: The ToupTek Astro AAF (Astro Automatic Focuser) is an essential accessory for astrophotography and observation. This advanced electric focuser allows for precise adjustments to your telescope's focuser, enhancing accuracy and efficiency during imaging sessions.

Key Features:

  • Integrated Design: Plug-and-play setup for easy installation with stable hardware and software performance.
  • Wide Applicability: Compatible with ASCOM drivers and a range of third-party software, ensuring versatile use.
  • Multi-Platform Availability: Equipped with comprehensive INDI drivers for seamless integration.
  • Automatic Control: Enjoy precise control and worry-free focusing with automated adjustments based on software inputs.
  • Manual Control: Includes a hand controller for manual focusing when needed.
  • Temperature Adaptability: Features an onboard temperature sensor that adjusts focusing according to environmental changes.

Technical Specifications:

  • Housing Material: Aluminum Alloy
  • Size: 45mm × 60mm × 47mm
  • Motor: 35mm Stepper Motor
  • Torque: 1.2N/M
  • Effective Load Capacity: 5KG

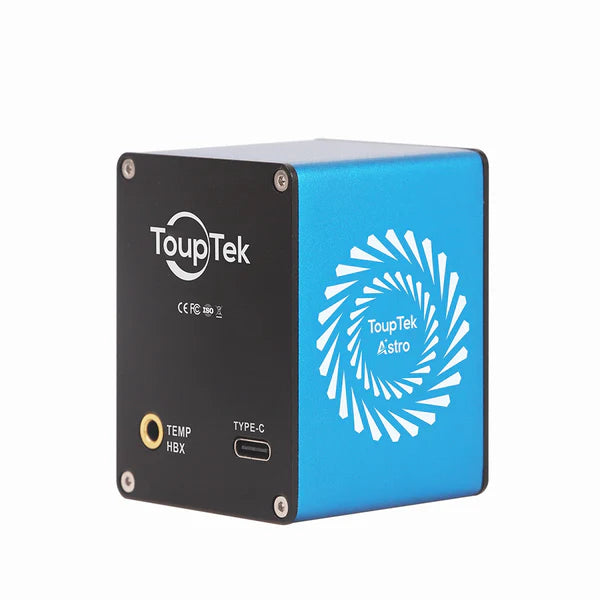

  • Data Interface: Type-C (5V USB)

Installation Instructions:

  1. Check the packing list and assemble the standard connection plate with M3 screws.
  2. Remove the focusing knob from the telescope.
  3. Select and install the appropriately sized flexible coupler.
  4. Use M4/M5 screws to mount the AAF body onto the flexible coupler.
  5. Install the standard connection plate on the focuser base and secure it with M4 screws.
  6. Connect the USB data cable, temperature sensing cable, or handle as required.

Enhance your astrophotography experience with the ToupTek Astro AAF today!

AAF

The astronomical electric focuser is one of the essential accessories for astrophotography and observation. It precisely adjusts the position of the telescope's focuser with automated operation, ensuring accuracy and efficiency in astrophotography and observation. The ToupTek Astro AAF ( Astro Automatic Focuser ) is plug-and-play, significantly enhancing the efficiency and precision of astrophotography and observation. It supports the focusing needs of most telescopes on the market and adapts to various environmental conditions.

AAF

AAF Features

Integrated Design:Plug-and-Play,Stable Hardware and Software Performance
Wide Applicability:Compatible with ASCOM Drivers ,Supports a Wide Range of Third-Party Software
Multi-Platform Availability:Equipped with Comprehensive INDI Drivers Automatic Control:Precise Control and Worry-Free Focusing with Automated Control through Software
Manual Control:Manual focusing using the included hand controller
Temperature Adaptability:Onboard temperature sensor,working with the software to adjust focusing based on environmental temperature changes

AAFAAFAAF


Technical Specifications

Housing Material:Aluminum Alloy
Size:45mm×60mm×47mm
Motor Specifications:35mm Stepper Motor
Torque:1.2N/M
Effective Load Capacity:5KG
Data Interface:Type-C ( 5V USB )

AAFAAF


Connection Diagram

Electric focusing


Installation Instructions


Electric focusing

1. Check the packing list and use M3 screws to assemble the standard connection plate.


Electric focusing

2. Remove the focusing knob from the telescope.


Electric focusing

3. elect and install the appropriately sized flexible coupler.


Electric focusing

4. Use M4/M5 screws to mount the AAF body onto the flexible coupler.


Electric focusing

5. Install the standard connection plate on the focuser base, secure it with M4 screws to attach it firmly to the AAF and ensure stability.


Electric focusing

6. According to specific usage requirements, connect the USB data cable / temperature sensing cable / handle.
