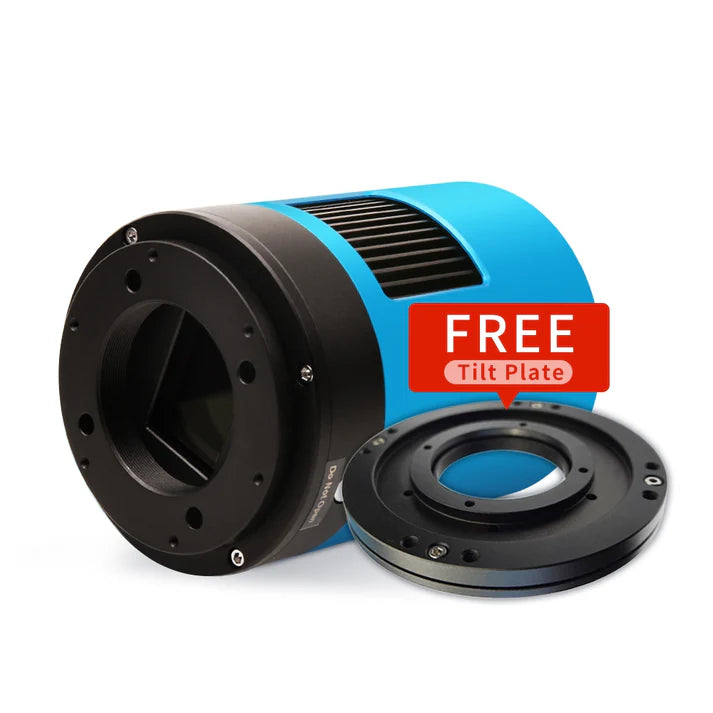

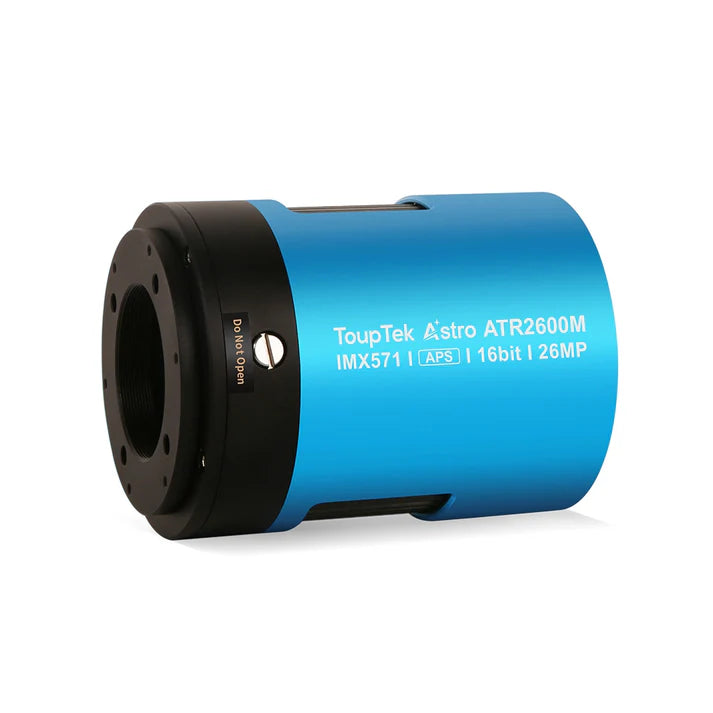

ATR2600M is a professional astronomy camera that combines high precision, high sensitivity, and high stability, bringing users an unprecedented experience in deep-sky photo shooting. ATR2600M features a Sony back-illuminated IMX571 sensor, high gain mode and low noise mode with a readout noise as low as 0.883e-. Native 16bit ADC offers an ultra-high 14 stops of dynamic range, zero amp-glow, and an extra high full well mode! The full well capacity can reach 51 ke- in normal mode, and up to 100 ke- in high full well mode. Its extraordinary performance and extensive usage will give astrophiles a great astrophotography experience.

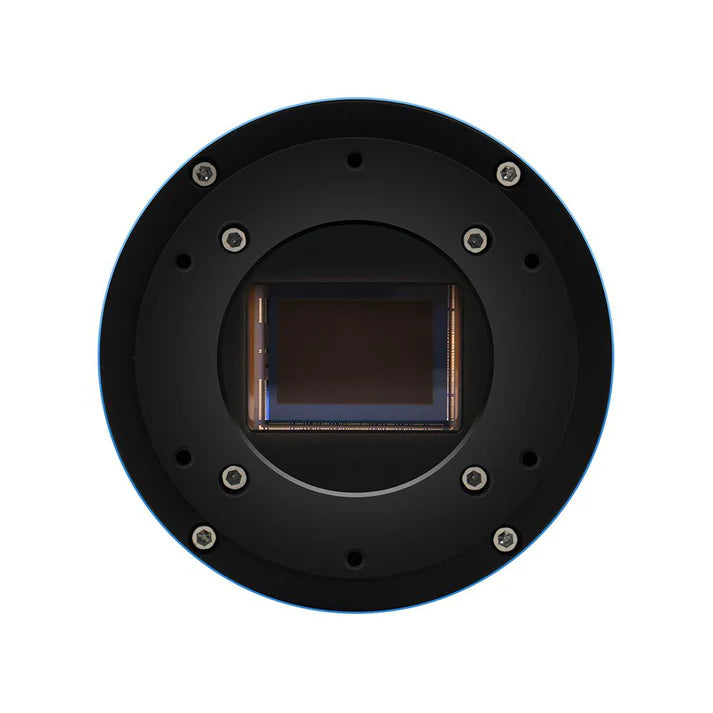

ATR2600C features Sony IMX571 APS-C Optical Format
Resolution: 6224x4168
Pixel Size: 3.76μm*3.76μm
Image Area: 23.5mmx15.7mm,
Diagonal: 28.3mm

ATR2600M camera has a 512MB (4Gb) ultra-fast memory buffer to ensure stable image transmission.

ATR2600M is designed with an integrated heat dissipation structure and an efficient cooling module. The cooling system of ATR2600M features a two-stage Thermoelectric Cooling (TEC) with controllable electric fan assisting in heat dissipation. This allows the image sensor to operate at temperatures up to 42 degrees Celsius lower than the ambient temperature. The exposure time can be set for up to 1 hour, ensuring that every minute detail is captured. Even in summer, it can still run stably all night with cooling temperatures ranging from of -5°C to -10°C.

ATR2600M is a high-dynamic range astro-camera. Its native 16bit ADC achieves a true dynamic range output of 14 stops, which ensures the delicacy and accuracy of the image, and the color transition is smoother and more natural.

ATR2600M has been carefully designed and is able to achieve zero amp-glow photo shooting. This not only greatly reduces the generation of internal glow, but also effectively suppresses the interference of external light. It also enhances the stability and durability of the camera, which means you'll be able to capture sharper, cleaner images in both long and high exposure modes.

ATR2600M adopts the new anti-dew technology , which can effectively solve the condensation problem through heating.

This heating function consumes about 5 watts, which can be turned off via software to save power.

Additionally, The dew heater at the protection window has 4 adjustable levels, allowing users to find the heating power that best suits their needs.

Full resolution
RAW 16-bit mode
Temperature:-10°C

Full resolution
RAW 16-bit mode
Temperature: -10°C
