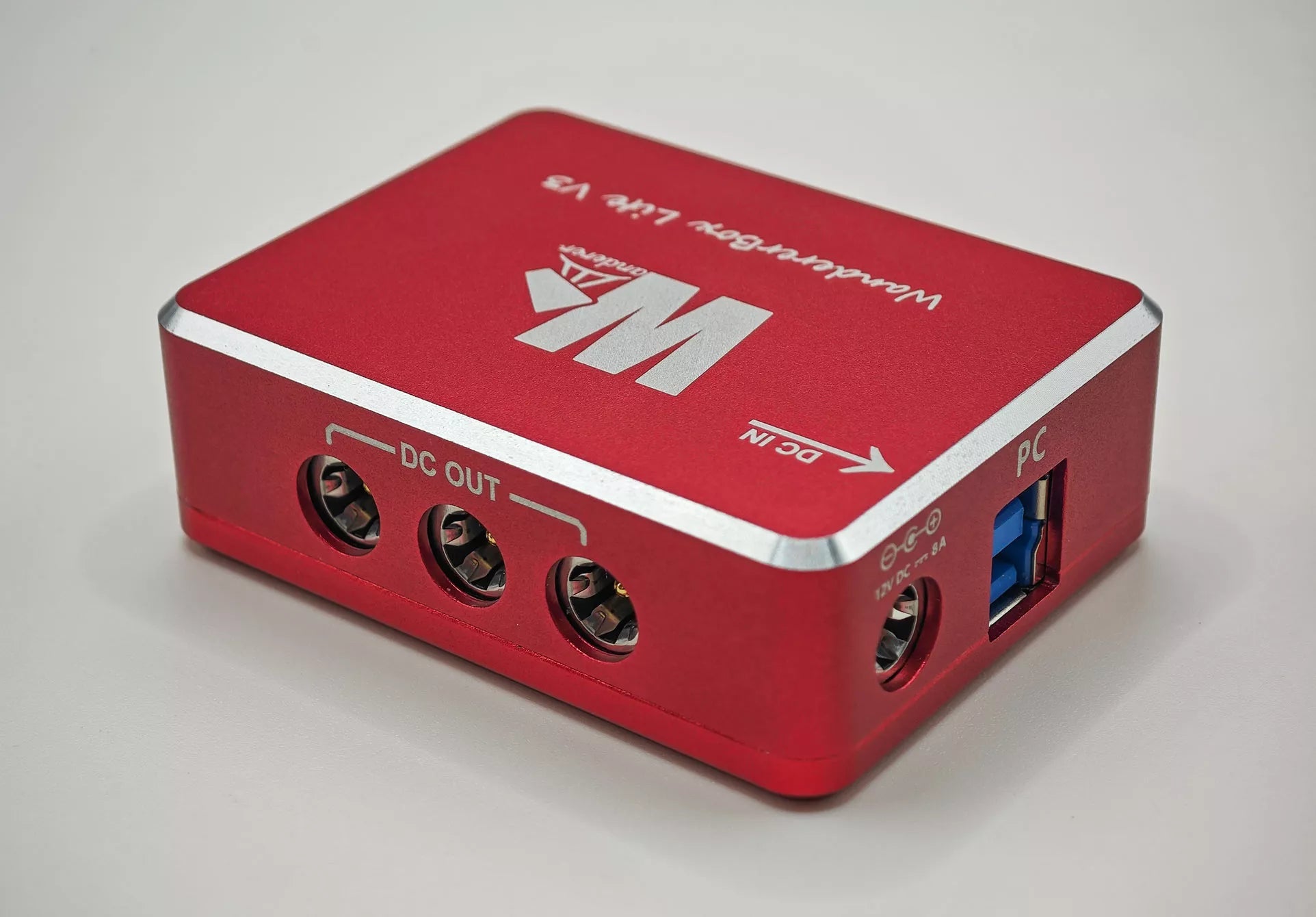

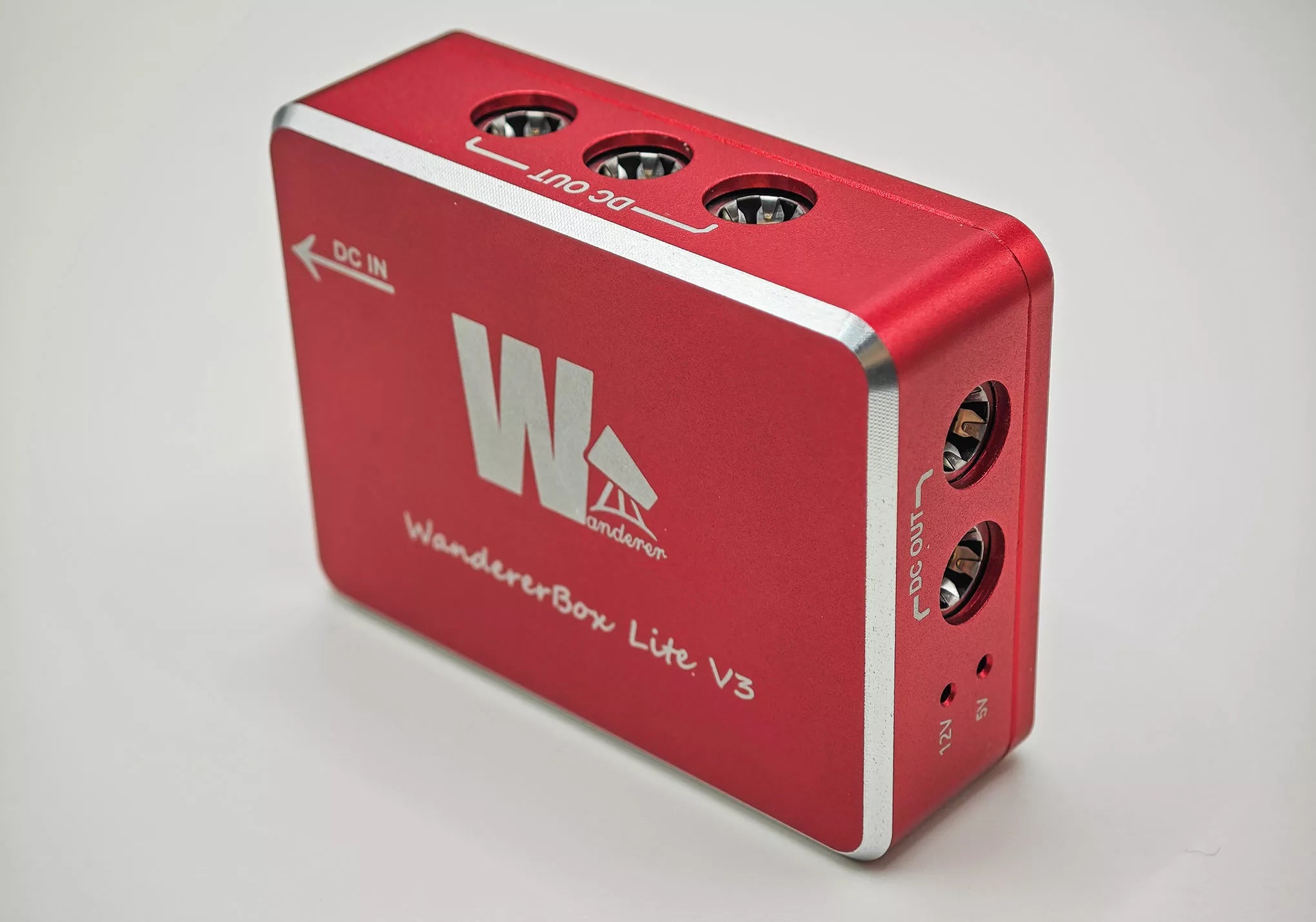

WandererBox Lite V3 Micro DC + USB Hub

The WandererBox Lite V3 is an ultra-compact power distribution and USB hub designed for streamlined astrophotography setups where space, weight, and reliability are critical. Despite its small footprint, it delivers stable power and dependable USB connectivity for modern imaging rigs.

Lightweight, efficient, and secure, the WandererBox Lite V3 is ideal for portable astrophotography setups, travel rigs, and compact observatory installations.

Key Features

• High-performance DC input: DC 5.5 × 2.1 mm (DC5521) input supporting up to 8 A
• Five 12 V DC output channels for powering multiple astronomy devices
• USB connectivity: 1 × USB 3.1 and 3 × USB 2.0 ports
• Integrated 12 V → 5 V step-down module delivering up to 3 A continuous USB current
• Ultra-compact and lightweight: weighs only 88 g

Compact & Lightweight Design

With dimensions of just 6.8 × 5.1 × 2.3 cm and a weight of only 88 g, the WandererBox Lite V3 integrates easily into tight imaging setups. Its low mass helps reduce strain on focusers and mounting hardware, making it ideal for lightweight refractors and portable mounts.

Secure Mounting Options

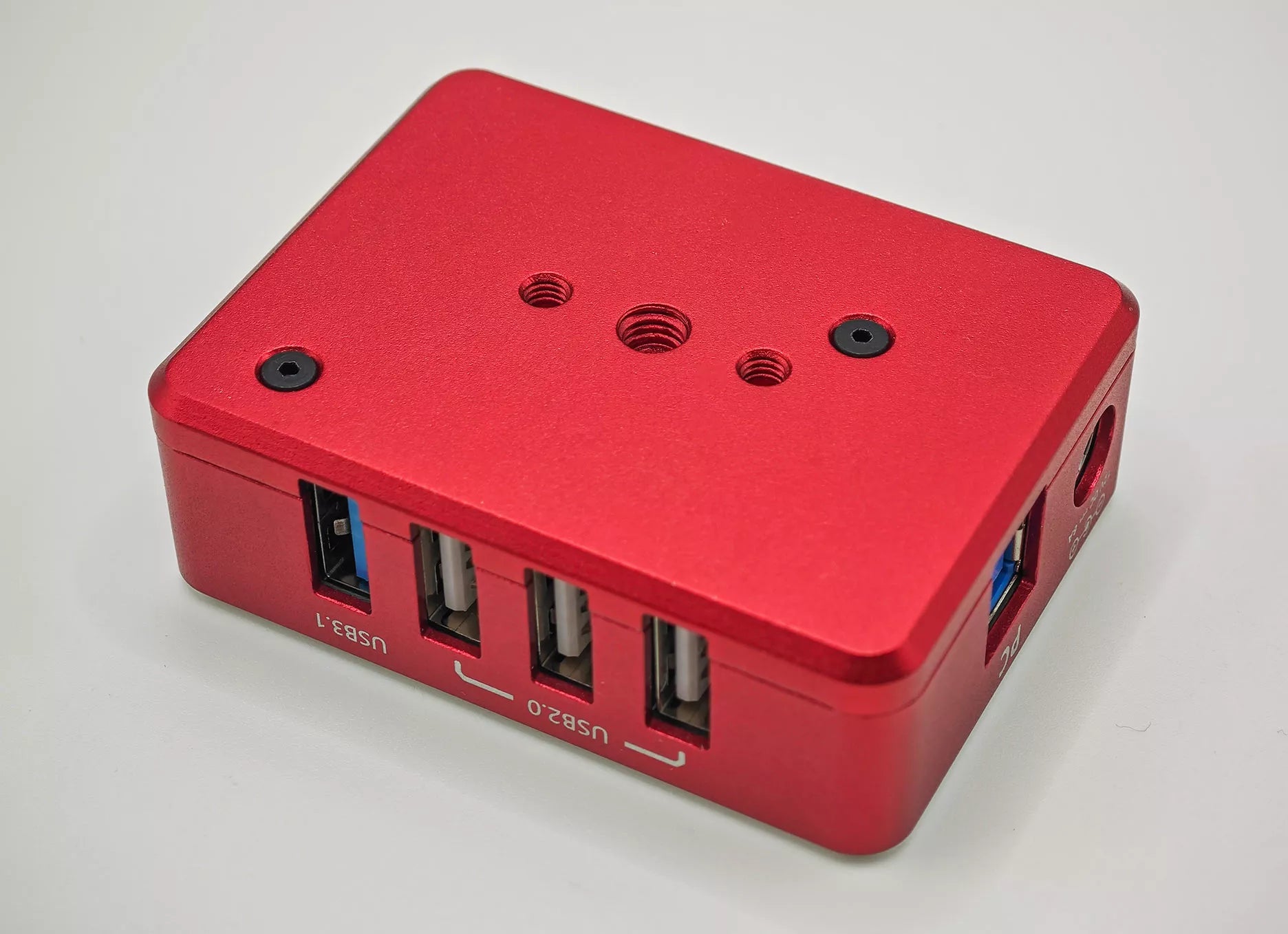

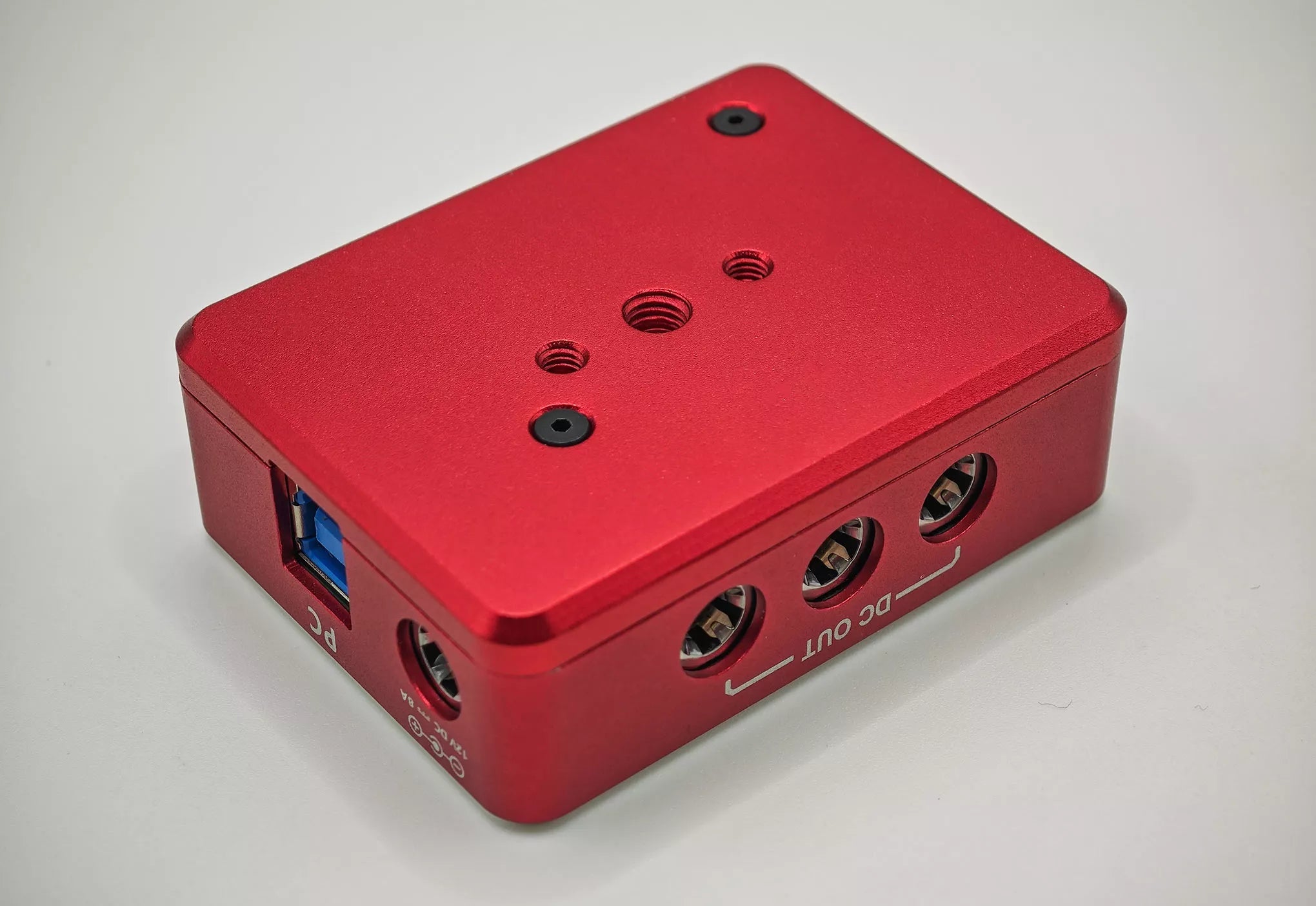

For solid installation, the base features:

• 1 × M6 threaded hole
• 2 × M4 threaded holes (4 mm depth)

These mounting points allow secure attachment to dovetail plates or mounting brackets, ensuring stability during long imaging sessions.

Safety & Electrical Protection

The WandererBox Lite V3 is engineered with comprehensive protection to safeguard both the power hub and connected equipment:

• Electrophoresis protection
• Short-circuit protection
• Overcurrent protection
• Electrostatic discharge (ESD) protection

Status Indicators

Clear 12 V and 5 V LED indicators provide instant visual confirmation of operating status, making it easy to monitor power at a glance — even in low-light observing conditions.

Specifications

What’s Included

• WandererBox Lite V3 Micro DC + USB Hub
