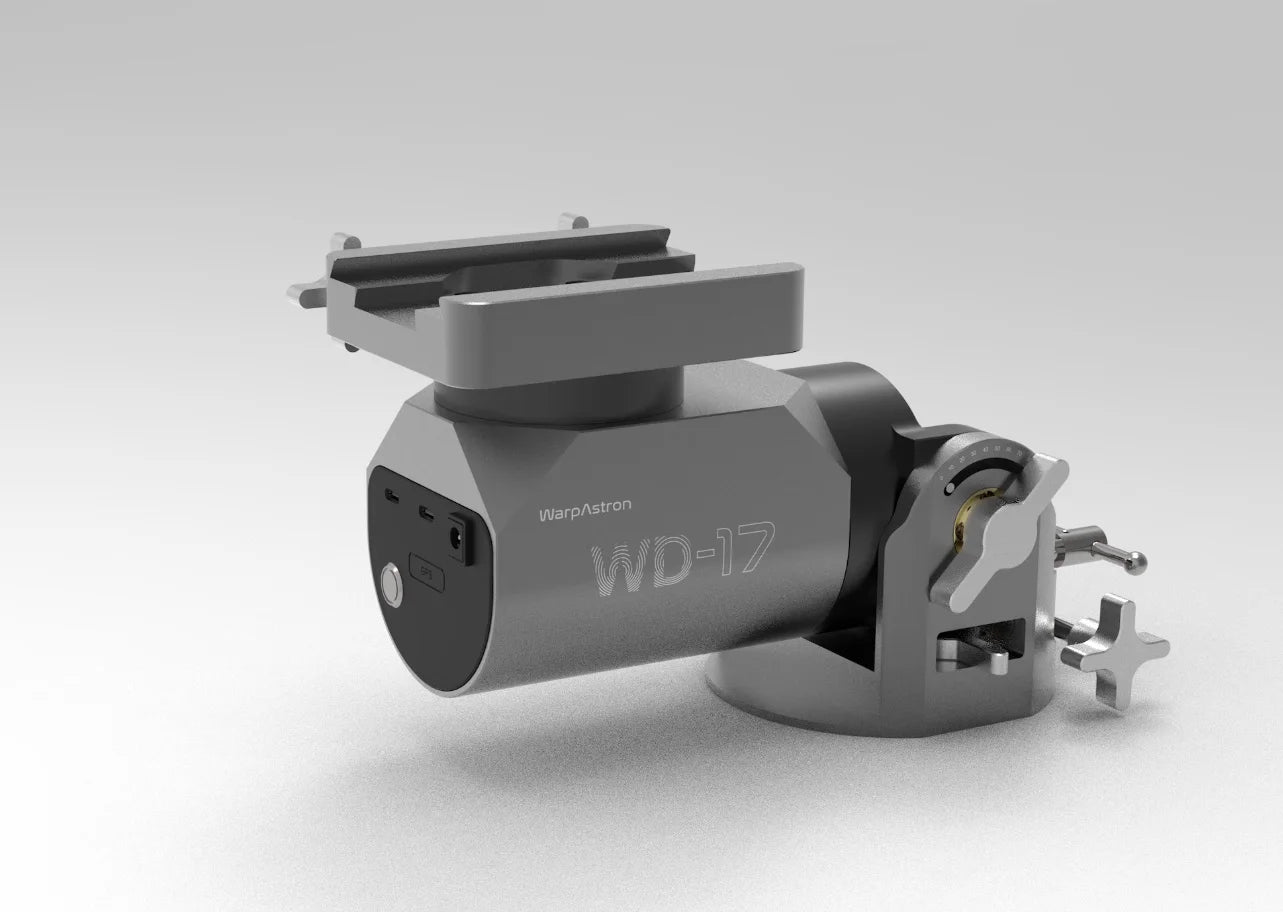

Warpastron WD-17 Harmonic Drive Mount – Lightweight Precision Astrophotography

Warpastron WD-17 Harmonic Drive Mount is a compact, lightweight mount designed for precision astrophotography. Weighing just 4.2kg, this mount supports a payload of up to 20kg, making it ideal for portable setups and fieldwork.

Featuring advanced Servo Direct Drive technology, the WD-17 delivers superior tracking accuracy for long-exposure astrophotography. Its BLDC servo motors and electromagnetic brakes ensure stable operation, while USB Type-C communication provides smooth control during imaging sessions.

Built for durability, the WD-17 includes surge protection and robust materials, ensuring long-term performance in demanding environments. Whether you're capturing deep-sky images or observing planets, this mount delivers precision and reliability in a portable package.

Key Features:

• Lightweight (4.2kg) with a load capacity of up to 20kg
• Servo Direct Drive technology for exceptional tracking accuracy
• BLDC servo motors and electromagnetic brakes for enhanced stability
• USB Type-C communication for seamless operation
• Built-in surge protection for long-lasting durability

Technical Specifications:

• Type: German Equatorial/Altazimuth Mount
• Reducer: RA: 17 harmonic / DEC: 14 harmonic
• Transmission: Servo Direct Drive Harmonic
• Weight: ~4.2kg (with dovetail groove)

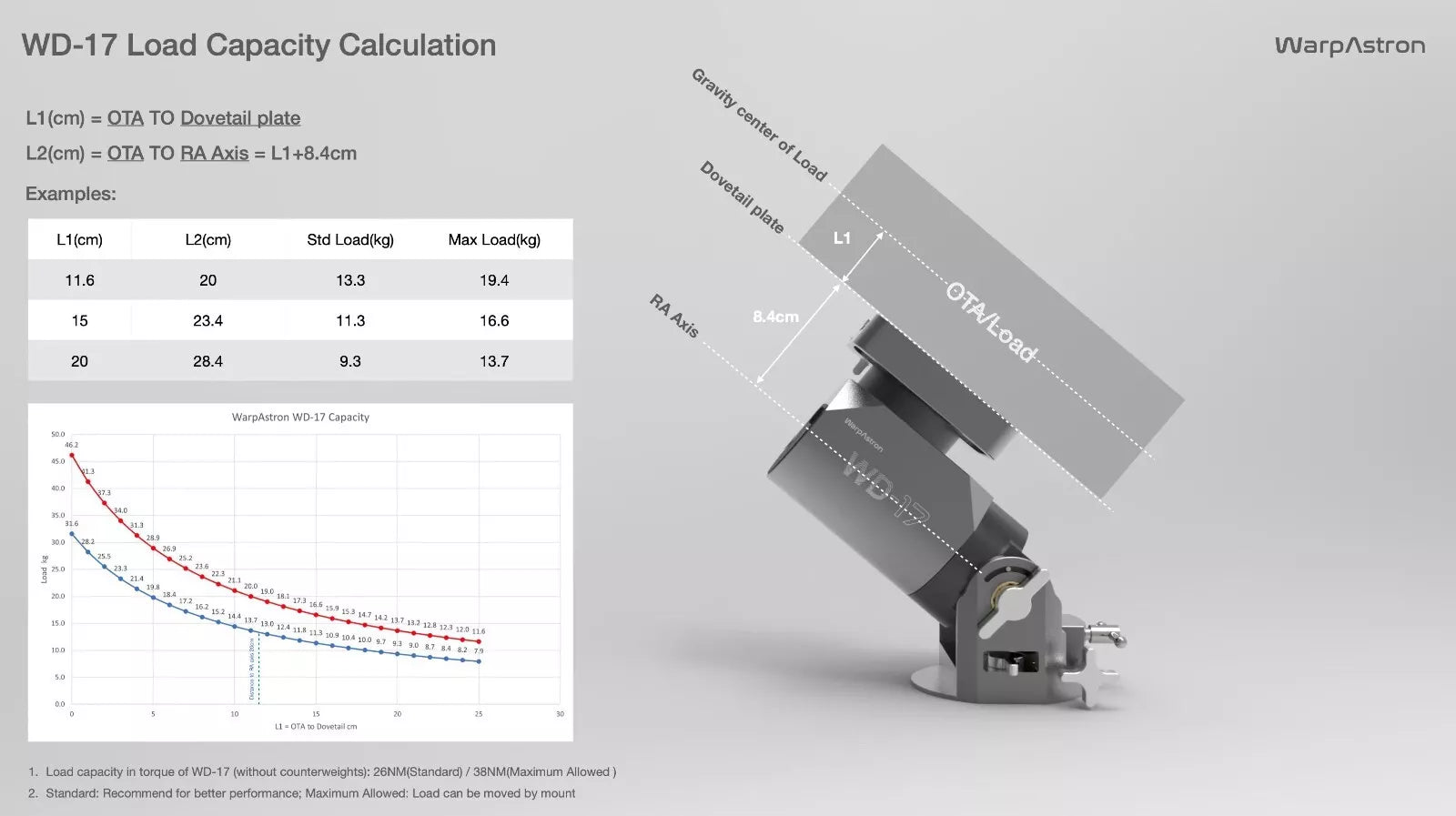

• Load capacity: 13.5kg/20kg (with counterweight) @20cm RA
• Material: Al 6061, Stainless Steel
• Finish: ABS Dark Sky Gray/Graphite Black Anodized
• Home function: Electronic home
• Brake protection: Electromagnetic brake on RA axis
• Adjustment range: ALT: 0-90°, AZ: +/-8°
• Time/Position Sync: GPS/Beidou
• Dovetail Groove Type: Losmandy & Vixen
• Manual Controller: Wired control handle
• Communication Protocol: ASCOM/NDILX 200
• Interface: USB Type-C, Bluetooth or WIFI
• Guide Star Interface: ST4 (USB Type-C)
• Power Supply: 12V 5A
• Power Consumption: Standby: 0.3A, GOTO: 1-2A
• Protection: Surge protection & overcurrent protection
• Low-temperature Environment: 0-30°C

Get your Warpastron WD-17 Harmonic Drive Mount today from Dark Clear Skies for £2,250.00 with free shipping. Experience the ultimate in portable astrophotography mounts!
