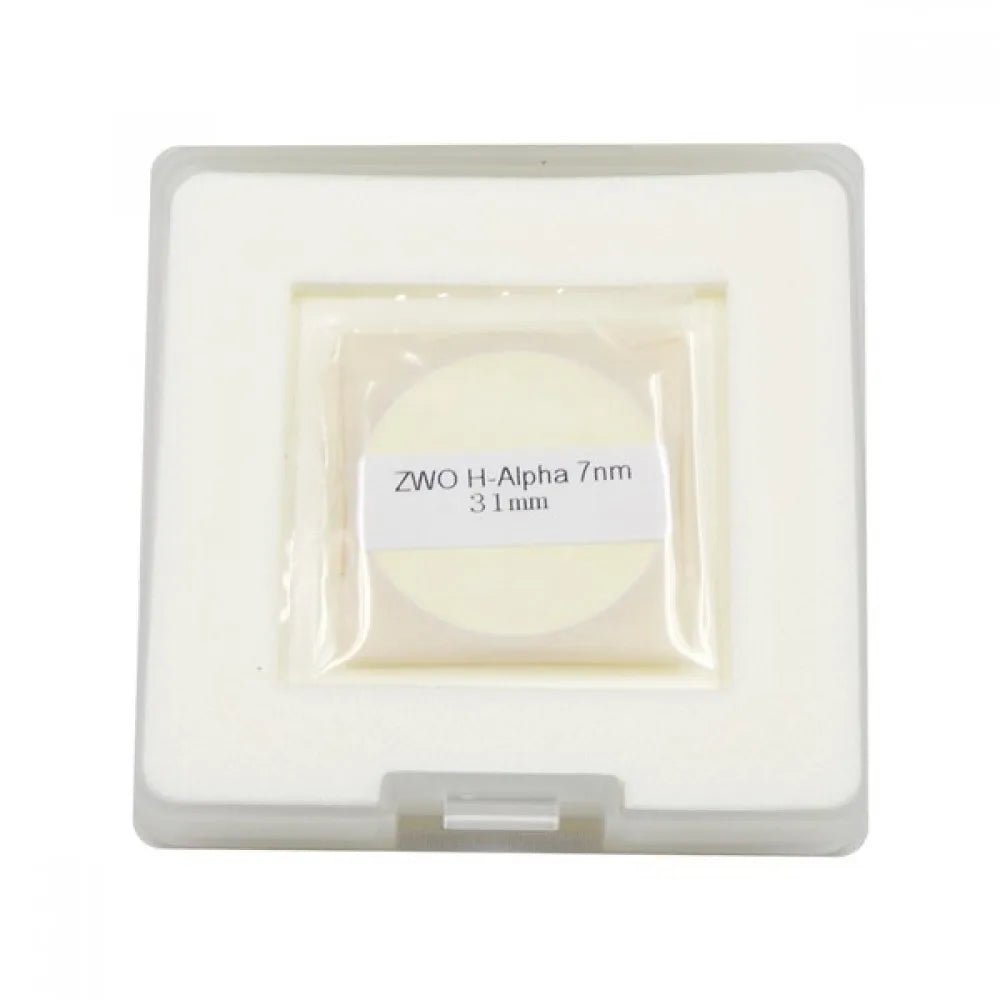

ZWO
Z258-Ha7nmD31MkII
Free UK Shipping - Estimate US & Europe Shipping at checkout.
Some amateur astronomers would use a H-alpha filter when the Moon is out or if they live in heavily light polluted areas as these filters would practically eliminate the effects of light pollution as a side effect. By applying longer exposure time you will increase the brightness of the nebulosity whilst stars will still appear much fainter (thus smaller and sharper) than if they were imaged with LRGB filters. The sky's background will also stay darker hence contrast will be increased. Many amateurs would use a H-alpha filter in combination with an LRGB set for certain objects, mainly nebulosity's.
Others would use a H-alpha filter with a colour camera. Although it might seem counter productive, but it is a good compromise when you don't want to spend lots of time with post processing, but sometimes you need that extra narrowband data for a deep sky object... best to use it with fast imaging telescopes with f/8 and faster focal ratio.
Technical Specifications of ZWO H-alpha Narrowband Filter
Size: 31mm unmounted
Fine-optically polished to ensure accurate 1/4 wavefront over both surfaces
FWHM:7 ± 0.5nm
Thickness of glass: 1.9mm ± 0.03mm
Total Thickness: 9mm = 5.5mm + 3.5mm (thread)
Optical Length: 5.5mm
Thread: M28.5*0.6 male thread (standard 1.25" filter thread)
The ZWO H-Alpha filter has a bandpass of 7nm and passes light at 656nm wavelength. The light transmission rate comes up to appr. 90% (min. 80%). A 7nm type is a very good choice for narrowband H-alpha astrophotography for high-contrast imaging and revealing rich details of a nebula even in areas with strong light pollution, so prepare to have lots of fun with it!
WHICH DIRECTION TO INSTALL THE FILTERS IN?
It is a tricky question as we asked various manufacturers and most of these manufacturers think that it doesn't matter, however the manufacturer of ZWO filters advises that in the case of their latest (mark II) narrowband filters the coated side of the filter should face the telescope. Well, there is nothing to loose to follow their advice, so lets do it. Now, how to find out which side is the coated? Open the case and remove the filter from its pouch and put it on top of the pouch as this is most likely the most dust free element in your surrounding. Now hold an item, i.e. a pen above the filter, close enough, but make sure that it won't touch the filter. If you see a single reflection as if it was a mirror, that's the coated side; that side should face the telescope. If you see a double reflection, that side has an anti-reflection coating only and it should face the camera sensor.
Image below shows a double reflection of the pen, so that side should face the camera:
Image below shows a single reflection of the pen, so that side should face the telescope:

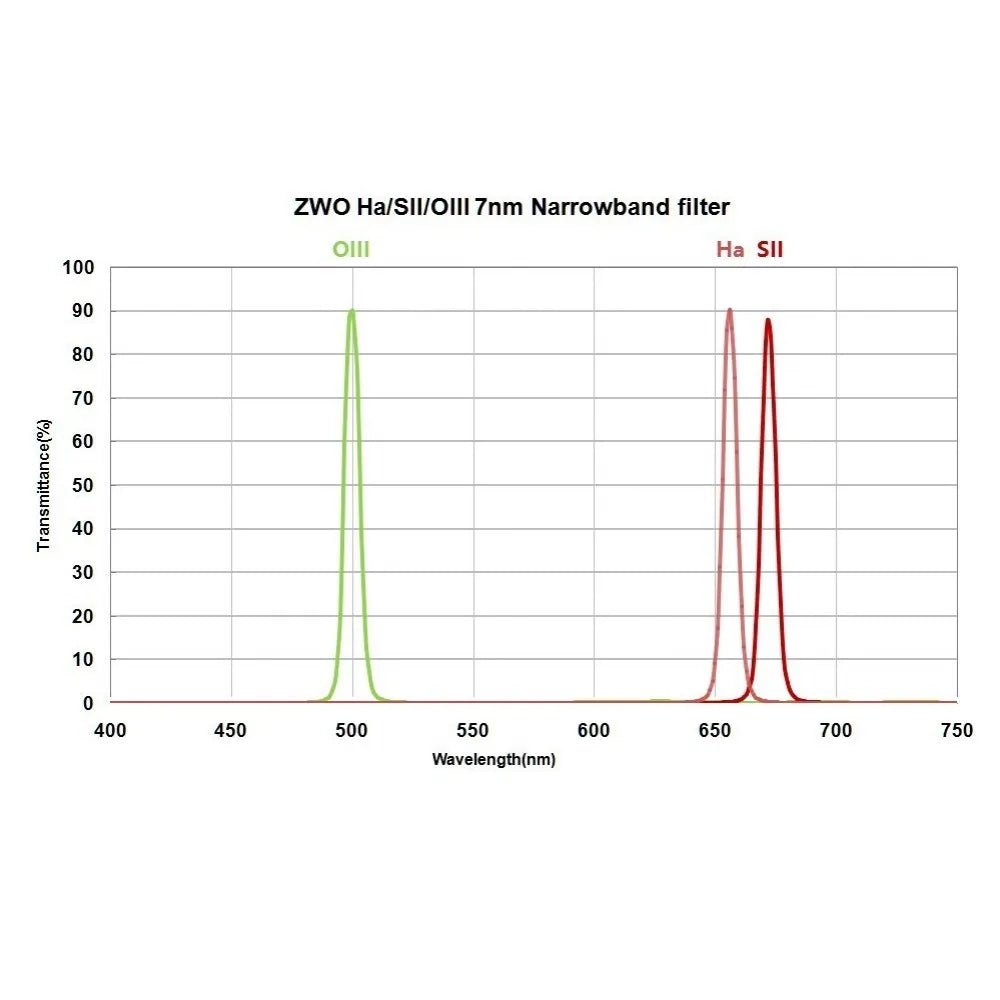

Transmission Curve
Comparison of New (Mark II) and Old Narrowband filters:
The New (Mark II) Ha filter is based on a new base glass, resulting in less reflection (i.e. less halo around bright stars).
The New (Mark II) SII filter is based on a new base glass, resulting in less reflection (i.e. less halo around bright stars).
The New (Mark II) OIII filter is based on the same base glass, but with a new standard coating, resulting in improved blocking of off-band light.
Here is a sample image of a test comparison of the old and new ZWO narrowband Ha Filters (ASI1600 mono camera, single frame, 300s, DDP in MaximDL).
The difference is subtle, but visible, especially when there are really bright stars in the field of view:
