ZWO ASI 071MC Pro: Unleash the Magic of Deep Sky Imaging

Introducing the newly-tuned ZWO ASI 071MC Pro, ZWO's second-generation deep sky imaging camera. With a host of mechanical and hardware improvements, this camera is designed to take your astrophotography to new heights. Backed by a 2-year warranty, you can trust in its reliability and performance.

ZWO ASI 071MC Pro DDR Memory Buffer & Reduced Amp-Glow

Enhance data transfer reliability with the 256MB DDR3 memory buffer. Say goodbye to amp-glow, thanks to this buffer that optimizes data transfer speeds, especially when used with a USB 2.0 port. Enjoy improved performance and stunning results with ZWO's commitment to development.

Impressive APS-C Sensor & Two-Stage TEC Cooling

The ZWO ASI 071MC Pro boasts an APS-C sized 16MP imaging sensor, found in Nikon D7000 and D5100 cameras. Designed specifically for deep sky imaging, this camera features two-stage TEC-cooling to minimize noise, ensuring every detail of the cosmos is captured with precision.

Single Shot Colour Convenience

Say goodbye to complex filter sets. With the ZWO ASI 071MC Pro, you can achieve colour images in just one step. Stack multiple images to reduce noise and create stunning, artifact-free Astro-photos. Perfect for those seeking breath-taking results with minimal effort.

ZWO ASI 071MC Pro USB 3.0 & USB 2.0 HUB

Experience high-speed data transfer with the USB 3.0 Port, supporting 10fps @ 4944X3284 resolution. The USB 2.0 HUB connects various accessories, like a filter wheel, guide camera, or electronic focuser, managing cables efficiently for smooth operations.

ZWO ASI 071MC Pro Advanced Mechanical Design & Anti-Dew Heater

The ZWO ASI 071MC Pro features upgraded mechanical design, effectively preventing dew or frost formation on the sensor. The anti-dew heater protects the AR window, while the two-stage TEC cooling system offers deep cooling down to 35°C-40°C below ambient temperature.

Explore the Cosmos Like Never Before

With the ZWO ASI 071MC Pro, unleash your passion for astrophotography. Capture stunning deep sky objects with ease and precision. Whether you're a seasoned Astro photographer or just starting, this camera will elevate your imaging to celestial heights.

ZWO ASI 071MC Pro : Key Features:

• Sony IMX071 APS-C (1.8″) Sensor
• Regulated Two-Stage Tec-Cooling
• Low Read Noise: 2.3e @24db gain, 3.3e @lowest gain
• 14Bit ADC for Real 14bit Dynamic Range
• USB3.0 Port & USB2.0 HUB
• AR Coated Protect Window
• Controllable Anti-Dew Protect Window Heater

Embrace the beauty of the night sky with the ZWO ASI 071MC Pro. Order now and embark on an astrophotography journey like no other!

ZWO ASI 071MC Pro

The second deep sky imaging camera that ZWO released has just been tuned up in its new reincarnation, the ZWO ASI 071MC Pro.

Comes with 2 years warranty

DDR Memory Buffer

ZWO ASI 071MC Pro camera includes a 256MB DDR3 memory buffer to help improve data transfer reliability. Additionally, the use of a memory buffer minimizes amp-glow, which is caused by the slow transfer speeds when the camera is used with a USB 2.0 port.

One of the main differences between the old and new versions is the added DDR memory buffer, but there are other mechanical improvements also show ZWO's commitment to development.

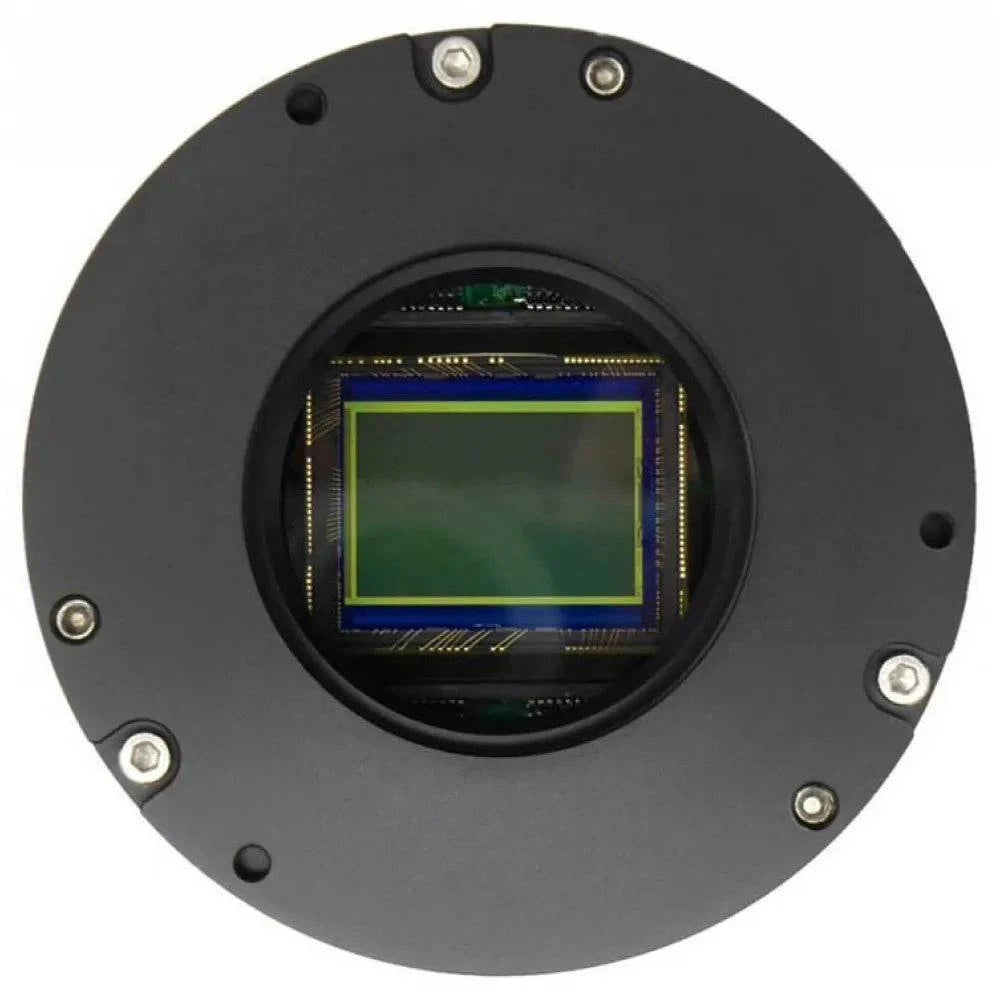

ZWO ASI 071MC Pro

It still features exactly the same APS-C sized 16MP imaging sensor. The same sensor you will find in a Nikon D7000 and D5100, but the big difference is that the electronics were designed specifically for deep sky imaging and it also comes with two-stage TEC-cooling. This camera is only available as a colour version, so you would be advised to use it in areas with good quality dark skies with limited light pollution or alternatively use it with a CLS or UHC filter to reduce the effects of light pollution...

Single Shot Colour only refers to the fact that you don't need to use LRGB filter sets or narrowband filter sets to take images when you use this camera. You can achieve a colour image in just one step, although in practice you would probably still take several images and stack them together to reduce noise and get rid of other artefacts...  So if you have limited time and only want pretty pictures with comparatively small effort, this is the camera for you.

With the ZWO ASI071MC-PRO you won't have to spend lots of time to get beautiful images, however if you need to tackle light pollution, you would also need a light pollution filter like a UHC or CLS filter. Depending on the F-ratio of your telescope you would need either a 36mm filter (without cell) or maybe even a 2" filter (in cell). Contact us if you are not sure what filter you need and how to attach it to this camera.

ZWO ASI 071MC Pro Astrophotography Performance

Based on the features of this camera we would anticipate that it would be a very good choice for imaging deep sky object for those who don't want to bother with filters, (other than a light pollution filter if necessary), plus with 10 frames per second frame rate it will most likely provide stunning views of the moon when used as a live view visual observation tool. (of course, it will also depend on the used telescope and seeing conditions)

Features of the NEW ZWO ASI 071MC Pro camera

• Most famous SONY sensor: Sony IMX071 APS-C (1.8″)
• Regulated Two-stage Tec-Cooling: 35-40 degree below ambient temperature
• Very low read noise: 2.3e @24db gain 3.3e @lowest gain
• 14Bit ADC: provide real 14bit Dynamic range
• Electronic shutter: no vibration problem with mechanical shutter
• USB3.0 Port (back compatible with USB2.0): 10fps@4944X3284  134fps@320X240
• AR coated protect window :all light can pass
• Controllable Anti-Dew protect window heater: you can turn it off to save power
• External desiccant tube design: no need to open camera forever
• Compatible with Windows / Mac OS / Linux

ZWO ASI 071MC Pro Dark Current

The Dark Current in the ASI071MC-PRO is better controlled than before with the help of a DDR buffer memory and new improvements of hardware design

Please check this 300s dark frame free of amp-glow

QE Curve

the QE peak value is estimated to be above 50%.

Unique Tilt Adapter

The ZWO ASI 071MC Pro comes with a unique, built-in tilting device. Say goodbye to tilt problems forever!

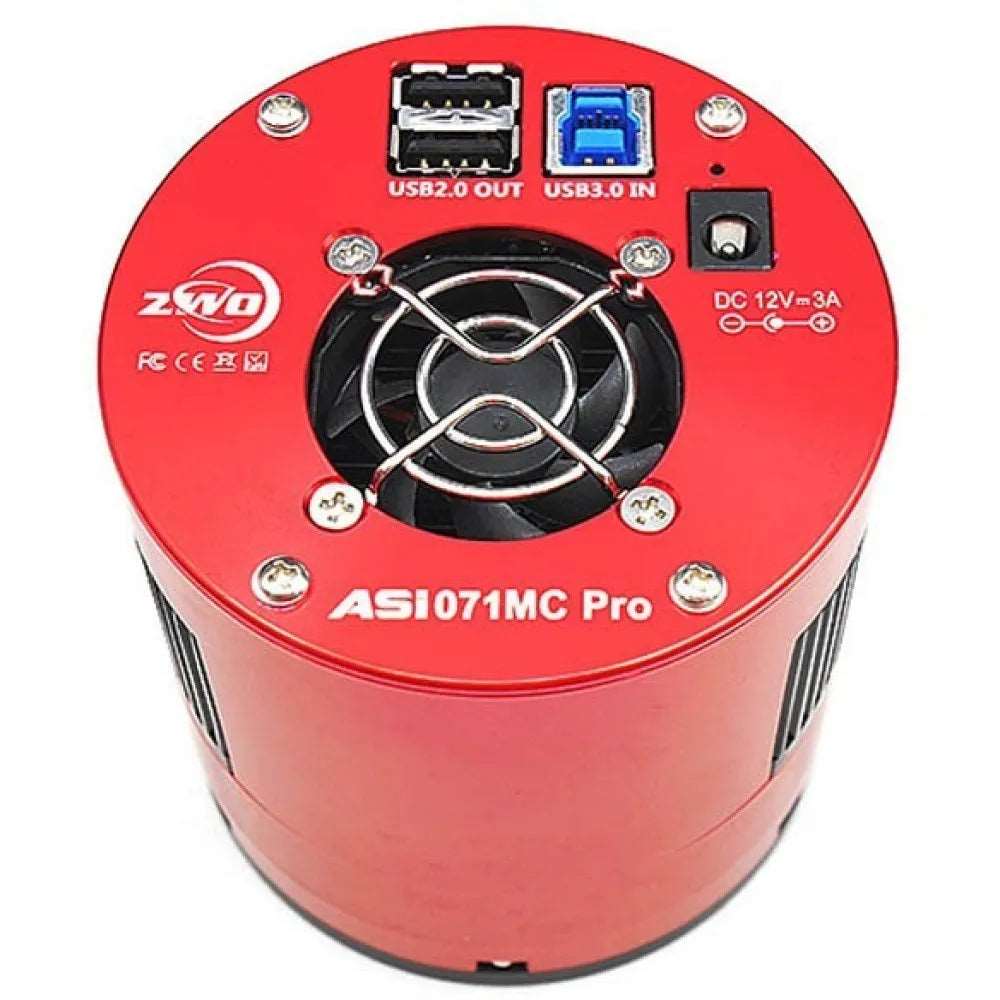

ZWO ASI 071MC Pro USB 3.0 Port & USB2.0 HUB

USB 3.0 Port: Provides 5Gb bandwidth to make it possible for ZWO ASI 071MC Pro to run at 10 fps (14bit, normal mode) at full resolution (16Megapixels).

New mechanical design and Anti-Dew Heater

ZWO ASI 071MC Pro Camera has been mechanically upgraded as well and the internal anti-dew heating system improved.

Please note, due to the above improvements, the diameter of the camera body is increased to 86mm (ASI071MC-Cool was 78mm in diameter).

6 screws seal the chamber

This new structure seals the CMOS chamber better that prevents dew or frost appear on the sensor.

Anti-dew and cooling system

ZWO ASI 071MC Pro has a two-stage TEC cooling system that allows deep cooling  to 35°C-40°C below ambient). You will need an external power supply to power the cooler.

The anti-dew heater will heat the AR protect window to avoid any dew problems. The anti-dew heater takes around 3.6W power and can be turned off from the software to save power (i.e. when it is powered from a battery or power tank)

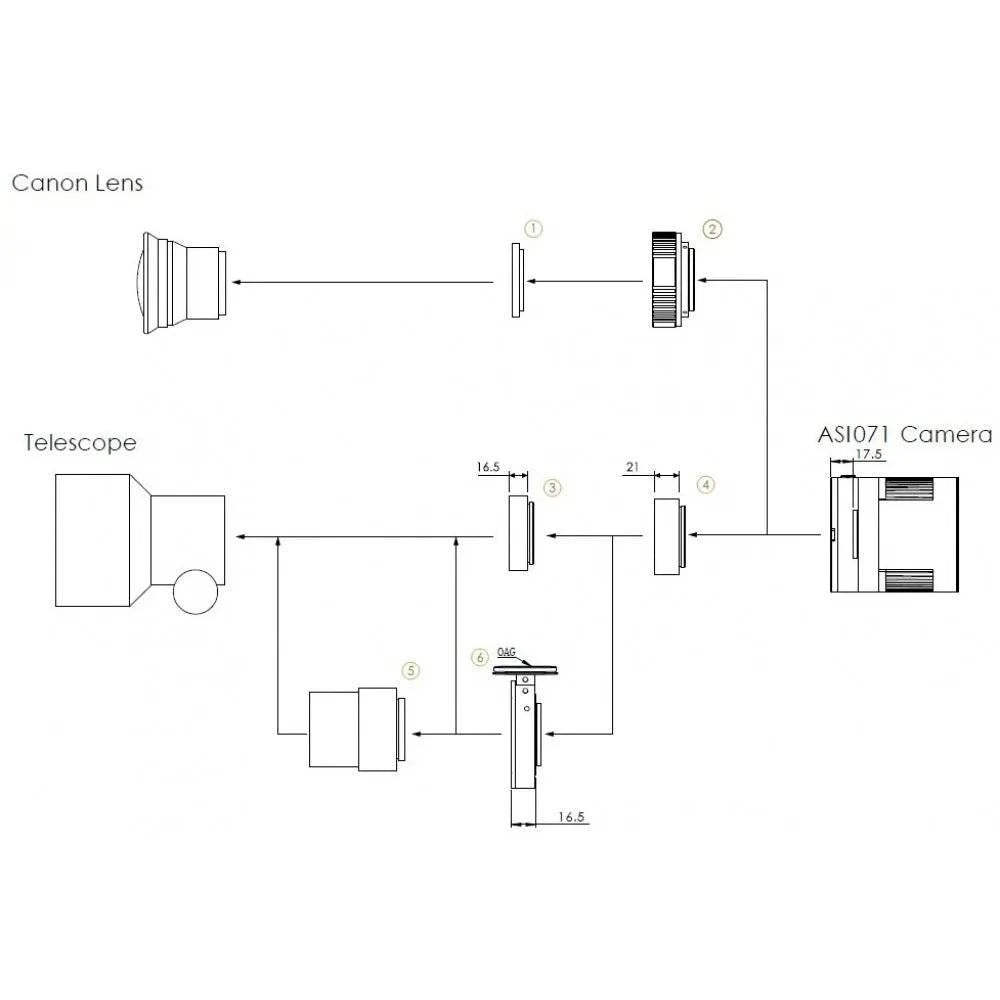

ZWO ASI 071MC Pro Connections Drawing

1. 2”Filter (optional)
2. EOS-T2 adapter
3. M42 to M48 extender 16.5mm
4. M42 extender 21mm
5. Focal reducer
6. OAG

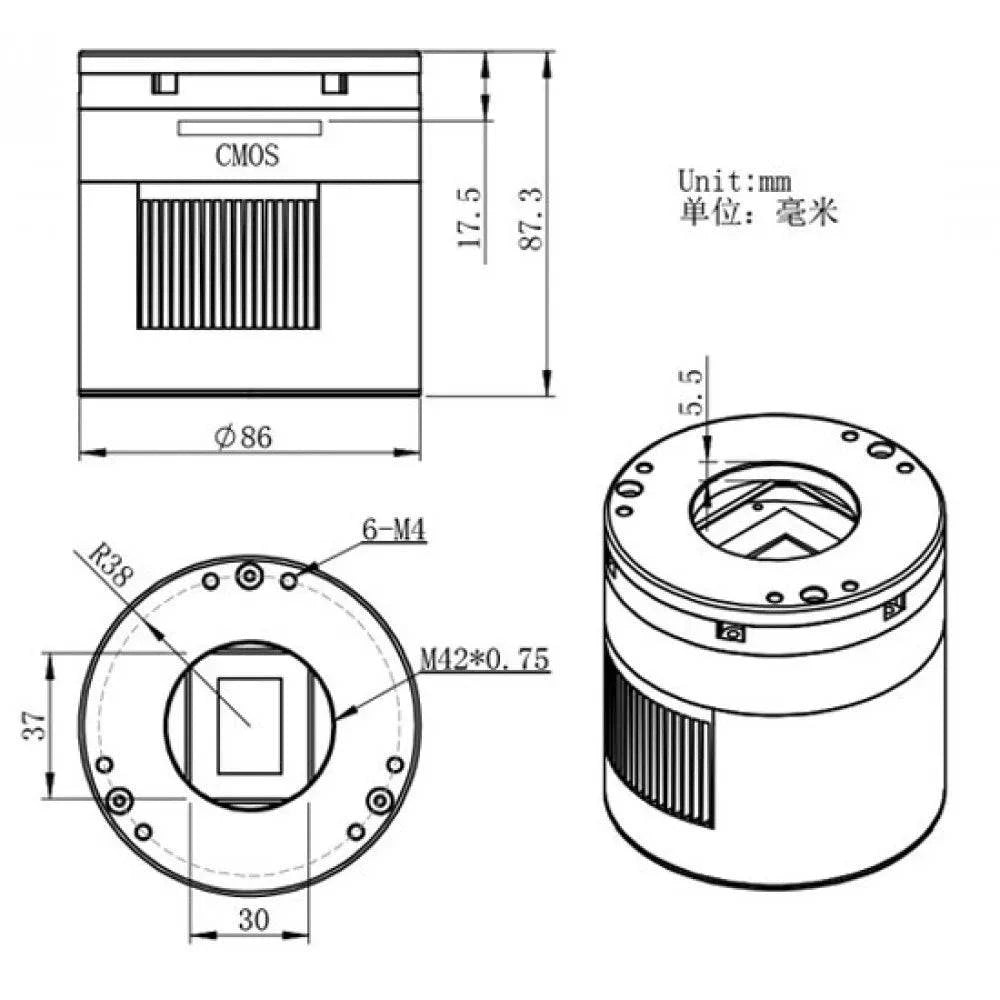

ZWO ASI 071MC Pro Mechanical Drawing

ZWO ASI 071MC Pro : What is in the box?

The ZWO ASI 071MC Pro box includes all necessary cables, drivers, adapters, and manuals.

DOWNLOADS

On the included CD you'll find drivers and two software applications: Fire-capture and Sharp-Cap. These are both freeware and the latest versions can be downloaded from the developers' websites.
We'd recommend to always use the beta version of Fire-capture, but reverse to the latest stable version if you experience problems.

TROUBLESHOOTING

Here you can download a pdf file that will guide you through ZWO ASI camera troubleshooting. Click here!

ALL SKY CAMERA
due to the large sensor size, a 150 degree wide lens IS NOT included as it is not compatible.

Specifications of the ZWO ASI071MC-PRO

ZWO ASI 071MC Pro Camera technical details

Sensor: SONY IMX071 CMOS
Diagonal: 28.4mm
Resolution: 16Mega Pixels 4944X3284
Pixel Size: 4.78µm
Max FPS at full resolution :10FPS
Shutter: Rolling shutter
Exposure Range: 64µs-2000s
ROI: Supported
Read Noise: 2.3e @24db gain
QE peak: TBD
Full well: 46ke
ADC:14bit
Interface: USB3.0/USB2.0
Adaptor: M42X0.75
Protect window: AR window
Dimensions: 78mm Diameter
Weight: 500g
Back Focus Distance: 17.5mm
Cooling: Regulated Two Stage TEC
Delta T: 35-40 below ambient
Cooler Power consumption: 12V at 3A Max
Working Temperature: -5°C—45°C
Storage Temperature: -20°C—60°C
Working Relative Humidity: 20%—80%
Storage Relative Humidity: 20%—95%

ZWO ASI 071MC Pro Supported resolution

14Bit ADC
4944×3284 10fps
1920×1200 28fps
1280×1080 33fps
640×480 70fps
320×240 134fps

more resolutions are user defined
