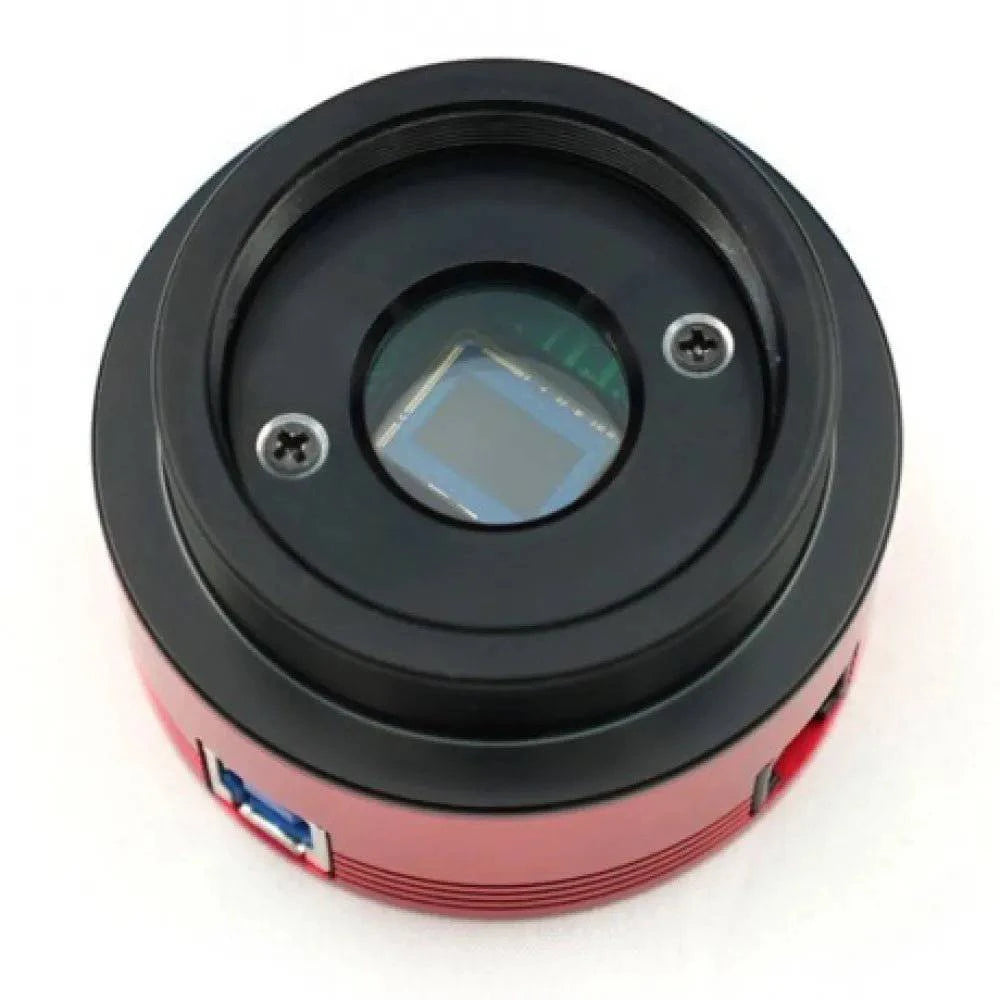

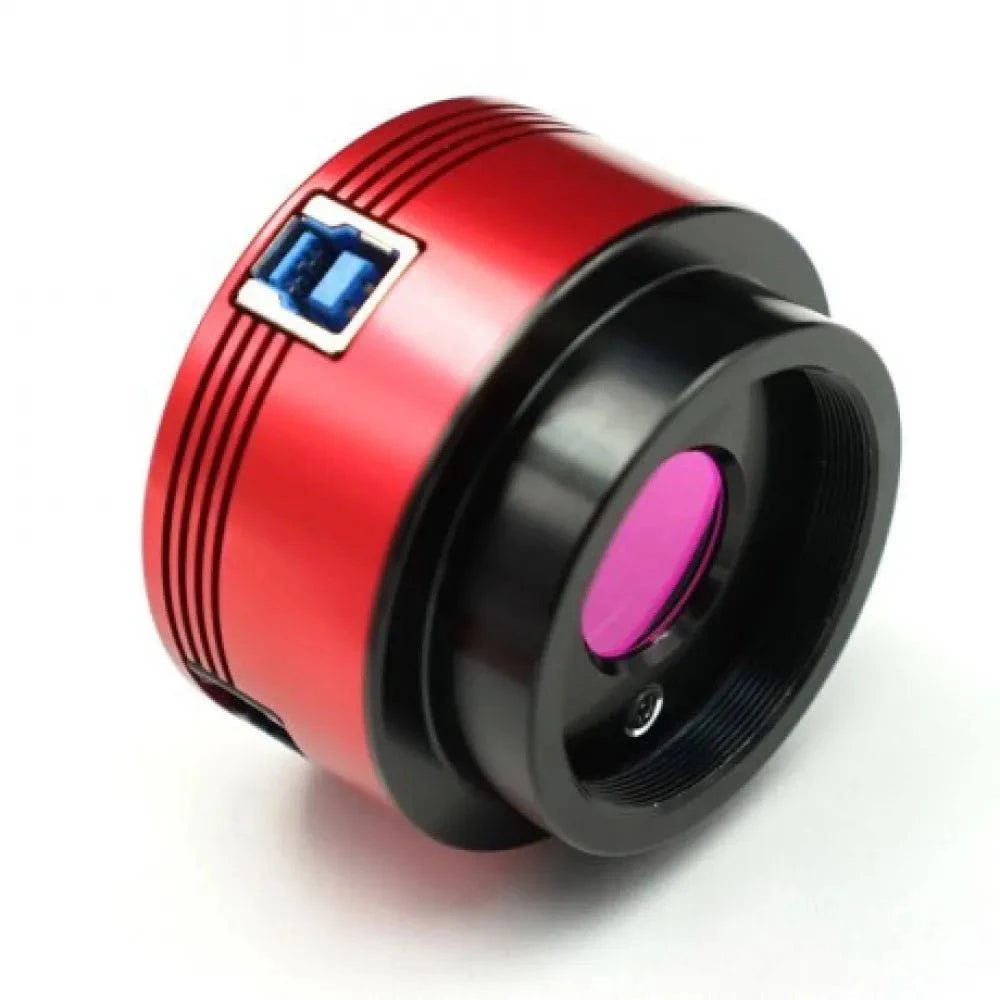

ZWO ASI 174MM  USB3.0 Monochrome CMOS Camera – Precision Planetary & Deep Sky Imaging

Introducing the ZWO ASI 174MM  USB3.0 Monochrome CMOS Camera, bringing SONY's Pregius Global Shutter CMOS technology to the hands of amateur astronomers. This camera combines a large sensor, large pixel size, and high frame rate, making it a powerful tool for lunar, solar, and deep sky imaging. With its affordable price and superior performance, it's an excellent option for beginners and experienced astrophotographers alike.

Unlock the Potential of Lunar, Solar & Deep Sky Imaging

The ZWO ASI 174MM  shines in lunar and solar imaging, capturing detailed images of the Moon's surface and solar phenomena. For solar imaging, ensure you use a proper solar filter in front of your telescope or refractor to protect your equipment and your vision. This camera is also capable of imaging deep-sky objects with long exposures, up to 1000 seconds, allowing you to explore celestial wonders beyond the solar system.

ZWO ASI 174MM Global Shutter Technology for Sharper Results

Featuring SONY Pregius Global Shutter CMOS technology, the ASI174MM captures high-quality images without the distortion typically associated with rolling shutter technology. This ensures that fast-moving objects like planets, the Moon, or the Sun can be imaged with precision and clarity, producing smooth, sharp results even during high-speed captures.

ZWO ASI 174MM USB3.0 for High-Speed Connectivity

The USB3.0 connection ensures fast data transfer, enabling you to capture images at a resolution of 1936x1216 at up to 164 FPS (12-bit ADC) or 128 FPS (10-bit ADC). The camera is also backward-compatible with USB2.0 for versatile use with a range of devices. If you're using newer laptops, the USB3.0 speed significantly enhances planetary and solar imaging performance.

Monochrome Imaging for Higher Contrast

The ZWO ASI 174MM  is a monochrome camera, designed for superior sharpness and contrast, especially in L-RGB or narrowband deep-sky photography. The monochrome sensor allows you to use separate filters for capturing more detail, making it ideal for advanced astrophotographers looking for optimal results in planetary and deep-sky imaging. For those who prefer simplicity, the colour version (ZWO ASI174MC) is also available.

ZWO ASI 174MM Key Features & Specifications:

• Resolution: 1936x1216 at up to 164fps (12-bit ADC) or 128fps (10-bit ADC)
• Exposure Time: Long exposures up to 1000s for deep-sky imaging
• Auto-guider Port: Built-in for guiding support during long exposures
• Data Output: RAW and Grey mode support, saving storage space and improving performance
• Quantum Efficiency: Peak QE of 78%, enhancing light sensitivity
• No FPN: No fixed pattern noise, ensuring clean, smooth images
• Build: Full aluminium housing with 2" interface, M42X0.75 internal thread
• Sensor: 1/1.2" CMOS SONY IMX174LLJ
• Pixel Size: 5.86µm
• Exposure Range: 32µs-1000s
• Interface: USB3.0 (backward compatible with USB2.0)
• Adaptor: 2" / 1.25" / M42X0.75
• Dimensions: φ62mm x 41mm
• Weight: 140g
• Operating Temperature: -5°C to 45°C
• Storage Temperature: -20°C to 60°C
• Humidity Range: Working: 20%-80%, Storage: 20%-95%

ZWO ASI 174MM Software and Drivers Included

The ZWO ASI 174MM  comes with drivers and two powerful software applications: FireCapture and SharpCap. For the best experience, we recommend downloading the latest versions from the developers' websites. The camera is compatible with Windows, Linux, Arm-linux, and Mac OSX, ensuring wide compatibility with a range of operating systems.

ZWO ASI 174MM What’s in the Box:

• 1x ZWO ASI 174MM USB3.0 Monochrome Camera
• 1x USB3.0 Cable
• 1x ST4 Cable for auto-guiding
• 1x 1.25” Nosepiece
• 1x 2” Filter Adapter
• 1x Protective Cover
• Software and drivers CD

Why Choose the ZWO ASI 174MM Camera?

If you’re looking for a reliable, high-performance camera for planetary, solar, and deep-sky imaging, the ZWO ASI 174MM is a top choice. Its large sensor size, global shutter technology, and high frame rate make it perfect for capturing detailed images of fast-moving celestial objects. Whether you're imaging the Moon, Sun, or deep-sky objects, the ZWO ASI 174MM  delivers sharp, contrasty images, especially in monochrome. Its versatility with guiding and imaging makes it an excellent all-around camera for astrophotographers of all levels.

Order Now with Free UK Shipping

Don’t miss out on the ZWO ASI 174MM USB3.0 Monochrome Camera with SONY Pregius Global Shutter technology. Order today and enjoy free UK mainland shipping on your purchase. With a 2-year warranty included, this camera is built to last and deliver exceptional imaging results for years to come.

Limited stock available – order your ZWO ASI 174MM today!
