ZWO ASI 462MM

£269.00 £299.00 10% Off

Free UK Shipping - Estimate US & Europe Shipping at checkout.

Quantity

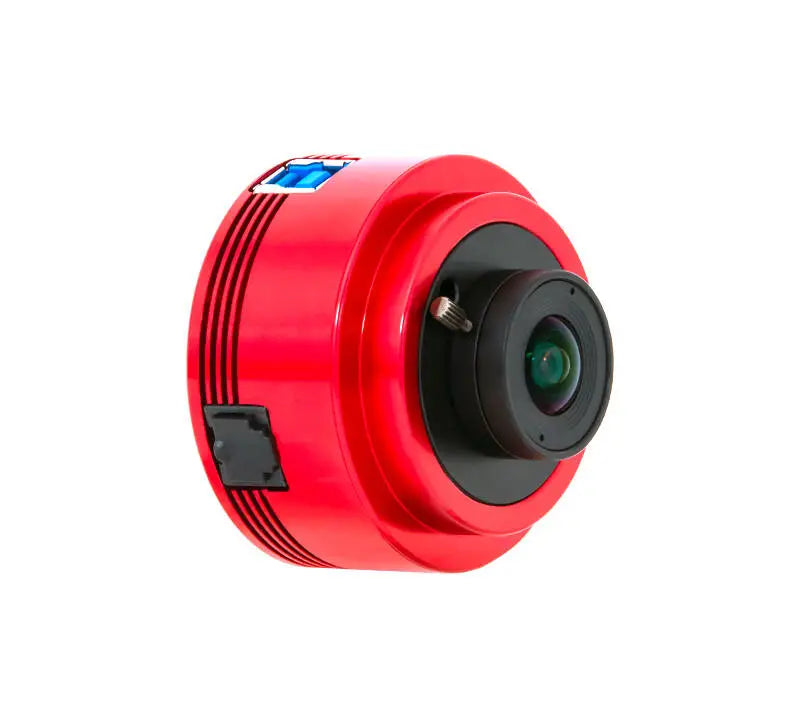

ZWO ASI462MM Monochrome Camera

The ZWO ASI462MM is a high-sensitivity monochrome camera, specially engineered for planetary and lunar astrophotography. With its cutting-edge Sony IMX462 sensor, this camera excels in capturing fine details and delivers exceptional performance in both near-infrared and visible light wavelengths. Compact yet powerful, the ASI462MM is perfect for astrophotographers seeking sharp, high-contrast images of celestial objects.

Key Features of the ZWO ASI462MM

Sony IMX462 Sensor: Optimized for near-infrared sensitivity, ideal for planetary and lunar imaging.
High Quantum Efficiency: Exceptional light sensitivity for capturing faint details with precision.
Low Read Noise: Reduces noise for crisp, clear imaging in any lighting conditions.
Compact Design: Lightweight and easy to integrate into your astrophotography setup.
USB 3.0 Connectivity: Fast data transfer for seamless operation.

Enhanced Performance in Near-Infrared

One of the standout features of the ZWO ASI462MM is its exceptional sensitivity to near-infrared light. This makes it the perfect choice for capturing surface details of planets, such as Jupiter’s cloud bands or Mars’ surface features, with extraordinary clarity and precision.

Specifications

Sensor: Sony IMX462 CMOS
Resolution: 1920 x 1080 (2.1 MP)
Pixel Size: 2.9 μm
Interface: USB 3.0
Weight: 120g
Applications: Planetary, lunar, and solar imaging

Compact, reliable, and highly sensitive, the ZWO ASI462MM is the ultimate tool for astrophotographers looking to capture stunning high-resolution images of the Moon, planets, and the Sun with precise monochrome detail.

STARVIS Technology

The STARVIS Technology brings better imaging performance to the camera in low light conditions.

DDR3 Memory

The camera is equipped with a USB 3.0 transmission interface and a built-in 256MB DDR3 memory to ensure stable and secure data transmission. Under long exposure, it effectively avoids frame dropping and greatly reduces the glow effect caused by slow reading speed.

Note that the DDR3 memory is NOT available in the first 200 early-bird cameras. It’s only available in the official version.

We do not provide DDR3 memory version replacement or upgrade for the early-bird batch.

USB 3.0 & ST4 Port

USB 3.0 Port: Provides 5Gb bandwidth to let the camera run at 136.1fps (10bit, high speed mode) or 63.9fps (12bit, normal mode) at full resolution (2Mega).

ST4 Port: Can be used to connect with auto guide port of mount for guiding.

ASI462MM vs ASI290MM

As the upgraded version of ASI290MM, ASI462MM has achieved great improvements regarding QE and readout noise.

Camera Performance

Low readout noise & high QE value

ASI462MM is integrated with HCG mode, which can effectively reduce readout noise at high gain and allow the camera to maintain the same high dynamic range as it does at low gain. At gain 80, the HCG mode is automatically turned on; the dynamic range reaches a level close to 12stops, and the readout noise can be as low as 0.47e.

QE value and readout noise are some of the most important specifications for astronomical cameras. High QE and low readout noise are essential to improve image SNR(Signal to Noise Ratio).
