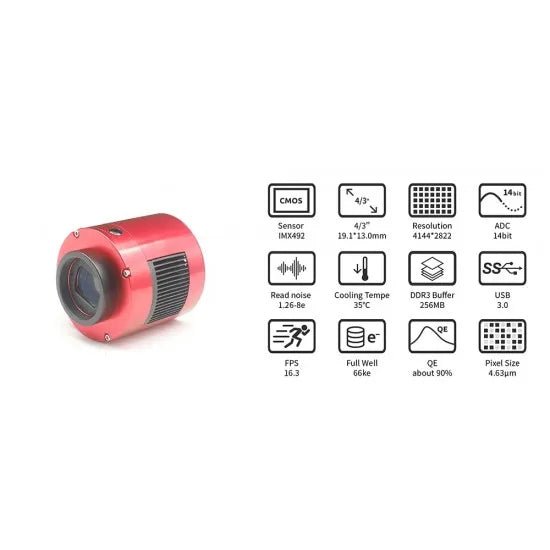

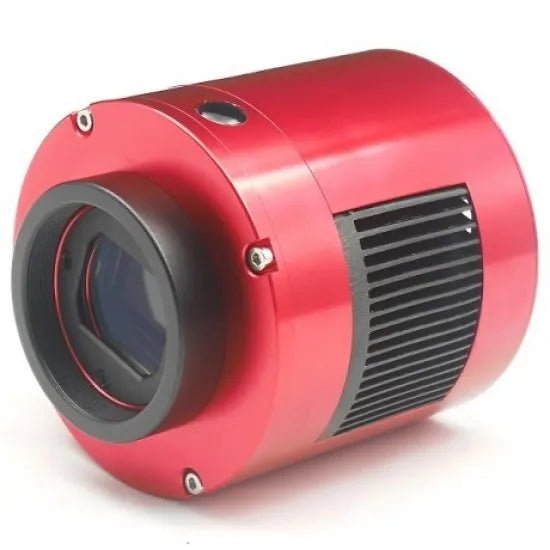

The ZWO ASI294MM PRO Mono Camera KIT with EFW 7*36mmkII, 36mm LRGB, 36mm HSO, and OAG is the ultimate astrophotography bundle. With the ASI294MM PRO camera, you can capture stunning deep-sky images with its 14-bit ADC and 4.63-micron pixel size.

The EFW736mmkII filter wheel makes filter changes easy, and the included 36mm LRGB and HSO filters ensure accurate color reproduction. The OAG allows for easy guiding, ensuring that your images are sharp and in focus.

Features:

• ASI294MM PRO camera with 14-bit ADC and 4.63-micron pixel size
• EFW7*36mmkII filter wheel for easy filter changes
• 36mm LRGB and HSO filters for accurate color reproduction
• OAG for easy guiding and sharp, in-focus images
• USB 3.0 interface for fast data transfer
• Supports ASCOM and INDI drivers for easy integration with popular astrophotography software
• Compact and lightweight design for easy installation and portability

The ZWO ASI294MM PRO Mono Camera KIT with EFW7*36mmkII, 36mm LRGB, 36mm HSO, and OAG is the perfect bundle for astrophotography enthusiasts looking to capture stunning deep-sky images. With its high-resolution sensor, accurate color reproduction, and easy guiding, you can take your astrophotography to the next level.

Similarly to the ZWO ASI1600MC camera, the ASi294MC camera would be an excellent choice for imaging deep sky objects, however it can do much more than that. With a max framerate of 16.3 FPS at full resolution this camera can also be used as an extremely high resolution planetary imager. If you cannot decide if your thing is deep sky or planetary imaging, go for this camera. It is also a much more affordable alternative to converting a dSLR.

You can even use it for guiding, although we understand that it is somewhat a waste of a talent to use it for guiding, but there might be special circumstances or setups when you would want to use it for guiding, so the opportunity is given.

There are three versions with this same large 4/3" sensor (23.2mm diagonal):

Colour cooled or uncooled and monochrome cooled. (we are not sure if there will be a non-cooled monochrome version yet)

This product listing is for the COOLED, MONOCHROME version of the ASI294. This cooled version is part of the PRO series of cooled ZWO cameras that features a DDR memory buffer.

If you go for this monochrome version, you'll also need a filter wheel and a set of L-RGB filters, plus H-alpha, OIII and SII filters, and maybe even H-beta filter as well for narrow band photography...

Please note that the sensor diagonal size is very close to the internal clear aperture of a 1.25" filter, therefore with extremely fast telescopes (small f-ratio) there might be vignetting. The limiting f-ratio will depend on the telescope and whether you will use any filters with this camera. Although it's a colour camera, good results can be achieved by using filters against light pollution and even H-alpha or other narrowband filters in certain setups.

Features of the NEW ZWO ASI294MM-PRO

Recommended for Deep Sky Imaging as well as the Sun, Moon and planets at very high resolution (although monochrome ASI174 would be better for the Sun)
(To image the Sun you'll have to use a proper front solar filter or Herschel wedge depending on your telescope. Please contact us if not sure!)

14bit ADC & 13 stops DR

ASI294 have 14bit ADC and it can achieve 13 stops dynamic range which is even better than ASI1600.

HCG Mode

HCG mode will be on when gain is higher than 120 (12db), read noise will drop below 2e but same dynamic range (13 stops).

Full well Capacity

63700e full well capacity, which is 3 times more than the ASI1600’s capacity. Even bright stars won’t saturate under long exposure.

This camera can achieve higher SNR (signal to noise ratio) with just one single exposure.

Reliable Mechanics

ASI294MC Pro has same mechanics as ASI1600 Pro. There are four screws that seal the sensor chamber. Our camera design has been extensively tested and is very stable.

Even when used in higher humidity environments, ASI294MC Pro will still works fine without dew problems.

High QE

The IMX294 sensor is a BSI (backside illuminated type) sensor, which has very high QE (quantum efficiency, which we estimate is over 75% peak).

Dark Current

The dark current of the ASI294 is slightly higher than the ASI1600, based on our test results.

Dark frame sample @ Highest dynamic range settings, 300s, -10degree, bin1.

Click here to download a sample ASI294MC Pro Dark Frame

USB 3.0 Port & USB2.0 HUB

USB 3.0 Port: Provide 5Gb bandwidth to make it possible for ASI294 Pro to run at 16 fps (14bit, normal mode) or 19 fps (10bit, high speed mode)  at full resolution(11.7Mega).

Recommended cooler power supply: 12V @ 3-5A (or more) DC adapter (2.1×5.5mm, center pole positive). Also suitable: DC battery with 9-15V.

Using a battery with 9-15V is also suitable for the cooler power supply.

USB 2.0 HUB: can connect with various accessories, such as filter wheel, guide camera and electronic focuser, so you can better manage your cables. The ASI294 Pro includes two short 0.5m USB 2.0 cables. The integrated USB 2.0 hub is powered by the external power source if you connect one.

Cooling System

The ZWO ASI294MC-PRO has a two-stage TEC cooling system that allows deep cooling to 35°C-40°C below ambient. You will need an external power supply to power the cooler. As user might want to power it in various ways (i.e. from a power tank, a Primaluce Lab Eagle 2 or mains, an AC-DC power adapter is not included in this package, however you can order one from us.

ASI294 VS ASI1600

The following table provides a comparison of the differences between the ASI294 and ASI1600. One cannot say which one is better as there are pros and contras for both; they are simply different. It would depend on the application, optical system used and the imaged object which camera would have to be favored.

COOLING

If you are having any trouble with the cooling, please check out the following page on the manufacturer's website before contacting us:

Click here: Why the cooler does not work?

FEATURES

Resolution: 11.7MPixel 4144 x 2822
Pixel Size: 4.63µm
Exposure range: 32µs - 2000s!
Read Noise: 1.2e  - 7.3e
Full Well: 63700e
ADC: 14 bit
Cooling: 40 - 45 degrees below ambient (obviously, only on the cooled version)
Standard Autoguider Port
Peak Quantum Efficiency: TBC
Full aluminum housing with standard 2" interface
M42X0.75 internal thread (T-thread)
Back Focus: 6.5mm (from camera front)
Back Focus: 17.5mm (from front of 11mm reverse thread adapter)

CONNECTIONS

1. M43-T2 adapter

2. EOS-T2 adapter

3. 2”Filter (optional)

4. 1.25” T-Mount

5. 1.25” Filter (optional)

6. M42-1.25” adapter (optional)

7. T2 extender 11mm

MECHANICAL DESIGN

WHAT'S IN THE BOX:

DOWNLOADS

On the included CD you'll find drivers and two software applications: Firecapture and SharpCap. These are both freeware and the latest versions can be downloaded from the developers' websites.
If you have any problem with installing any of the software from the CD, please download them from here:
Firecapture Beta Downloads
SharpCap Downloads
We'd recommend to always use the beta version of Firecapture, but reverse to the latest stable version if you experience problems.

TROUBLESHOOTING

Here you can download a pdf file that will guide you through ZWO ASI camera troubleshooting. Click here!

ALL SKY CAMERA

due to the large sensor size, the usual 150 degree wide lens IS NOT included as it is not compatible, but there might be some other compatible lenses that would work with this camera. If you know about such lens, please let us know, so that we can share it with other users as well.

Specifications of the ZWO ASI294MC Colour Camera

Camera technical details

Sensor: 4/3″ SONY IMX294 CMOS
Diagonal: 23.2mm
Resolution: 11.3Mega Pixels 4144 x 2822
Pixel Size: 4.63µm
Bayer Pattern: RGGB
Exposure Range: 32µs-2000s
ROI: Supported
ST4 Guider Port: Yes
Focus Distance to Sensor: 12.5mm
Shutter Type: Rolling Shutter
Protect window: AR coated window
Operating System Compatibility: Mac, Windows, Linux
Interface: USB3.0/USB2.0
Bit rate: 12bit output(12bit ADC)
Adaptor: 2″ / 1.25″ / M42X0.75
Dimension: φ62mm X 36mm
Weight: 120g or 4.2 ounces (without lens)
Working Temperature: -5°C—45°C
Storage Temperature: -20°C—60°C
Working Relative Humidity: 20%—80%
Storage Relative Humidity: 20%—95%
Max FPS at full resolution:
10Bit ADC
4144×2822 19fps
14bit ADC
4144×2822 16fps
More resolutions can be user defined

For full specification, driver installation tutorial (youtube video), basic usage information and recommended third party software please visit the manufacturer's website: ZWOptical

There is also a Yahoo Group where you can find lots of information about how other members use the ZWO cameras: Yahoo Group ZWO ASI Cameras

See an article in our blog about
How to deal with Newton’s rings in CMOS imaging?

User contributions

Courtesy of Graham Wilcock. Click on the image for the full image...

This image is the result of 3h of data capture on the evening of 29th November 2019.  ZWO ASI294MC Pro camera through a Teleskop-Service 8-inch Ritchey-Chretien reflector.
