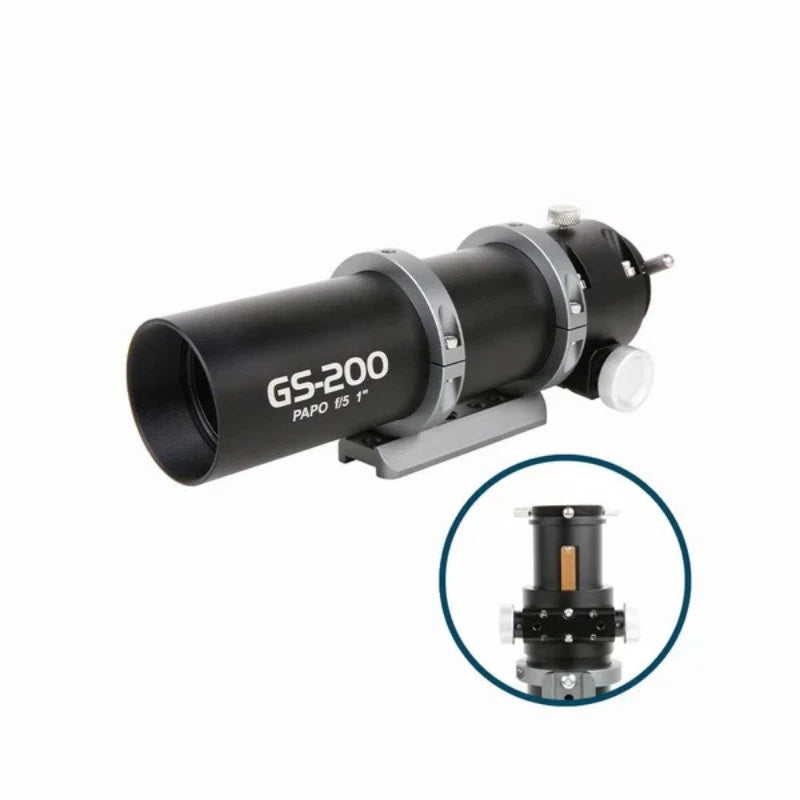

The GS-200 PAPO Apochromatic Guide Scope is a precision 200mm f/5 flat-field guiding solution designed for astrophotographers who require increased guiding accuracy and mechanical stability. Built around a self-flattening PAPO ED triplet optical system, it delivers sharp, well-corrected stars across the entire field — improving guide star detection and producing smoother mount corrections during long exposures.
True Apochromatic Triplet Performance
Unlike basic achromatic guide scopes that can suffer from chromatic aberration and edge distortion, the GS-200 uses a genuine ED triplet with integrated field correction. Chromatic aberration is tightly controlled and star shapes remain consistent across the usable field. The result is more accurate centroid calculation in guiding software such as PHD2 or NINA, leading to improved tracking precision.
The 200mm focal length provides greater guiding resolution than shorter guide scopes while maintaining a generous field of view. This makes it especially well suited to imaging telescopes in the 400–800mm focal length range.
Coatings & Internal Light Control
Broadband multi-layer anti-reflection coatings maximise light transmission, while precision-machined internal anti-reflection threads suppress stray light. This improves contrast and strengthens guide star signals, even under light-polluted conditions.
AC vs AR – Focuser Differences Explained Clearly
AC Version – Rackless (Crayford-Style) Focuser
The AC model uses a friction-based rackless focuser (FSB-125C). It is smooth, lightweight and ideal for standard guide cameras. This is the correct choice if you are using a compact mono or colour guide camera and focusing manually.
AR Version – Rack & Pinion (Geared) Focuser
The AR model uses a geared rack-and-pinion focuser (FSB-125R). It offers increased load capacity, improved mechanical stability and compatibility with motor focusers. This is the better choice if you plan to use heavier cooled cameras, motorised focusing systems, or want a more future-proof setup.
- Lightweight guide camera only → AC is sufficient
- Heavier camera or motor focuser → Choose AR
- Long-term imaging build → AR recommended
Optical Performance – Spot Diagram
The spot diagram demonstrates tight star point distribution across the field, confirming strong optical correction and reliable guiding performance.
Key Specifications
- 200mm focal length (f/5)
- PAPO ED triplet with integrated flat-field correction
- Broadband multi-layer anti-reflection coatings
- 1.25" interface with rear M42×0.75 thread
- Compatible with guide cameras up to 1" sensor size
- OTA weight: 0.68kg
- Available in AC (rackless) or AR (rack & pinion)
Ideal Use Case
The GS-200 offers an ideal balance between field width and guiding precision. It is particularly well suited to imaging telescopes between 400mm and 800mm focal length, delivering improved correction and mechanical stability compared to entry-level finder-style guide scopes.
Optically refined, mechanically robust and engineered for serious astrophotography, the GS-200 is a confident upgrade for imagers who demand accurate, repeatable guiding performance.
